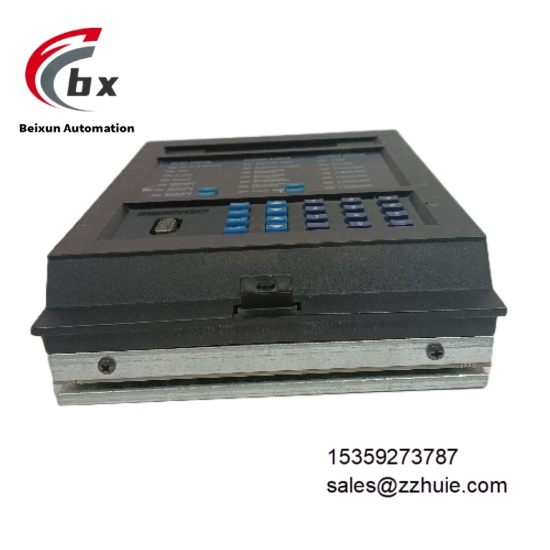

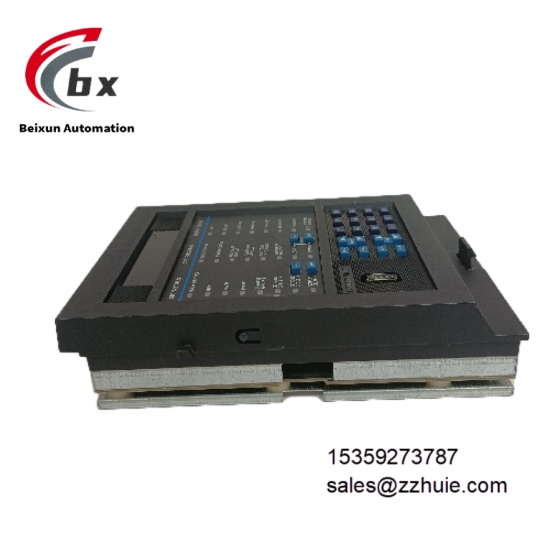

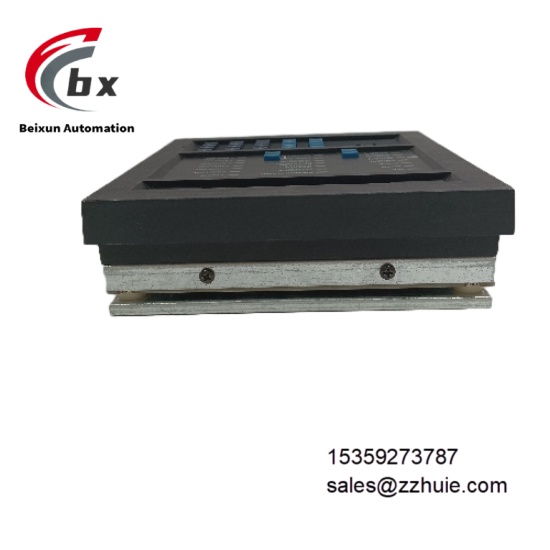

GE SR760 1219-0003 Microprocessor based intelligent relay
Specific Parameters
- Electrical Parameters
- Rated Current: 60A
- Voltage Range: 24V DC to 250V AC wide compatibility
- Delay Range: 0.1s to 10s continuously adjustable
- Reset Method: Manual trigger reset / automatic reset after fault elimination
- Fault Indication: Multi-color LED indicator (steady on for fault, off for normal)
- Environmental Parameters
- Operating Temperature: -20°C to 70°C (non-condensing environment)
- Storage Temperature: -40°C to 85°C
- EMC Immunity: Complies with ANSI C37 and NETA standard industrial protection requirements
- Mechanical Parameters
- Dimensions: 88mm×45mm×22mm (L×W×H)
- Weight: 0.2kg
- Mounting Method: 35mm DIN rail standard snap-on mounting
- Housing Material: Flame-retardant ABS engineering plastic (UL 94 V-0 grade)
Product Performance
The electrical parameter measurement accuracy reaches ±0.1% full scale, which can capture key data such as current and frequency in real time. The real-time tracking filter response time is ≤10ms, which can accurately adapt to 50Hz/60Hz and fluctuating frequency signal scenarios. The output waveform distortion of the built-in signal generator is ≤0.5%, supporting 1Hz-1kHz frequency adjustment. The fault judgment logic action time is ≤50ms, which can effectively cut off the fault circuit to avoid equipment damage. The module meets GE original factory tolerance standards, with Mean Time Between Failures (MTBF) ≥300,000 hours.
