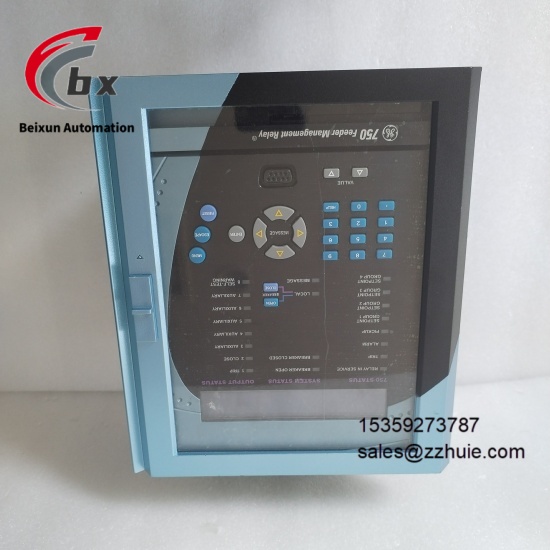

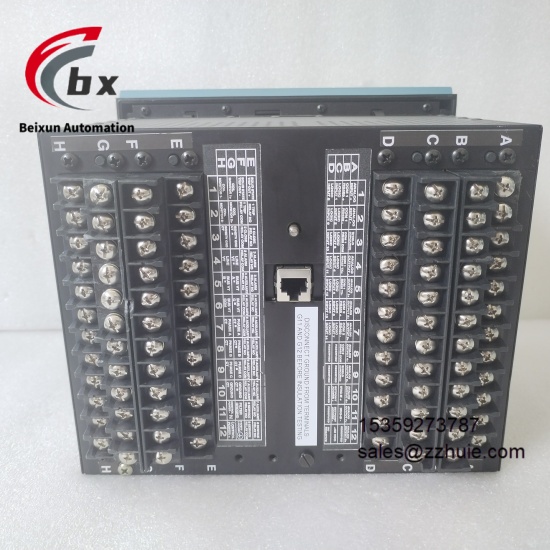

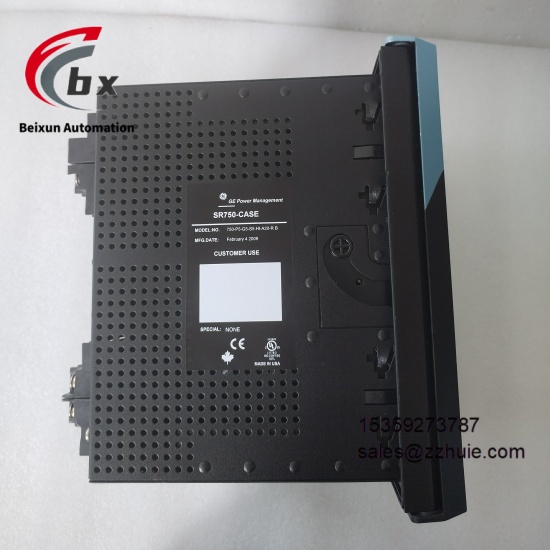

GE SR750-P5-G5-S5-HI-A20-R-T Safety controller/safety relay
Specific Parameters
Brand GE
Product Series SR750 Series Industrial Safety Controllers/Safety Relays
Product Type Industrial-grade Safety Controller
Model SR750-P5-G5-S5-HI-A20-R-T
Safety Integrity Level SIL 3 (Complies with IEC 61508)
Performance Level PLe (Complies with ISO 13849-1)
Number of Input Channels 5 safety input channels (P5), 5 general input channels (G5)
Number of Output Channels 5 safety output channels (S5), 20 auxiliary output channels (A20)
Safety Input Signal Types Dry contact, PNP/NPN (configurable)
General Input Signal Types Dry contact, PNP/NPN (configurable)
Safety Output Signal Types Relay output (force-guided type)
Auxiliary Output Signal Types Relay output
Operating Voltage DC 24V ±10%
Operating Current Typical 1.2A, Maximum 2.0A
Operating Temperature Range -20℃ – 60℃
Storage Temperature Range -40℃ – 85℃
Relative Humidity 5% – 95% Non-condensing
Protection Level IP20 (Panel Mount Level)
Electrical Isolation 2500V AC isolation between input/output/power supply (1 minute)
Installation Method Panel mounting (R), compatible with DIN rail mounting
Dimensions 140mm×180mm×80mm (L×W×H)
Weight Approximately 1.3kg
Power Consumption Typical 28.8W, Maximum 48W
Certification CE, UL, CSA, IEC 61508, ISO 13849-1
Diagnostic Functions Channel open/short circuit diagnosis, Power supply fault diagnosis, Output sticking diagnosis, Internal logic fault diagnosis
Additional Functions Manual reset function (T), High integrity input detection (HI)
Product Performance
With high safety level, dual certification of SIL 3 and PLe, it can be directly applied to safety interlock control in high-risk industrial scenarios, fully ensuring the safety of personnel and equipment
Integrates multiple types of input and output channels, distinguishing between safety channels and general channels, which can flexibly adapt to signal collection and control needs of different safety levels with extremely strong versatility
Safety output adopts force-guided relay to ensure no false output in fault state, ensuring the reliability of safety control at the hardware level
Equipped with complete full-link fault diagnosis function, real-time monitoring of channel status, power supply status and internal logic operation, fault information can be intuitively fed back through indicator lights or communication interfaces, facilitating operation and maintenance personnel to quickly locate problems
Wide temperature operating range covering -20℃ – 60℃, industrial-grade rugged housing design, can resist harsh conditions such as on-site electromagnetic interference and vibration, and operate stably for a long time in complex industrial environments
Supports flexible installation methods, adapts to different on-site installation layout needs, and simplifies the installation and commissioning process
Equipped with manual reset function, which can flexibly set reset logic according to on-site safety regulations, improving operational safety and convenience
Compatible with GE industrial control systems and mainstream third-party control systems, supporting multiple communication protocols, facilitating system integration and data interaction
High-reliability design, MTBF ≥4,000,000 hours, fully meeting the 24-hour uninterrupted safety protection needs of industrial sites
