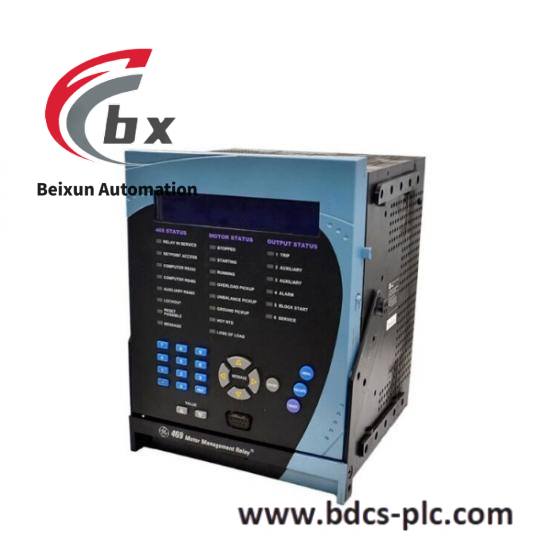

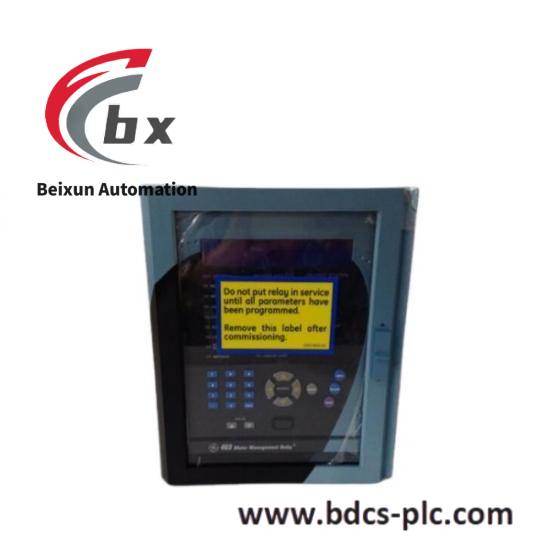

GE SR469-P5-HI-A20-E – Motor Management Relay for Medium to Large Motors
The GE SR469-P5-HI-A20-E is an advanced Motor Management Relay designed for efficient monitoring, control, and protection of medium and large motors in industrial settings. It offers robust protection and management capabilities, making it ideal for applications requiring high reliability and precision.
Humidity Withstand:Up to 90%, non-condensing
Manufacturer:GE Multilin
RTD Inputs:3-wire: 100 Ω Platinum, 100 Ω Nickel, 120 Ω Nickel, 10 Ω Copper
Series:469 Motor Management Relay
Phase Current:5 A
Phase CT Secondaries:5 CT Secondaries
Control Power:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz
Analog Outputs:Four (4) 4 to 20 mA analog outputs
Display:Enhanced display, larger LCD
Current:390/500 mA (MAX)
Line Voltage:90-300VDC, 70-265VAC
Enclosure Rating:20-X
Frequency:48-62Hz
Overvoltage Category:II
Insulation Voltage:300 V
Pollution Degree:2
The GE SR469-P5-HI-A20-E is a state-of-the-art Motor Management Relay that ensures the efficient operation and protection of medium and large motors. With its advanced monitoring capabilities, it can detect and respond to potential issues before they become critical. The relay features an enhanced front panel with a larger LCD display for easy access to real-time data. Additionally, the device includes multiple RTD inputs, allowing it to determine the actual temperature and hottest point for the motor system, ensuring optimal performance and longevity. The SR469-P5-HI-A20-E is designed for harsh environments, featuring conformal coating that protects against chemical exposure and other environmental factors. With its wide voltage range and frequency compatibility, this relay is suitable for a variety of industrial applications. It is built to withstand extreme temperatures, making it a reliable choice for demanding environments. The SR469-P5-HI-A20-E also includes four analog outputs and nine opto-isolated digital inputs, providing comprehensive monitoring and control capabilities. For added convenience, it comes equipped with software that simplifies setup and configuration. Overall, the GE SR469-P5-HI-A20-E is an indispensable tool for ensuring the safe and efficient operation of industrial motors.
