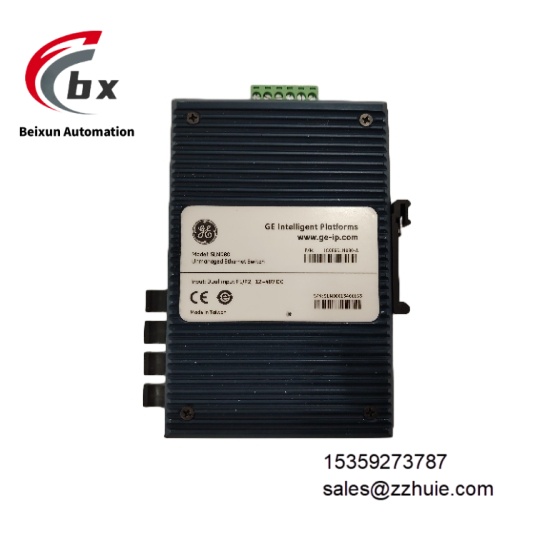

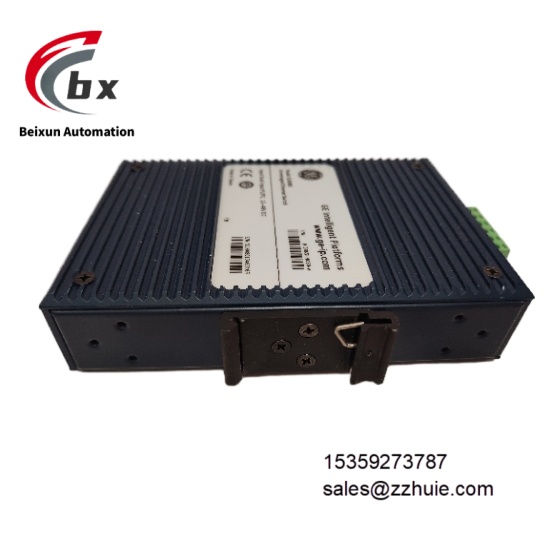

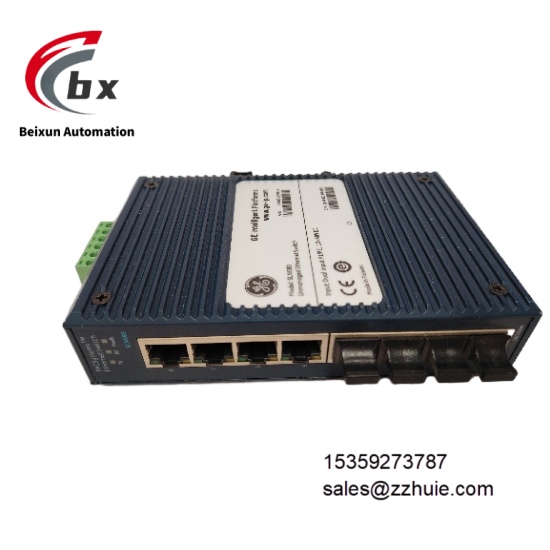

GE SLN080 IC086SLN080-A Ethernet switching module

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC ±10%, supporting 18-30V DC wide-range input
Communication Interfaces: 8×10/100 Base-T Ethernet ports (RJ45)
Communication Standards: Compliant with IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3x (flow control)
Data Forwarding Rate: 10/100Mbps auto-negotiation, store-and-forward switching method
Isolation Level: 2kV AC between Ethernet ports and system (1 minute)
Protection Functions: Overvoltage protection, short circuit protection, reverse polarity protection, ESD protection (±15kV contact discharge)
Power Consumption: ≤8W under normal operation, ≤3W under no-load standby
Environmental Parameters
Operating Temperature: -40°C to 70°C
Storage Temperature: -45°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 industrial grade standard
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Protection Class: IP20 (module itself)
Mechanical Parameters
Dimensions: 35mm (W) × 100mm (H) × 120mm (D)
Weight: Approximately 350g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Housing Material: Flame-retardant engineering plastic (UL 94 V-0 grade)
Heat Dissipation Method: Fanless natural heat dissipation, relying on housing conduction
Terminal Type: RJ45 communication terminals, spring-loaded crimp power terminals, compatible with 16-22 AWG wires

Product Performance

This module adopts a high-performance switching matrix, with 8-port parallel data processing capability, single-port data forwarding delay ≤50μs, supporting 64-1518 byte frame length transmission, and packet loss-free forwarding rate up to 148800pps (100Mbps). Integrated with fast network recovery technology, the link fault recovery time is <10ms, which can protect the continuity of key task data transmission.

The dual backplane bus design provides high-speed data interaction channels, with 100% compatibility with GE PAC systems and I/O modules, supporting the construction of star and chain topologies. The fanless design eliminates mechanical failure points, and combined with wide-temperature operation capability, it can operate stably in dusty, vibrating and strong electromagnetic interference environments, with equipment operation stability >99.99%.

Built-in port status monitoring function, it real-time feeds back link on-off and data transmission status, and intuitively displays port activity and module power supply status through LED indicators. The mean time between failures (MTBF) is ≥450,000 hours, meeting the needs of long-term continuous operation in industrial fields.
