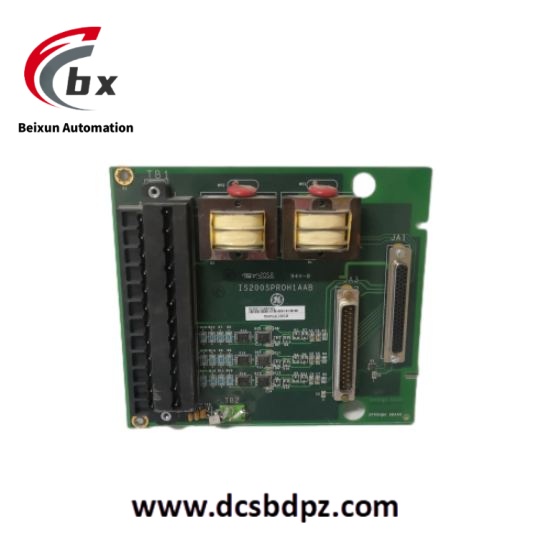

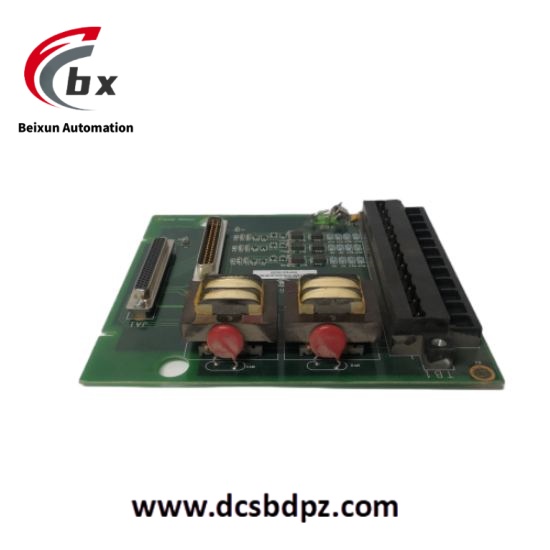

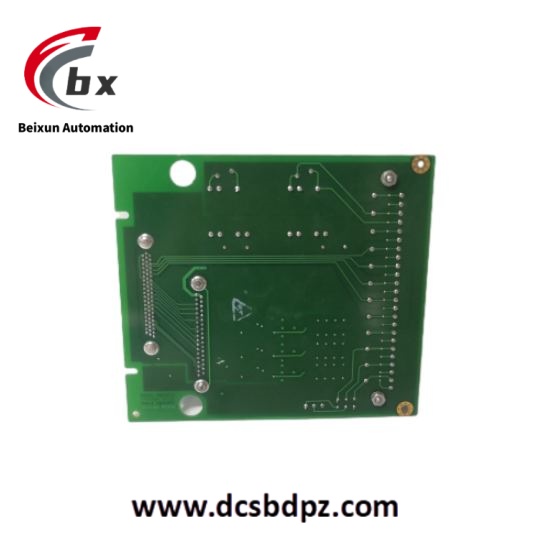

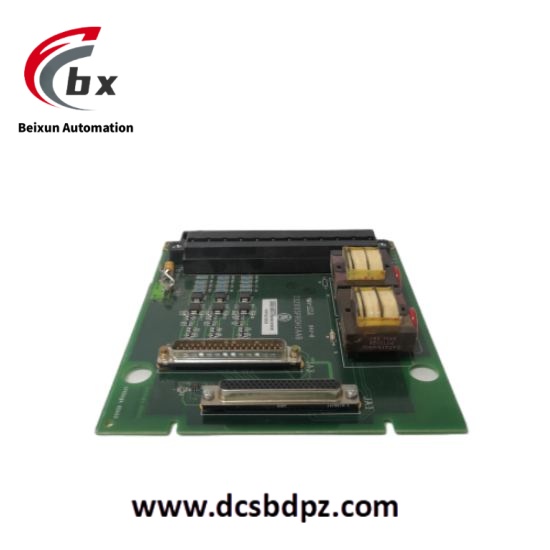

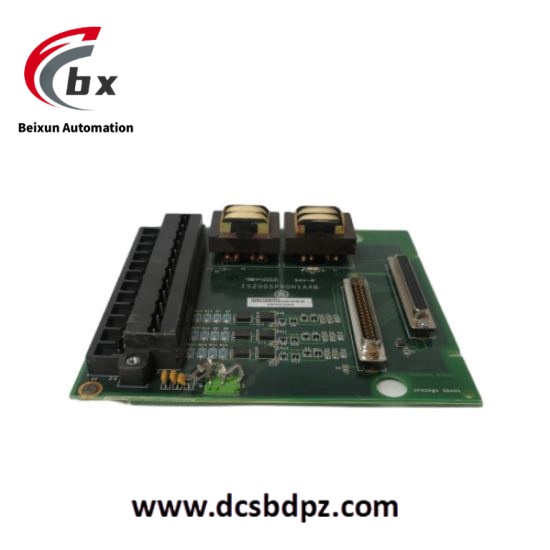

GE MRP663860 IS200SPROH1AAB Mark VIe series servo terminal board
Specific parameters
Size: A square printed circuit board measuring approximately 15cm x 15cm.
Weight: Approximately 1.2kg.
Power Connection: Three 28 VDC power supplies for R, S, and T board functions are connected to the J28 connector, and two non isolated LVDT excitation sources for S&T are connected to terminal blocks TB3 and TB4.
Input channel: If it is an analog voltage input channel module, it can be configured to operate from -5 to+5 VDC or -10 to+10 VDC. When configured from -5 volts to+5 volts, the resolution is 0.2 mV; when configured from -10 volts to+10 volts, the resolution is 0.4 mV, and the span accuracy is 0.05%.
Pulse rate: The pulse rate input is between 2-14 kHz.
Product Performance
Signal processing: With high-precision analog signal acquisition and conversion capabilities, it can ensure the accuracy and reliability of measurement data, and can quickly respond to changes in input signals. At the same time, it has built-in noise filtering function, which can reduce the impact of electromagnetic interference and other noise on the signal.
Connection capability: Use barrier type terminal blocks with screw connectors, two terminal blocks, six D-type vertical connectors, and two plug connectors, allowing servo current sources to interact with the board through two I/O channels. Each terminal block allows up to three LVDR/LVDT feedback sensor accessories, and sensor sensitivity can be changed through software settings.
Stability and reliability: Constructed with high-quality materials, capable of withstanding harsh conditions in industrial environments, designed for long-term stable operation to ensure reliable monitoring and control of turbine operation in industrial applications.
