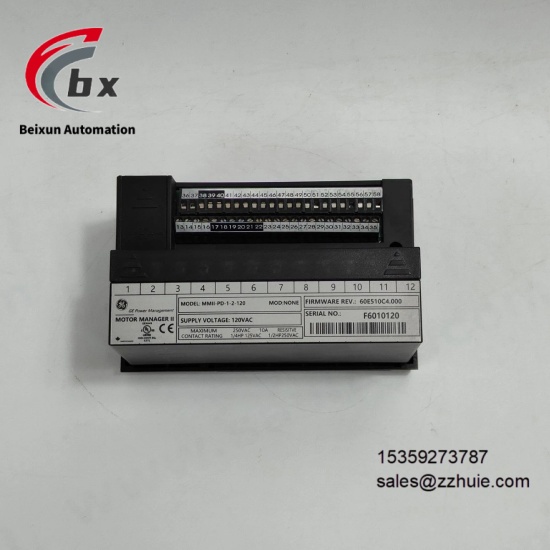

GE MMII-PD-1-2-120 Motor management controller

GE MMII-PD-1-2-120 Motor management controller

Specific Parameters

Brand GE (General Electric), Product Series GE Multilin MMII Series

Product Type Intelligent Motor Management Controller, Motor Protection System, GE Original Spare Part

Model GE MMII-PD-1-2-120

Country of Origin Canada (Produced by GE Multilin original factory)

Compatible Devices Various Industrial Motors, Motor Control Center (MCC), SCADA/DCS Systems

Rated Current 120A

Rated Voltage 120V AC, compatible with 400V/3-phase/50Hz industrial power supply system

Protection Functions Overcurrent, Overvoltage, Undervoltage, Overheating, Torque Overload, Phase Imbalance, Ground Fault Protection

Measurement Principle True RMS Measurement, Sampling Time 1.67ms

Communication Protocols Supports Modbus RTU, Profibus, Ethernet/IP Industrial Communication Protocols

Communication Baud Rate 1200bps-19200bps

Software Support Enervista MMII Configuration and Monitoring Software

Analog Input Range 4-20mA

Single Phase Accuracy ±2 Percentage Points

Input/Output 6 Fixed Inputs, 10 Programmable Inputs, 2 Contactor Outputs, 2 Programmable Outputs

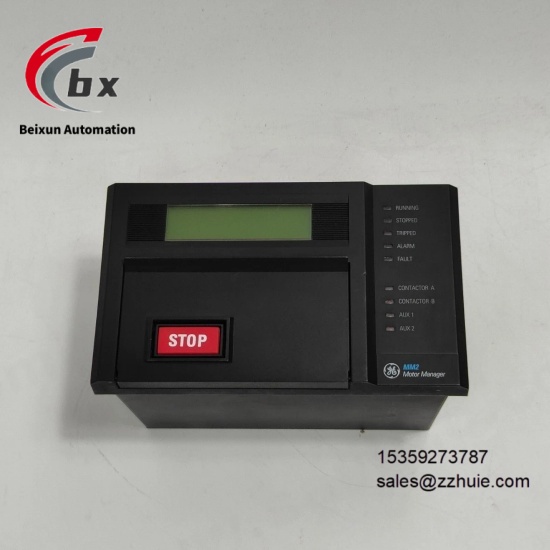

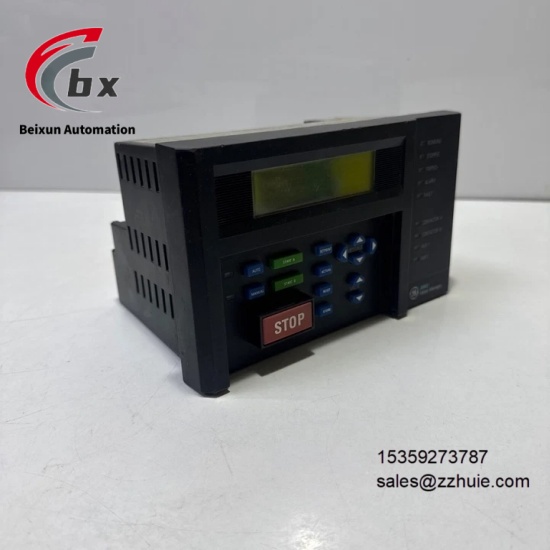

Display Function 2×16 Character LCD Display, 9 LED Status Indicators, Front Panel Keypad Operation

Operating Temperature Range 0℃ to 60℃

Protection Class IP53 (Complies with IEC 529 Standard)

Insulation Voltage 300V

Physical Dimensions Approximately 188mm×112mm×127mm (7.4”L×4.4”H×5”W)

Physical Weight 1.36kg (3lb)

Mounting Method Panel Mounting (PD Type)

Product Material Industrial-Grade Reinforced Housing, High-Temperature Resistant Insulation Material

Customizable No

Certification Standards Complies with CE, IEC Relevant Certification Standards

Warranty Period 12 Months

Product Performance

GE MMII-PD-1-2-120 is an original GE device with strong adaptability, which can be seamlessly integrated into various industrial motor control centers and SCADA/DCS systems, with convenient installation and maintenance. The product adopts a modular design, integrates multiple protection mechanisms, has high protection accuracy and fast response speed, can accurately capture motor operation abnormalities and trigger protection or early warning in a timely manner. The product has complete intelligent diagnosis and data acquisition functions, can record fault information and operating parameters, supports remote monitoring and diagnosis, has outstanding anti-electromagnetic interference ability, solid structure, can operate continuously and stably in harsh industrial environments, greatly reduces motor fault risk and maintenance costs, and improves motor operation efficiency and safety.
