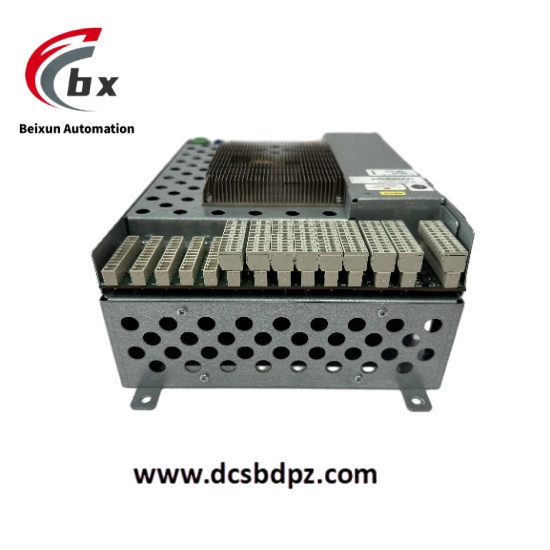

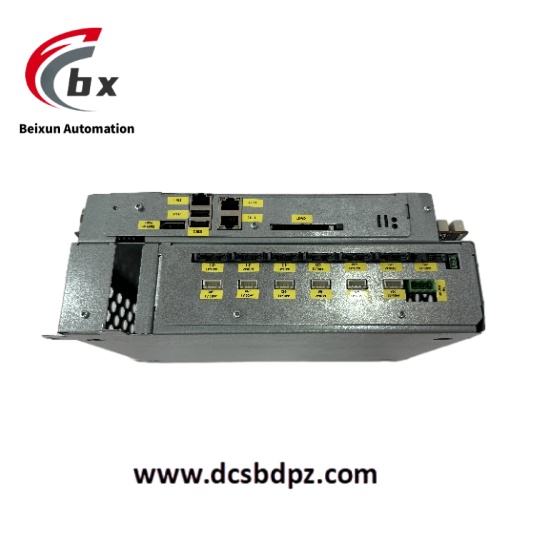

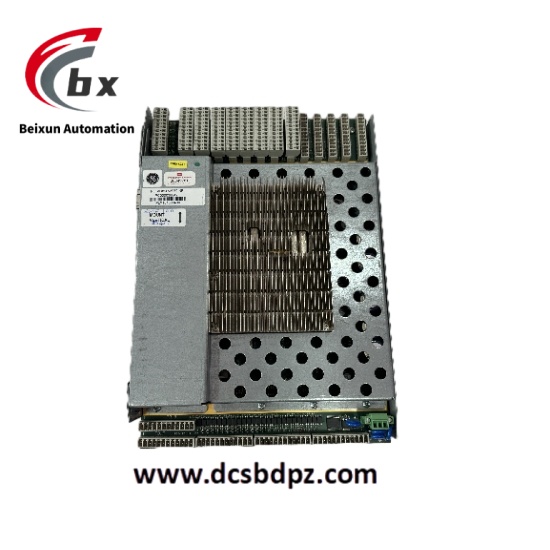

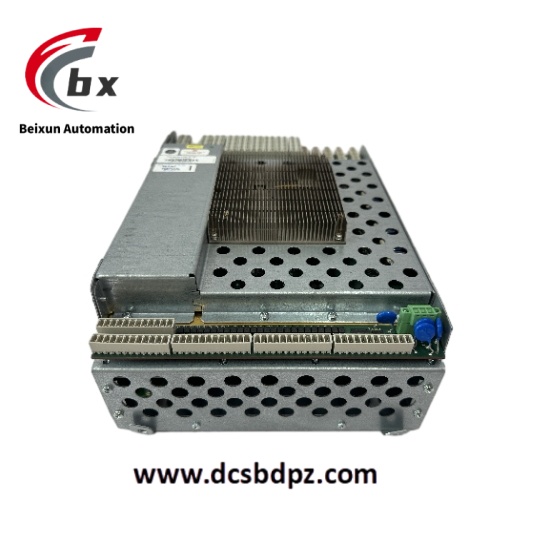

GE LV5F30-NF control module

Specific Parameters

Core Configuration Parameters
Processor: 32-bit industrial-grade microprocessor
Operation Speed: 100 MIPS
Memory Capacity: 64MB RAM, 128MB Flash
Control Cycle: Minimum 1ms
Input Channels: 16 digital inputs
Output Channels: 16 digital outputs
Electrical Parameters
Supply Voltage: 24VDC (±10%)
Power Consumption: ≤8W under normal operation; ≤12W at maximum load
Input Voltage Range: 18 – 30VDC
Output Current: Maximum 2A per channel
Isolation Level: 2.5kVAC between channels (1 minute)
Communication Interfaces: 1×Ethernet (10/100Base-TX), 1×RS485
Environmental & Mechanical Parameters
Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing)
Protection Class: IP20 (module itself)
Dimensions: 35mm (W) × 120mm (H) × 160mm (D)
Weight: Approximately 300g
Mounting Method: 35mm standard DIN rail mounting (compliant with EN 60715 standard)

Product Performance

LV5F30-NF adopts a 32-bit high-performance processor with an operation speed of 100 MIPS and a minimum control cycle of 1ms, enabling rapid response to dynamic changes in industrial sites and achieving high-precision control. The module features channel-level independent isolation design to effectively suppress electromagnetic interference, with a common mode rejection ratio ≥90dB, ensuring stable operation in high-interference industrial environments.

Supporting hot-swap operation, module replacement does not require stopping the system, significantly reducing downtime for maintenance and improving system availability. It integrates comprehensive self-diagnosis functions, which can real-time monitor power abnormalities, channel faults, communication interruptions and other statuses, and upload fault information through the communication interface, facilitating quick location and repair. It is seamlessly compatible with GE control systems, supporting industrial protocols such as MODBUS and PROFINET, with data transmission delay ≤50ms, ensuring real-time execution of control commands.，
