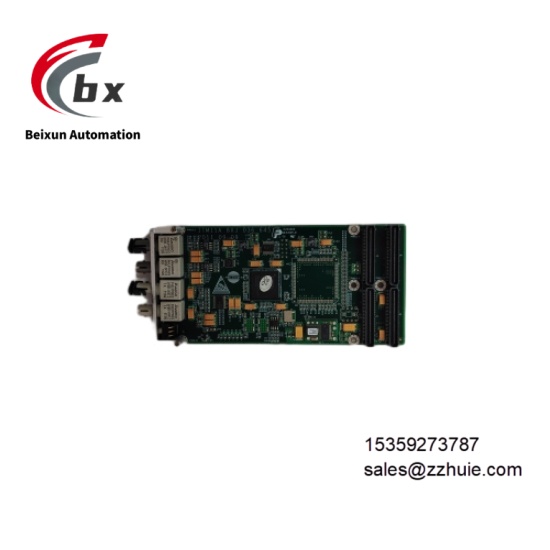

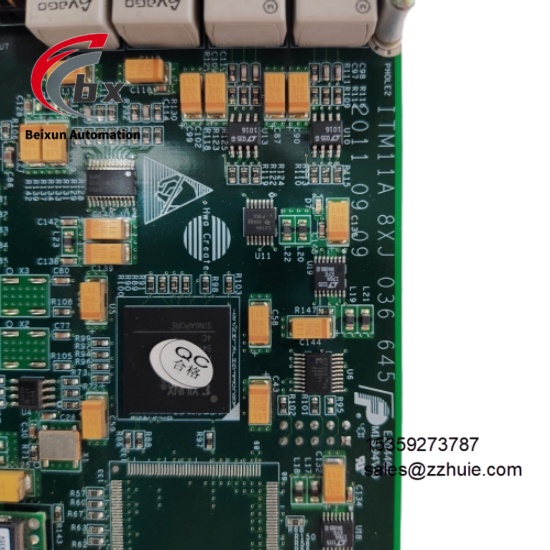

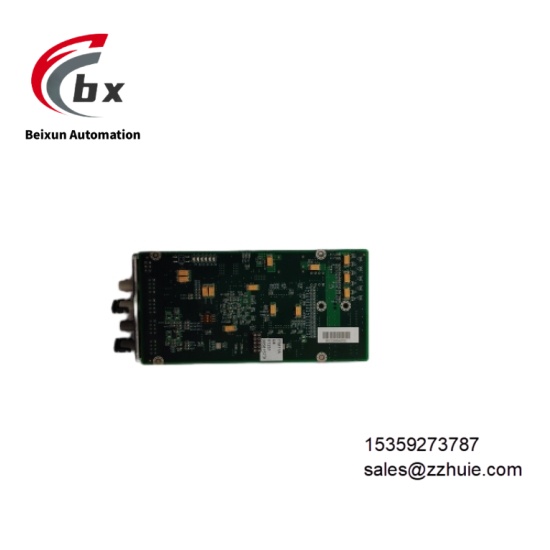

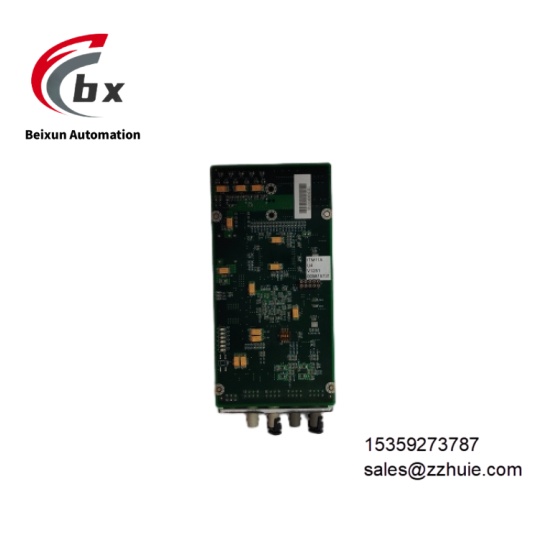

GE ITM11A8XJ036645 Automation control module
Specific Parameters
Electrical Parameters
Operating Voltage: 12VDC or 24VDCInput Voltage: 90V to 300V DCOutput Voltage: 100V to 240V ACI/O Points: 20 input channels, 16 output channelsMemory Capacity: 14.8K program memory, 32MB storage memoryOutput Resolution: 16-bitOutput Accuracy: ±0.1% of full scaleResponse Time: Less than 1msOutput Frequency Range: 0.5Hz to 200HzCommunication Protocols: Modbus RTU, CAN, Ethernet/IP, RS232C, RS422, RS485, DF1 Slave, J1939Communication Interfaces: Ethernet interface, serial communication interfaceOverload Capacity: 150% overload for 1 minuteOperating Efficiency: Exceeding 90%Protection Features: Overload protection, short circuit protection, power failure data protectionCertification Standards: Compliant with CE, UL, CSA standards
Mechanical Parameters
Overall Dimensions: 406mm×356mm×203mm (16×14×8 inches)Weight: Approximately 4.5kg (10 pounds)Mounting Method: Panel mounting, convex mounting, VESA bracket mountingHousing Material: High-strength industrial alloy, resistant to electromagnetic interference and mechanical impactConnection Method: Plug-in terminal blocks, standard communication interfaces, touch screen operation interfaceProtection Rating: IP65Status Indication: Power (green), operation (yellow), communication (blue), fault (red) LED indicatorsOperation Interface: High-resolution touch screen administrator interface
Environmental Parameters
Operating Temperature: -30℃ to 90℃, operation without derating over the entire temperature rangeStorage Temperature: -40℃ to 100℃, meeting extreme storage and transportation requirementsRelative Humidity: 5% to 95% (non-condensing), suitable for high-humidity industrial scenariosVibration Resistance: 3g acceleration at 3Hz-57Hz frequency range, 5g acceleration at 57Hz-500Hz frequency range (sine wave)Shock Resistance: 15g acceleration (half-sine wave, duration 11ms), withstanding installation and transportation shocksEMC Compliance: Meets industrial EMC standards, with strong resistance to external electromagnetic interference
Product Performance
Excellent control accuracy: 16-bit resolution combined with ±0.1% full-scale accuracy, control response less than 1msStrong communication compatibility: Supports more than 8 industrial communication protocols, seamlessly connecting with upper systems and on-site equipmentPowerful processing capability: Equipped with XScale chip, capable of efficiently processing large amounts of real-time data and complex control logicOutstanding environmental adaptability: IP65 protection rating combined with -30℃ to 90℃ wide temperature design, adapting to harsh industrial scenariosHigh operational reliability: Industrial-grade component selection, built-in power failure data backup function, Mean Time Between Failures (MTBF) exceeding 250,000 hoursConvenient operation and maintenance: Intuitive and easy-to-use touch screen visualization interface, supporting online firmware upgrade and remote maintenanceFlexible expansion: Fixed I/O configuration combined with multiple communication interfaces, adapting to different industrial control scenario requirementsExcellent energy efficiency: Operating efficiency exceeding 90%, low-power design suitable for long-term continuous operation
