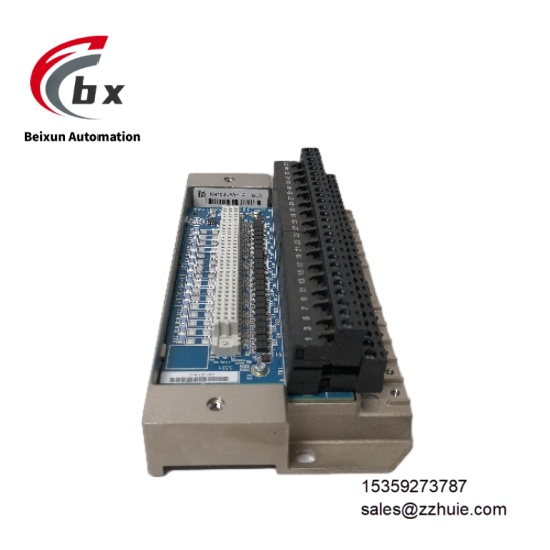

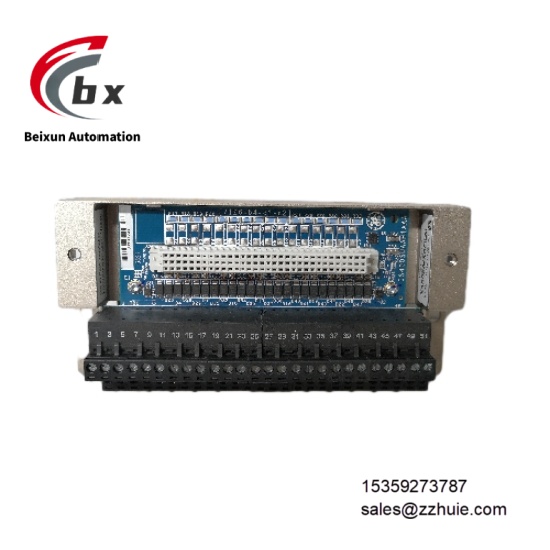

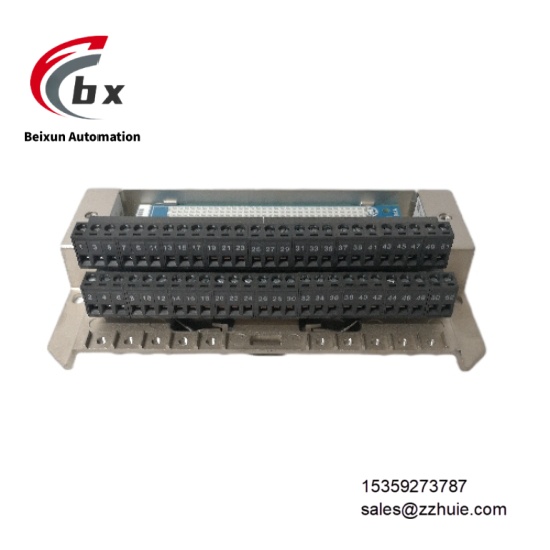

GE IS430SNUAH1A I/O module

GE IS430SNUAH1A I/O module

Specific Parameters

• Electrical ParametersOperating Voltage: 24V DC ±15% or 110-230V AC ±10%Power Consumption: ≤15W (typical)Input Channels: 8 analog inputs (4-20mA/±10V) + 16 digital inputs (24V DC)Output Channels: 8 analog outputs (4-20mA) + 16 digital outputs (relay contacts, 250V AC/5A)Communication Interfaces: 2 Ethernet (10/100Base-TX, supporting Modbus TCP, EtherNet/IP) + 1 RS485 (supporting Modbus RTU)Isolation: Channel-to-channel isolation voltage 2500V AC, power-signal isolation 1500V ACDiagnostic Functions: Channel fault detection, communication interruption alarm, power monitoring
• Environmental ParametersOperating Temperature: -30°C to +65°C (non-condensing)Storage Temperature: -40°C to +85°CRelative Humidity: 5% to 95% (non-condensing)Protection Rating: IP20 (front panel)Vibration Resistance: 10-500Hz, 1g acceleration (sine wave)Shock Resistance: 15g acceleration (11ms duration)
• Mechanical ParametersOverall Dimensions: 180mm×120mm×80mm (L×W×H)Housing Material: Flame-retardant engineering plastic (UL94 V-0 grade)Weight: Approximately 1.5kgMounting Method: 35mm standard DIN rail mounting or panel fixingWiring Method: Removable terminal block, supporting wire diameter 0.5-4mm²Status Indication: LED indicators (power, communication, channel fault)

Product Performance

The multi-channel integration capability is outstanding, with a single module capable of processing 8 analog and 16 digital signals simultaneously, reducing system hardware complexity and cabinet space occupancy. The module demonstrates strong communication protocol compatibility, supporting mainstream industrial protocols and seamlessly interfacing with GE Proficy, Rockwell RSLogix, and other control systems for real-time data interaction. Its intelligent and efficient diagnostic functions achieve single-channel-level fault localization, support remote parameter configuration and firmware upgrades, and improve maintenance efficiency by over 40%. The anti-interference performance is excellent, adopting differential signal transmission and optoelectronic isolation technology to maintain signal integrity in strong electromagnetic environments and ensure control accuracy. The intelligent diagnostic function enables single-channel fault localization, supports remote parameter configuration and firmware upgrades, and improves maintenance efficiency by over 40%.
