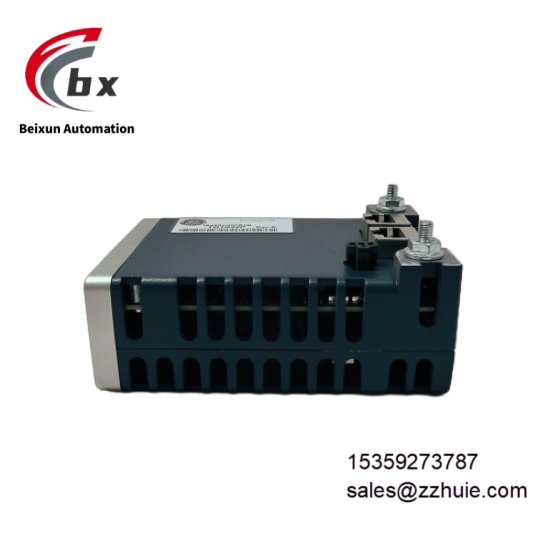

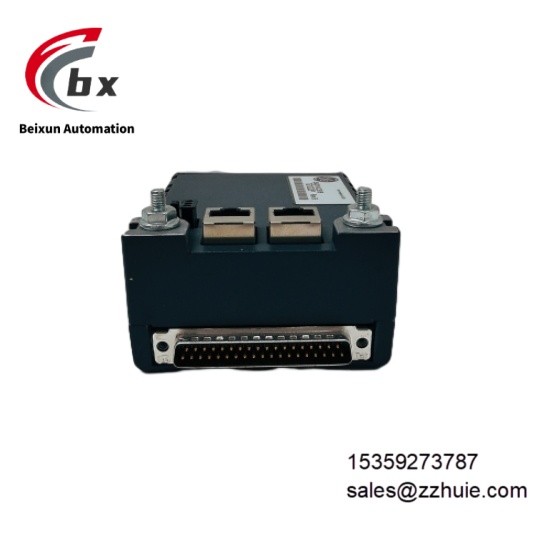

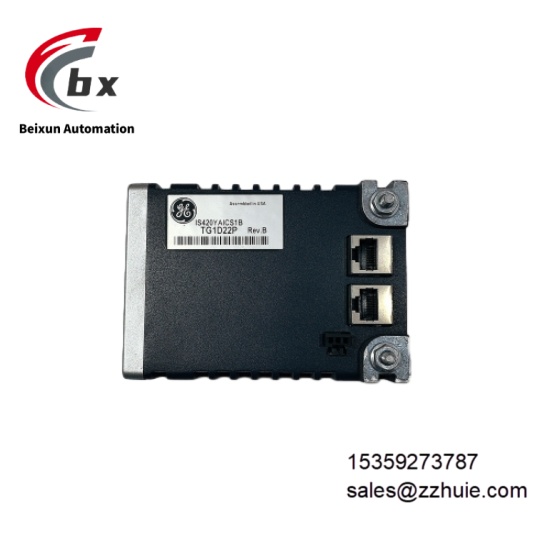

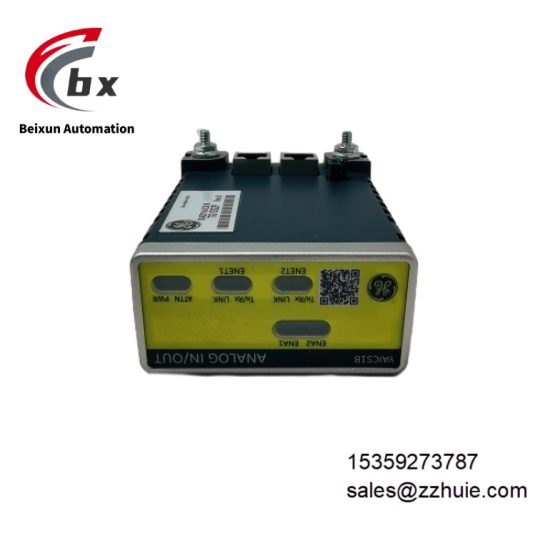

GE IS420YAICS1B Analog input module

GE IS420YAICS1B Analog input module

Specific Parameters

• Electrical ParametersSupply Voltage: 24V DC (industrial standard control power supply)Rated Power Consumption: 5.3W typicalInput Channels: 10 independent analog inputs, supporting channel function configurationSignal Types: 2 channels configurable as ±1mA/4-20mA current input; 8 channels configurable as ±5V/±10V voltage input or 4-20mA current inputConversion Resolution: 16-bit ADCDiagnostic Functions: Supports power-on self-test covering flash memory, RAM, processor board hardware and Ethernet ports; fault status can be uploaded in real timeFirmware Requirement: Compatible with firmware version V05.01 or higher
• Environmental ParametersOperating Temperature: -40°C to 70°C (non-condensing environment)Storage Temperature: -55°C to 85°C (industrial-grade storage standard)Relative Humidity: 5% to 95% (non-condensing, no persistent dew)Vibration Resistance: 10-500Hz frequency range, 1.5g acceleration (compliant with IEC 60068-2-6 standard)Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27 standard)
• Mechanical ParametersMounting Method: Compatible with Mark VIe control system rack installation, supporting module-level integrationHousing Material: Flame-retardant reinforced engineering plastic (UL 94 V-0 grade, chemical corrosion resistant)Connectors: Standard industrial-grade high-density pin connectors, adapted to dedicated terminal board interfacesIndicators: Power status, module operation and fault alarm indicators (red-green dual-color indication)

Product Performance

High signal acquisition accuracy: 16-bit ADC ensures linearity and stability of analog signal conversion, enabling accurate capture of subtle changes in process variables such as temperature, pressure and flow. Self-test functions cover core hardware and communication ports, automatically completing system initialization detection after power-on, continuously monitoring module status during operation, and uploading fault information to the control system in real time with diagnostic response time ≤100ms.

Excellent compatibility and scalability: Fully adapted to the Mark VIe/VIeS control system architecture, supporting consistent hardware configuration for each branch in TMR applications to ensure synchronous operation of the redundant system. Industrial-grade component selection and wide-temperature design guarantee equipment stability with Mean Time Between Failures (MTBF) ≥1.0×10⁶ hours, enabling continuous operation in high-temperature, strong electromagnetic interference turbine control environments.

Fast communication response: High-speed data interaction with terminal boards and main control units via Ethernet interface, with signal transmission delay ≤20ms, meeting the signal synchronization requirements of real-time control scenarios.
