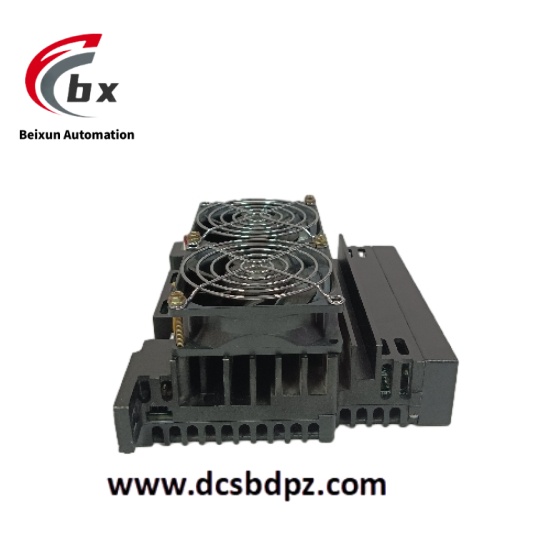

GE IS420UCSBH3A Controller module
GE IS420UCSBH3A is a UCSB (Universal Control System Block) controller module in the GE Mark VIe series control system. As a computer that runs control applications independently, it is one of the core components of the entire control system. This module is mainly used to manage the control logic of equipment such as gas turbines and steam turbines, realizing industrial automation control. It communicates with I/O packs through the on - board I/O network (IONet). Unlike traditional controllers, it does not host any application I/O. All I/O networks are connected to each controller, providing them with all input data. The hardware and software architecture ensures that no single point of application input is lost when the controller is powered down for maintenance or repair. The module is pre - installed with application - specific software and can run ladder diagrams or function blocks. Minor changes to the control software can be made online without restarting the system.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
GE IS420UCSBH3A Controller module
Specific Parameters
- Processor: 1200 MHz EP80579 Inb microprocessor
- Memory: 1 GB RAM, 2 GB flash memory
- Operating System: QNX Neutrino real – time operating system
- Input Voltage: 24/28 VDC
- Operating Temperature Range: – 22°C to + 149°C
- Dimensions: H 6.4 inches x W 8.1 inches x D 1.4 inches
- Weight: Approximately 2.9 pounds (1.3 kilograms)
- Certification: Complies with SIL 2 and SIL 3 safety certifications
- Communication Interfaces: Equipped with multiple Ethernet ports (for redundant networks), supports communication with I/O modules, operator workstations (HMI), and other UCS; has 2 redundant Ethernet ports (RJ45) and multiple internal high – speed communication channels
- Supported Protocols: Modbus TCP/IP, Ethernet/IP, GE proprietary protocols, etc.
- Installation Method: Installed on GE Mark VIe control racks (Racks)
- Redundancy Support: Supports controller redundancy configuration (primary/standby UCSB control modules)

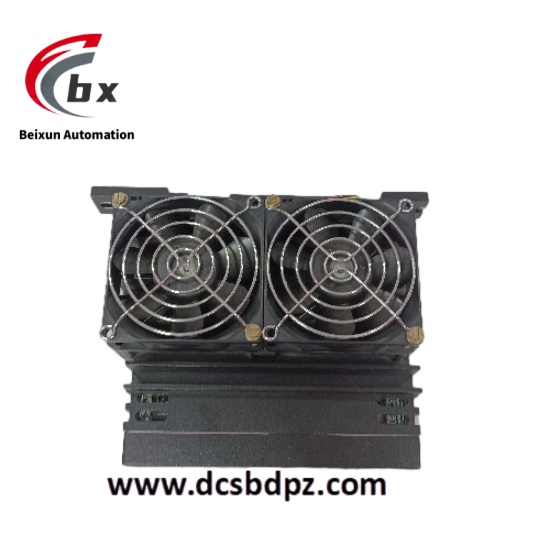

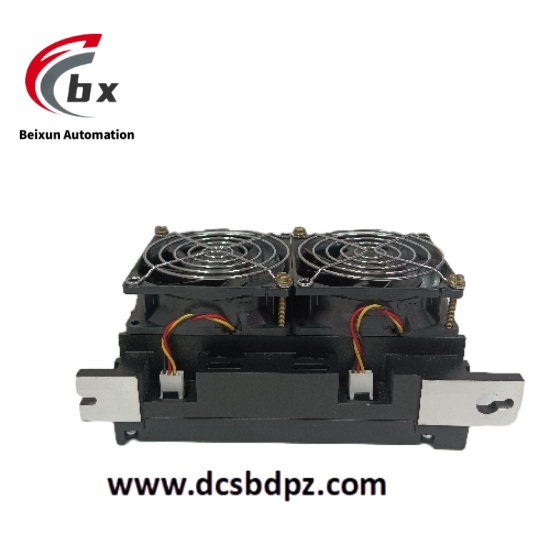

- Cooling: Some models are equipped with dual redundant fans, and some are fan – less designs
- Power Supply: Built – in power supply, no external jumper settings or batteries are required
- Wiring Specification: Supports wire sizes from 28 to 16 awg
Product Performance
- High – Performance Computing: Equipped with a 1200 MHz EP80579 Inb microprocessor, it can achieve high – speed and reliable multitasking, ensuring the efficient execution of real – time control and data processing tasks, and meeting the application scenarios with high requirements for control response speed.
- Stable and Reliable Operation: Complies with SIL 2 and SIL 3 safety certifications, ensuring operation safety and reliability; has a wide operating temperature range, suitable for harsh industrial environments; adopts a fan – less design (some models are equipped with dual redundant fans), reducing maintenance requirements and ensuring long – term stable operation.
- Convenient Installation and Maintenance: Built – in power supply, no external jumper settings or batteries are required, simplifying the installation process; supports panel installation, can be directly installed on the metal plate of the control panel, and adopts a vertical air – flow cooling design; the front panel is equipped with LED indicators for power, startup, online, and diagnosis, facilitating quick fault location and troubleshooting; modular design makes replacement and repair more convenient.

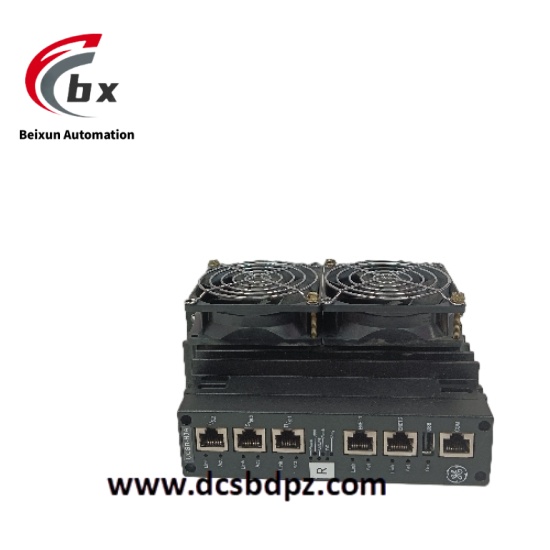

- Powerful Communication Capability: Equipped with multiple Ethernet ports to form a redundant network, with dual redundant Ethernet ports (ENET1 and ENET2) built – in, supports multiple protocols such as Modbus TCP/IP and Ethernet/IP, enabling high – speed data communication, facilitating communication with I/O modules, operator workstations (HMI), and other UCS, and building a complex industrial automation control network.
- Precise Clock Synchronization: Uses the IEEE 1588 protocol to synchronize the clocks of I/O components and controllers within 100 microseconds through r, s, and t IONets, ensuring precise coordination of devices within the system in terms of time.
