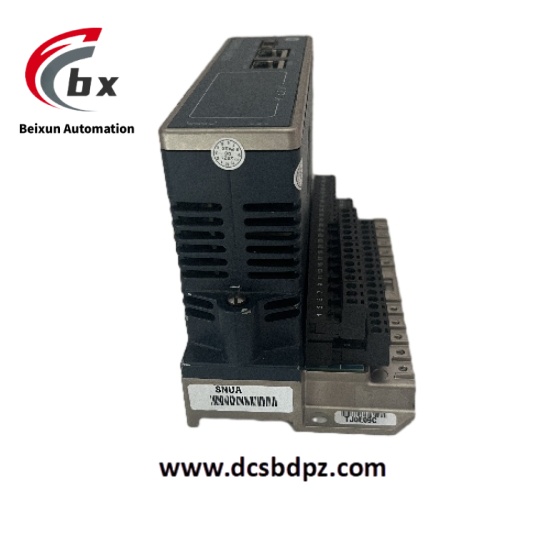

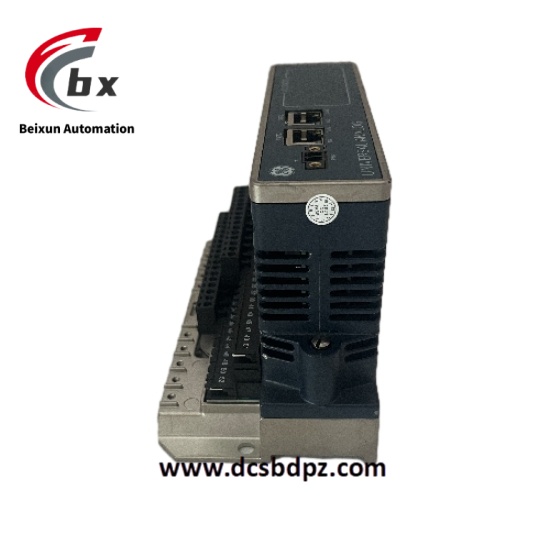

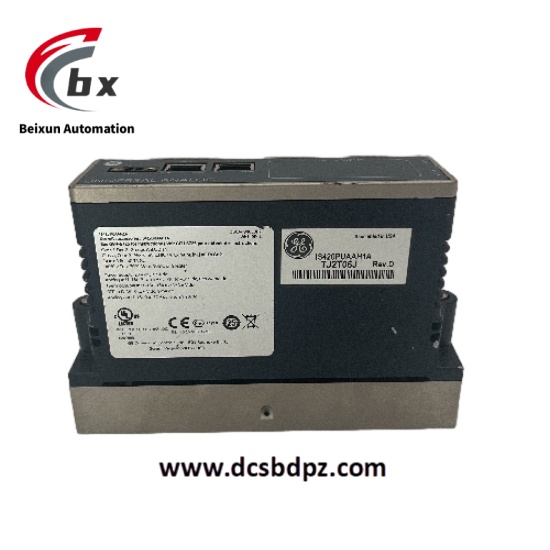

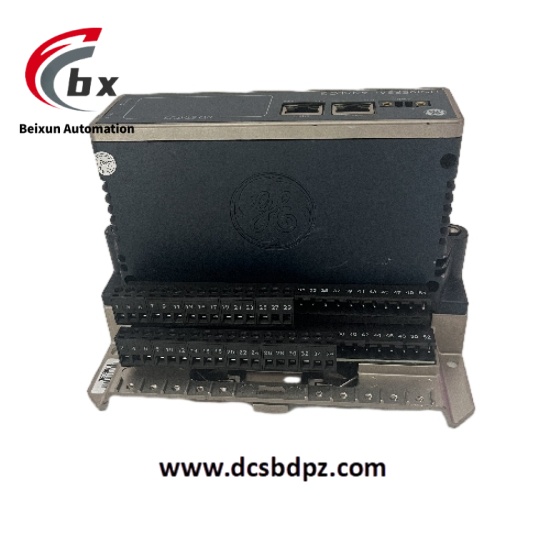

GE IS420PUAAH1A Analog input module

Specific Parameters

Power Supply Parameters

Supply Voltage: 24V DC (±10%)

Rated Power Consumption: ≤3.2W

Power Isolation: 2500Vrms (for 1 minute continuously, power and signal terminals)

Input Parameters

Number of Input Channels: 8 single-ended/4 differential (configurable)

Supported Signal Types: 4-20mA current signal, 0-10V voltage signal

Resolution: 16-bit (A/D conversion)

Acquisition Accuracy: ±0.05%FS (at 25°C ambient temperature, full-scale range)

Input Impedance: ≥10MΩ (voltage signal), 250Ω (current signal)

Signal Response Time: ≤10ms (from signal input to data update)

Isolation Parameters

Channel-to-Channel Isolation: 1500Vrms (for 1 minute continuously)

Signal-to-Ground Isolation: 2500Vrms (for 1 minute continuously)

Environmental Parameters

Operating Temperature Range: -40°C to +70°C

Storage Temperature Range: -40°C to +85°C

Relative Humidity: 5% to 95% (non-condensing, when temperature ≤40°C)

Protection Class: IP20 (module body)

Physical Parameters

Mounting Type: 35mm standard DIN rail mounting

Dimensions: 128mm×90mm×45mm

Weight: Approximately 0.4kg

Connector Type: Plug-in Phoenix terminal (2.54mm pitch, anti-reverse insertion design)

Product Performance

High-Precision Signal Acquisition: 16-bit A/D conversion resolution combined with ±0.05%FS acquisition accuracy can accurately capture small changes in analog signals, meeting the high-precision requirements of industrial processes for parameter monitoring (such as reactor temperature fluctuations, pipeline pressure fine-tuning).
Flexible Channel Configuration: Supports switching between 8 single-ended or 4 differential inputs, adapting to signal types (current/voltage) and wiring methods of different on-site sensors, reducing module selection and system wiring complexity.
Strong Anti-Interference Ability: Dual isolation (2500Vrms) for power supply and signal terminals + channel-to-channel isolation (1500Vrms), combined with built-in digital filtering algorithms, can resist electromagnetic radiation and surge interference in industrial fields, with signal acquisition stability reaching 99.99%.
Stable Operation in Wide Temperature Range: Passes full temperature range testing from -40°C to +70°C, no start-up delay in low-temperature environments, and parameter drift ≤0.1%FS during 72-hour continuous operation at high temperature (+70°C), adapting to harsh scenarios such as outdoor and high-temperature workshops.
Intelligent Fault Diagnosis: Real-time monitors channel open circuit, short circuit, overvoltage, and power supply abnormalities, feeds back fault location and type through module LED indicators and Mark VIe system alarm signals, with fault location accuracy reaching single-channel level, reducing operation and maintenance troubleshooting time.
