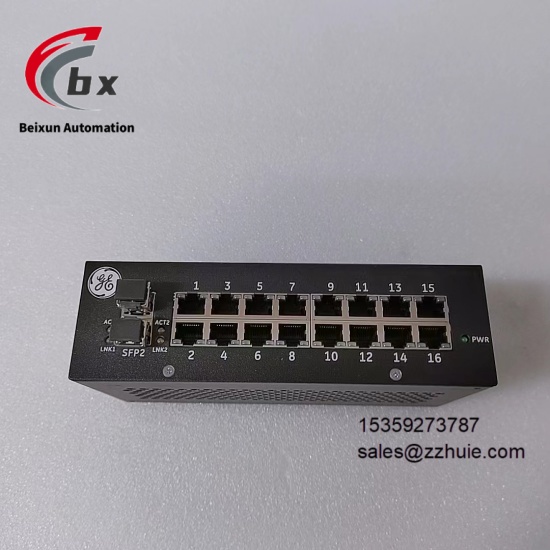

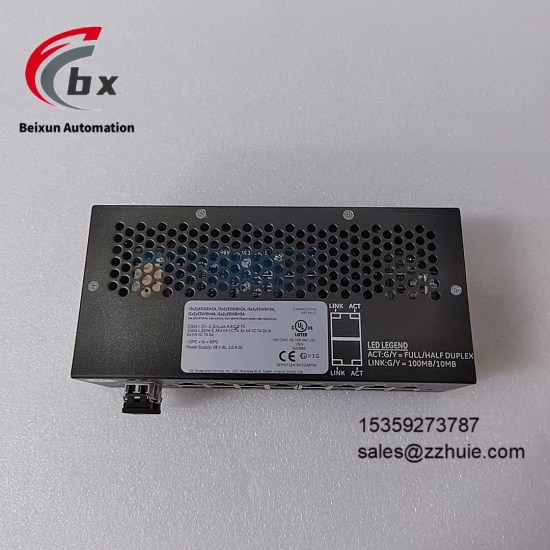

GE IS420ESWBH2A Ethernet switch module

Specific Parameters

Brand GE

Product Series Mark VIe Series Industrial Ethernet Switch Modules

Product Type Industrial-grade Ethernet Switch Module

Model IS420ESWBH2A

Number of Ports 8 10/100Mbps adaptive Ethernet electrical ports

Supported Network Protocols IEEE 802.3, IEEE 802.3u, Ethernet/IP, Modbus TCP

Network Redundancy Supports MRP, RSTP redundancy protocols, redundancy switching time ≤50ms

Operating Voltage DC 24V ±10% (Powered by System Rack)

Operating Temperature Range 0℃ – 65℃

Storage Temperature Range -40℃ – 85℃

Relative Humidity 5% – 95% Non-condensing

Protection Level IP20 (Module-level)

Electrical Isolation 2500V AC isolation between ports and between port and backplane (1 minute)

Installation Method GE Mark VIe Series Standard Rack Slot Mounting

Dimensions 102mm×165mm×95mm (L×W×H)

Weight Approximately 0.9kg

Power Consumption Typical 7W, Maximum 10W

Certification CE, UL, CSA, IEC 61158, IEEE 802.3

Diagnostic Functions Port link fault diagnosis, Network traffic monitoring, Power supply fault monitoring, Module communication fault diagnosis

Protection Functions Port overvoltage protection (±30V DC), Surge protection (±2kV)

Product Performance

Equipped with 8 10/100Mbps adaptive Ethernet electrical ports, supporting automatic negotiation of speed and duplex mode, can flexibly adapt to industrial Ethernet equipment of different speeds with extremely strong network compatibility

Supports multiple network redundancy protocols such as MRP and RSTP, with redundancy switching time ≤50ms, which can build a high-reliability industrial communication network, avoid network interruption caused by single-point faults, and ensure the continuity of data transmission

Compatible with mainstream industrial Ethernet protocols such as Ethernet/IP and Modbus TCP, can realize seamless data interaction with Mark VIe control systems and third-party industrial equipment, simplifying the network integration process

High electrical isolation design between ports and between ports and backplane, combined with industrial-grade enhanced anti-electromagnetic interference circuit, can effectively resist strong on-site electromagnetic radiation and surge impact, ensuring the stability of network communication

Equipped with complete network diagnostic functions, real-time monitoring of port link status, network traffic and module operation, fault information can be uploaded to the control system in real time, facilitating operation and maintenance personnel to quickly locate and handle network faults

Ports integrate overvoltage and surge protection functions, which can effectively prevent damage to module ports caused by on-site power grid fluctuations and electrostatic discharge, extending the service life of the module

Wide operating temperature range of 0℃ – 65℃, industrial-grade rugged packaging design, can operate stably for a long time in complex industrial sites with high temperature, high humidity and multiple interferences, with strong environmental adaptability

Deeply compatible with the GE Mark VIe series control system, plug-and-play, supporting online network configuration and status monitoring, simplifying the system integration and later maintenance process

High-reliability design, MTBF ≥4,000,000 hours, fully meeting the rigorous requirements of 24-hour uninterrupted network communication in industrial sites
