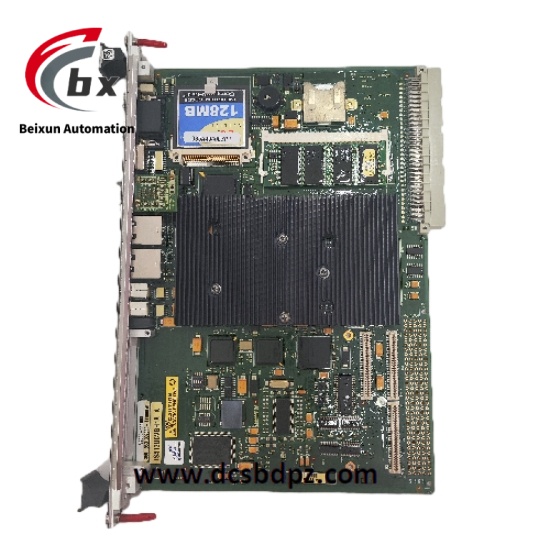

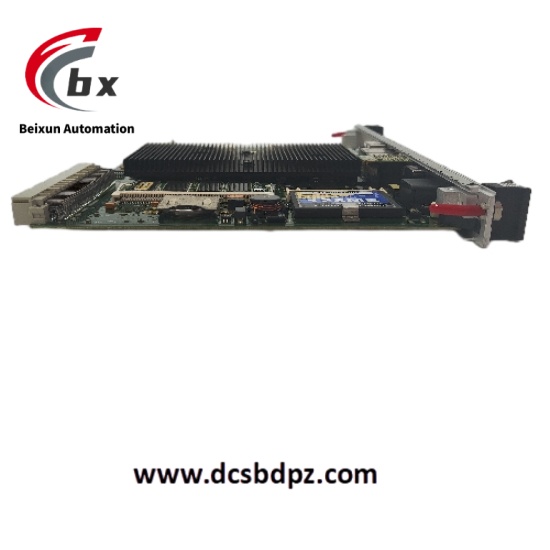

GE IS415UCVGH1A V7666-111000 Input/Output (I/O) Module

GE IS415UCVGH1A V7666-111000 Input/Output (I/O) Module

Specific Parameters

• Power Supply Parameters
  Supply Voltage: 24V DC (±10%)
  Rated Power Consumption: ≤3.2W
  Power Isolation: 1500V AC (for 1 minute continuously)
• Input Parameters
  Analog Input Channels: 8 channels
  Analog Input Types: 4-20mA, 0-10V DC (configurable)
  Analog Resolution: 16-bit
  Digital Input Channels: 16 channels
  Digital Input Voltage: 18-30V DC
  Input Response Time: ≤5ms
• Output Parameters
  Analog Output Channels: 4 channels
  Analog Output Range: 4-20mA, 0-10V DC (configurable)
  Digital Output Channels: 8 channels
  Digital Output Type: Transistor output
  Digital Maximum Load Current: 2A@24V DC
• Communication Parameters
  Communication Interface: EtherNet/IP
  Data Transmission Rate: 100Mbps (full-duplex)
  Supported Protocols: Modbus TCP, GE Profinet
• Environmental Parameters
  Operating Temperature Range: -40°C to +70°C
  Storage Temperature Range: -40°C to +85°C
  Relative Humidity: 5% to 95% (non-condensing)
  Protection Class: IP20
• Physical Parameters
  Mounting Type: 35mm standard DIN rail mounting
  Dimensions: 120mm×85mm×40mm
  Weight: Approximately 0.3kg

Product Performance

• Multi-Signal Compatibility：Supports both analog and digital input/output simultaneously, no additional modules required to adapt to temperature, pressure sensors, relays, solenoid valves and other actuators, simplifying system configuration.
• High Data Accuracy：16-bit analog input resolution combined with digital filtering algorithms, achieving a collection accuracy of ±0.05%FS (at 25°C), ensuring the accuracy of process data.
• Strong Anti-Interference Ability：Power supply and signal channels adopt optoelectronic isolation design, combined with an electromagnetic shielding shell, which can resist surge and electromagnetic radiation interference in industrial sites, ensuring stable signal transmission.
• Wide Temperature Adaptability：Passes full temperature range testing from -40°C to +70°C, and maintains stable parameters in extreme low-temperature and high-temperature environments, meeting the needs of outdoor and harsh industrial scenarios.
• Fast Communication Response：100Mbps full-duplex communication rate, with transmission delay of control commands and on-site data ≤10ms, ensuring the real-time performance of the control system.
