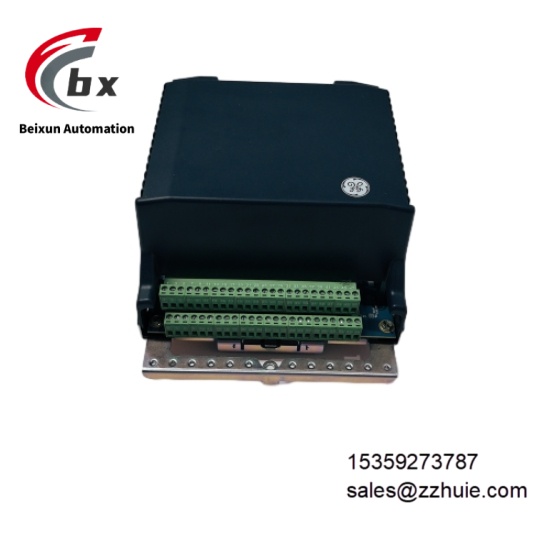

GE IS410SRLYS2A Relay output module

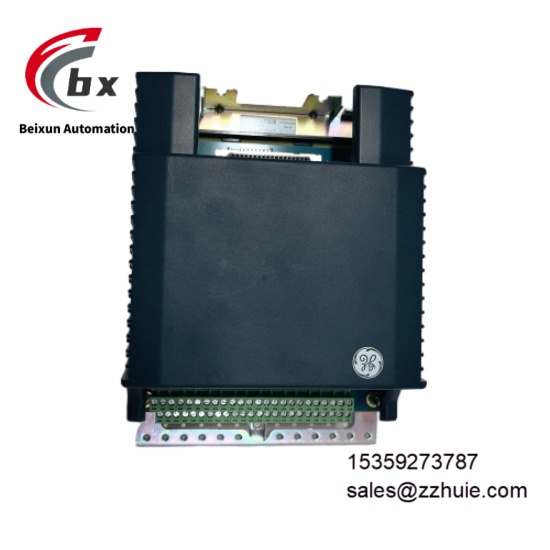

GE IS410SRLYS2A Relay output module

Specific Parameters

• Electrical ParametersInput Voltage: 24V DC (allowable fluctuation range 19.2-28.8V DC)Output Channels: 12 Form C contacts (Normally Open/Normally Closed/Common)Contact Rating: Maximum switching voltage 250V AC/30V DC per channel, maximum switching current 5A (resistive load)Isolation Level: Electrical isolation between channels and between channels and power supply, isolation voltage ≥1500V DC (1min)Diagnostic Functions: Supports channel short circuit and open circuit status monitoring, with fault alerts via LED indicators
• Environmental ParametersOperating Temperature: -40°C to 70°C (non-condensing environment)Storage Temperature: -55°C to 85°CRelative Humidity: 5% to 95% (non-condensing, continuous operation for 168 hours at 90% humidity and 40°C without failure)Vibration Resistance: 10-500Hz, 1.5g acceleration (IEC 60068-2-6 standard, 2 hours test for X/Y/Z axes each)Shock Resistance: 30g acceleration, 11ms duration (IEC 60068-2-27 standard, half-sine shock)
• Mechanical ParametersDimensions: 160mm (L) × 80mm (W) × 35mm (H) (including connectors)Weight: Approximately 0.7kgMounting Method: Standard 35mm DIN rail mounting, compatible with GE Mark VI control system racksHousing Material: Flame-retardant reinforced PA66 plastic (UL 94 V-0 grade, oil-resistant, weak acid and alkali resistant)Indicators: Independent status LED per channel (green steady on = contact closed, red steady on = channel fault), module power LED (green steady on = normal power supply)

Product Performance

Contact switching response time ≤10ms, enabling rapid execution of control commands to meet the real-time requirements of high-speed industrial processes. Channel-level diagnostic functions cover abnormal conditions such as short circuits and open circuits; diagnostic results are synchronized to alarms via LEDs and the bus, reducing fault troubleshooting time.

Mean Time Between Failures (MTBF) ≥1.2×10⁶ hours (MIL-HDBK-217F standard, 25℃ environment). The wide-temperature operating range and high-level anti-interference design ensure continuous and stable operation in industrial scenarios with high temperature, high dust, and strong electromagnetic interference. Compatible with GE Mark VI control system programming software, supporting online channel configuration and diagnostic parameter adjustment, with parameter updates completed without interrupting the system.
