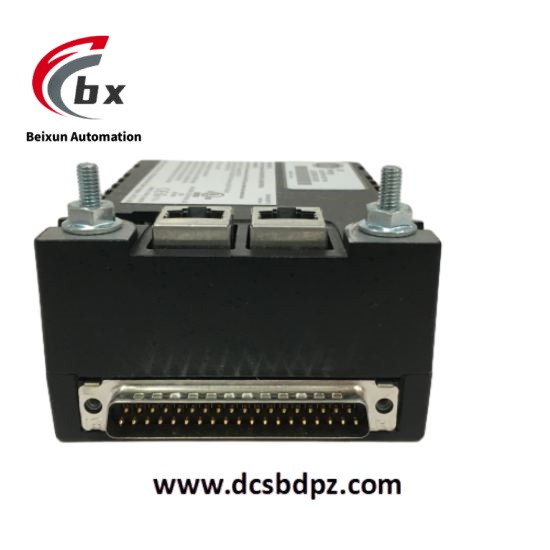

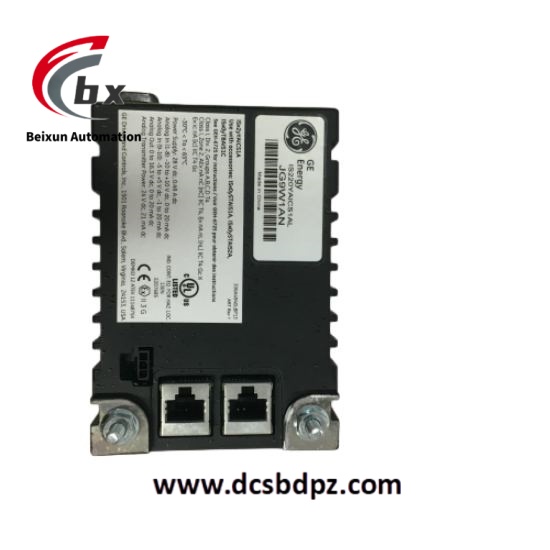

GE IS220YAICS1A A/D module and D/A module

Specific parameters
Electrical parameters
Power supply voltage: 27.4V DC (minimum), 28.0V DC (nominal), 28.6V DC (maximum).
Current: maximum 0.49A DC.
Analog input voltage range: -10V to 10V DC.
Analog input current range: 0 to 20mA DC.
Channel parameters
Number of analog input channels: 4.
Input resolution: 16 bits.
Other
Size: 16cm × 16cm × 12cm.
Weight: 0.8kg.

Product Performance
High precision conversion: With a 16 bit input resolution, it can achieve high-precision conversion from analog signals to digital signals, as well as from digital signals to analog signals, ensuring the accuracy of signal processing. It can accurately collect and control analog signals, meeting various high-precision control requirements.
Multiple signal types supported: Supports multiple input signal types, including voltage, current, temperature, etc., can adapt to signal inputs from different types of sensors, and has strong universality and compatibility.
Built in signal conditioning function: Equipped with a built-in signal conditioner, it can amplify or attenuate input signals, allowing the module to better adapt to input signals of different amplitudes, improving signal quality and stability.
Safe and reliable: certified to SIL2 safety level, suitable for safety critical applications, with high reliability and stability, capable of stable operation in harsh industrial environments, ensuring the safe operation of the system.
Automatic reconfiguration: Supports automatic reconfiguration function, allowing operators to replace I/O modules without manually reconfiguring each module, reducing system maintenance time and workload, and improving system maintainability.
