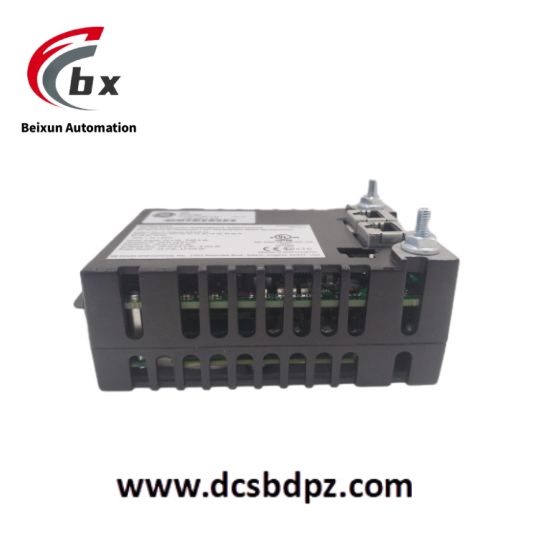

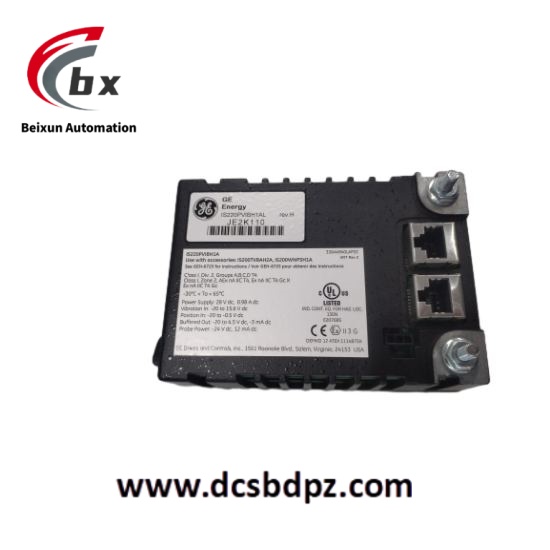

GE IS220PVIBH1A Vibration signal processing module
Specific parameters
Environmental temperature range: -30 ℃ to 65 ℃.
Power supply: usually 24VDC.
Number of channels: 13.
Common mode voltage: minimum 5VDC.
Dimensions: 3.25 inches high x 1.65 inches wide x 4.78 inches deep.
Frame rates: 3.125, 6.25, 12.5, 25, 50, and 100Hz.
Probe power supply: -24VDC, 12mA load per sensor.

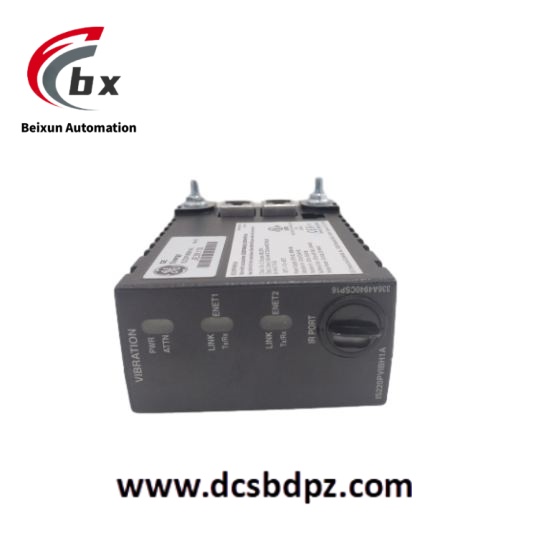

Status indicator lights: including 4 LED indicators for Attention, Power, Link, Send/Receive, etc.
Revised versions: including Rev. A, Rev. B, Rev. C, Rev. D, etc.
Product Performance
High precision monitoring: Through 13 channels and various adapted sensors, it can accurately collect and read the proximity and vibration information of the equipment, providing accurate data for equipment status assessment.
Reliable interface function: Provides a stable electrical interface between two I/O Ethernet networks and the vibration terminal board, ensuring the reliability and stability of data transmission and guaranteeing the normal operation of the system.
Flexible operating mode: The processor application code can support the component to run on single or dual Ethernet inputs. When using two Ethernet inputs, even if one network fails, it will not affect the operation of I/O packets, and the fault will be indicated through the running network connection, improving the system’s fault tolerance and reliability.
