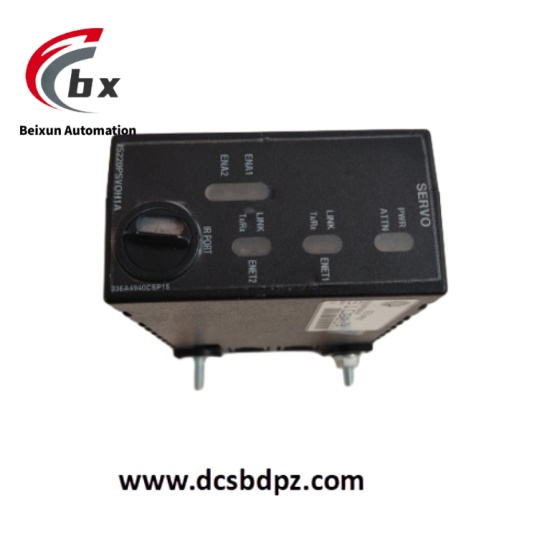

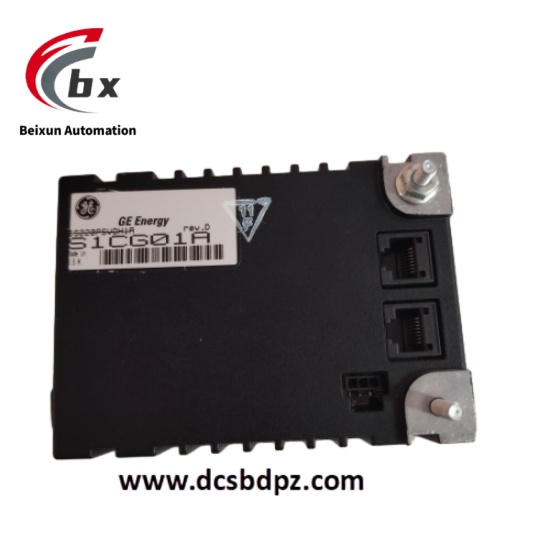

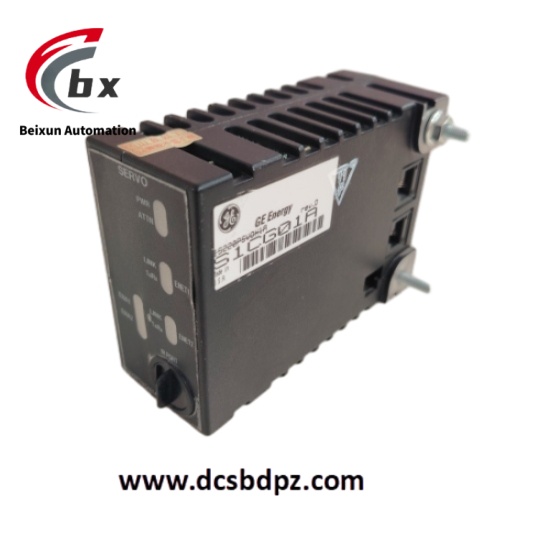

GE IS220PSVOH1A Servo control module
GE IS220PSVOH1A is a key servo control module in the GE Mark VIe series control system, specifically designed for the precise control of steam and gas turbine systems. This module is mainly responsible for receiving control commands, processing various signals, and thereby achieving precise control of actuators such as valves and regulators. As a servo control pack, it plays a central role in signal transfer and execution control within the entire system, and is an important component to ensure the stable and efficient operation of steam and gas turbine systems.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
GE IS220PSVOH1A Servo control module
Specific Parameters
- Input Voltage: 24V DC
- Output Voltage: 24V DC
- Input Current: 2.5A
- Output Current: 2.5A
- Operating Temperature Range: – 40°C to 70°C
- Storage Temperature Range: – 40°C to 85°C
- Humidity Range: 5% to 95% (non – condensing)
- Dimensions: 4.8 inches x 2.4 inches x 8.7 inches (approx. 12.19 cm x 6.09 cm x 22.1 cm)
- Weight: Approximately 1.3 kg (about 1.2 lbs)
- Protection Level: IP20
- Communication Protocols: Supports Modbus TCP, EtherNet/IP and other protocols
- Module Type: Servo control module
- Applicable Controller: Mark VIe series control system
- Servo Valve Type: WSVO servo valve
- Servo Valve Position Feedback: Analog feedback
- Isolation Voltage: 2 kV
- Communication Rate: 1 Mbps
- Cooling Method: Natural cooling
- Total Outputs: 2 outputs
- LVDT Inputs: 8 inputs
- Pulse Rate Inputs: 2 pulse rate inputs
- Interface: 1 or 2 I/O Ethernet interfaces, connecting to TSVO servo terminal board
- Drive Module: WSVO servo drive module, controlling two servo valve position loops
- Indicators: The front panel is equipped with LED indicators to display Ethernet status, power status, etc.
- Configuration Method: Can be configured through the Control System Toolbox application
Product Performance
- Precise Control: Can accurately control the servo valve, ensuring precise positioning of the actuator, meeting the strict requirements for control accuracy of steam and gas turbine systems, and ensuring the stable operation of the system.
- Redundant Design: Equipped with 1 or 2 I/O Ethernet interfaces, providing redundant communication links, enhancing system reliability and reducing the risk of system out – of – control due to network failures.
- Modular Design: Facilitates installation and maintenance. During equipment maintenance or upgrade, it can be quickly disassembled and replaced, reducing downtime and improving equipment operation efficiency.
- High Configurability: Supports a variety of configuration options. Parameters can be flexibly adjusted through the Control System Toolbox application to adapt to different application scenarios and control requirements.
- Automatic Reconfiguration: Can automatically reconfigure when replacing the module, reducing manual intervention, reducing operation complexity, and ensuring the system quickly returns to normal operation.
- Strong Signal Processing Ability: Can process 8 LVDT inputs and 2 pulse rate input signals, providing comprehensive and accurate operating data for the system and facilitating precise control decisions.
- Good Communication Compatibility: Supports common communication protocols such as Modbus TCP and EtherNet/IP, facilitating integration with other devices or systems to build a complete automated control network.
