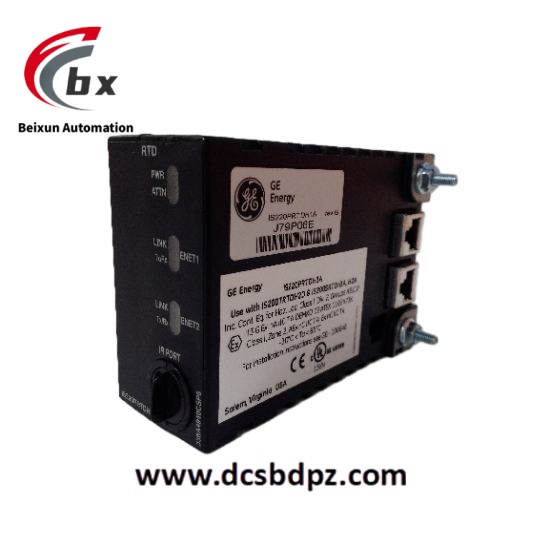

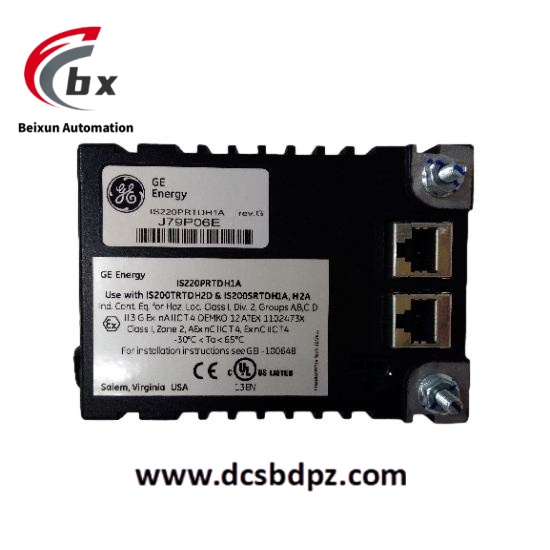

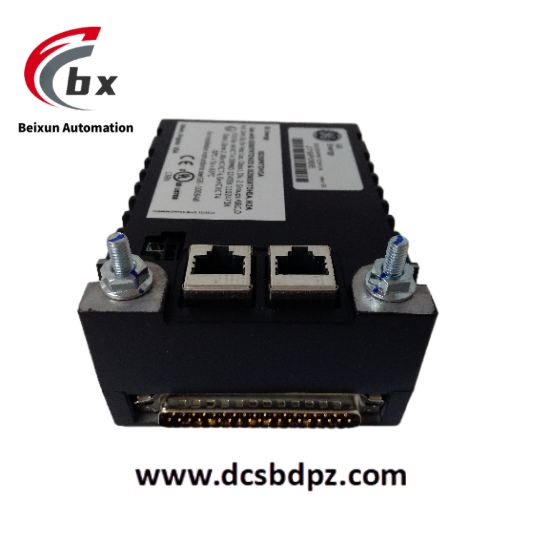

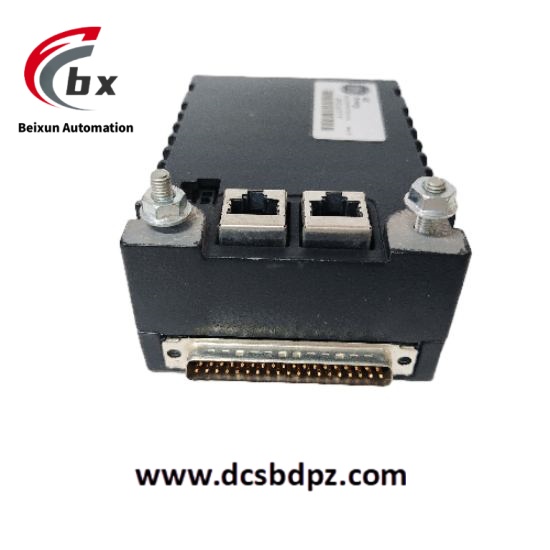

GE IS220PRTDH1A 336A4940CSP6 High precision temperature signal acquisition module
Specific parameters
Number of channels: 8 channels.
A/D converter resolution: 14 bits.
Common mode voltage range: ± 5 volts.
Maximum lead resistance: 15 Ω maximum.
Input range: -200 ℃ to 800 ℃ (-328 ℉ to 1472 ℉).
Accuracy: ± 0.1% of full scale.
Resolution: 0.01 ℃ (0.02 ℉).
Output range: 4-20mA DC.
Power requirement: 24V DC.
Working temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉).
Storage temperature: -60 ℃ to 85 ℃ (-76 ℉ to 185 ℉).
Humidity: 0% to 95% RH (non condensing).
Dimensions: 155mm x 79mm x 41mm.
Weight: 0.5kg.
Product Performance
High precision measurement: Each channel is equipped with advanced signal conditioning technology, which can accurately convert RTD signals into digital outputs with an accuracy of ± 0.1%, ensuring accurate temperature measurement in various industrial environments.
Strong compatibility: Compatible with various RTD input terminal boards, such as TRTDH1D, H2D, and SRTD boards, it can be used with different types of RTDs and supports multiple RTD types such as platinum resistance thermometers (PT100, PT1000), enhancing the versatility of the module.
Complete diagnostic function: It has a power on self-test function, which can check the hardware on the CPU board, Ethernet ports, RAM, and flash memory. It can also perform system limit testing on each RTD input, with diagnostic signals that can be latched and reset through the RESET DIA signal.
Excellent network functionality: The processor board has two completely independent 10/100 Ethernet ports that can automatically negotiate between half duplex and full duplex operations, with speeds ranging from 10MB/s to 100MB/s. When using two Ethernet inputs, both network paths remain active, providing higher fault tolerance.
