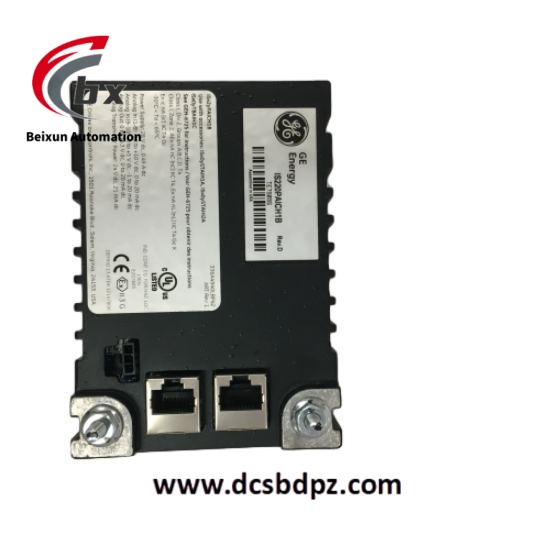

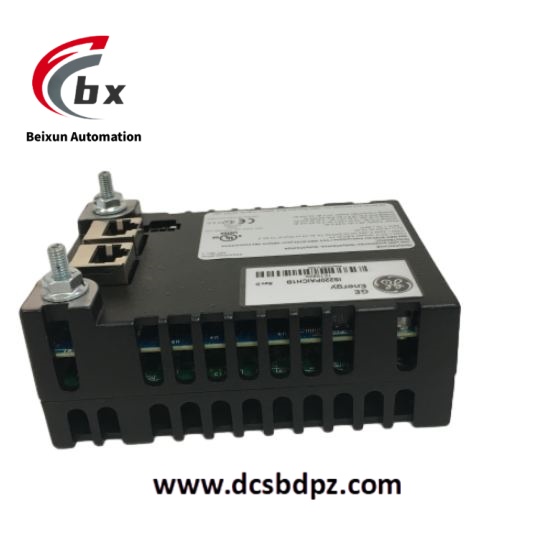

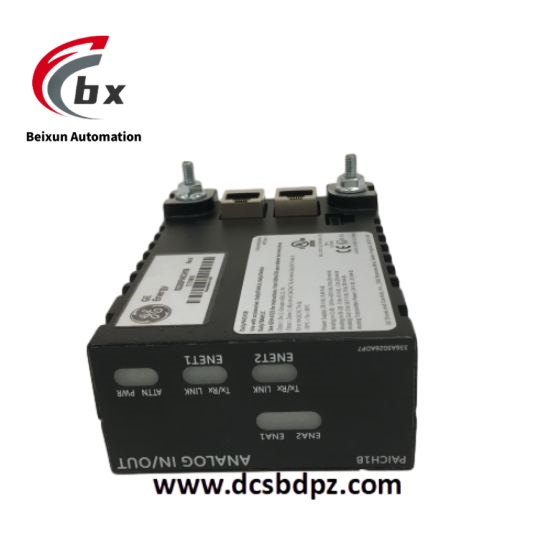

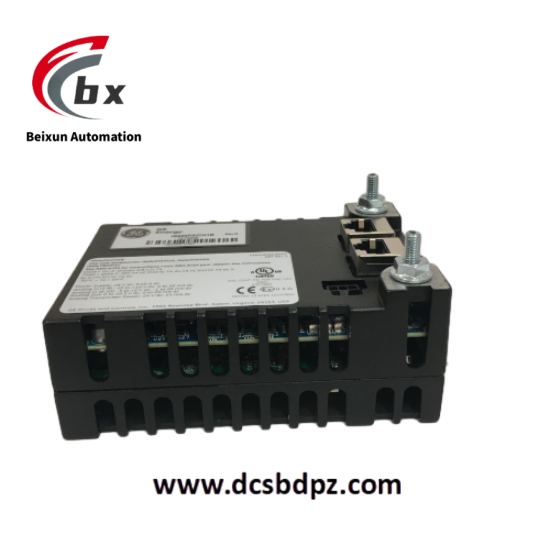

GE IS220PAICH1B Analog input/output module
Specific parameters
Power parameters: The input voltage is generally 24V DC, and it can also support 22.5V DC as the minimum voltage, with 28V DC being more common; The simulated transmitter power is 22.8V DC; The current consumption is about 200mA; the power consumption is 5W.
Environmental parameters: Operating temperature range is -40 ℃ to+70 ℃ or -40 ℃ to 158 ° F; Storage temperature range is -40 ℃ to+85 ℃; The humidity range is 10% to 95% (without condensation).
Input and output parameters
Input channel: 16 channels.
Output channels: 8 channels.
Input range: 0-5V, 1-5V, 0-10V, -5-5V, -10-10V.
Output range: 0-5V, 1-5V, 0-10V, -5-5V, -10-10V.
Accuracy: ± 0.1%.
Resolution: 16 bits.
Sampling rate: 1000 samples per second.
Other parameters: dimensions are 170mm × 110mm × 45mm or 13.3cm × 7.08cm × 3.93cm; weight is approximately 1kg; certified according to ATEX Zone 2, Group IIC location standards, and UL E207685 for non hazardous locations; Function abbreviation is PAIC; The standard scanning time is 5ms (200Hz).
Product Performance
High speed processing capability: Equipped with a 667MHz PowerQUICC II Pro Freescale processor, it can quickly process a large number of analog input signals, perform complex operations and logical judgments, ensuring real-time response and control accuracy of the system.
high reliability
Hardware design: Adopting multi-layer PCB design and high-quality electronic components, it has good anti-interference ability and stability, and can operate stably for a long time in harsh industrial environments.
System support: Running the QNX Neutrino real-time operating system, which has excellent stability and reliability, ensuring that the system does not experience crashes or crashes during high load and long-term operation.
Flexible network connectivity: With two 10/100BaseT X Ethernet ports (UDH) and three additional 10/100BaseT X Ethernet ports (IONet), it can easily connect to other devices and support multiple network topologies for system expansion and integration.
High precision measurement and control: The input and output accuracy can reach ± 0.1%, with a resolution of 16 bits. It can accurately collect and control analog signals, meeting the high-precision measurement and control requirements for process variables such as temperature, pressure, flow rate, and vibration.
