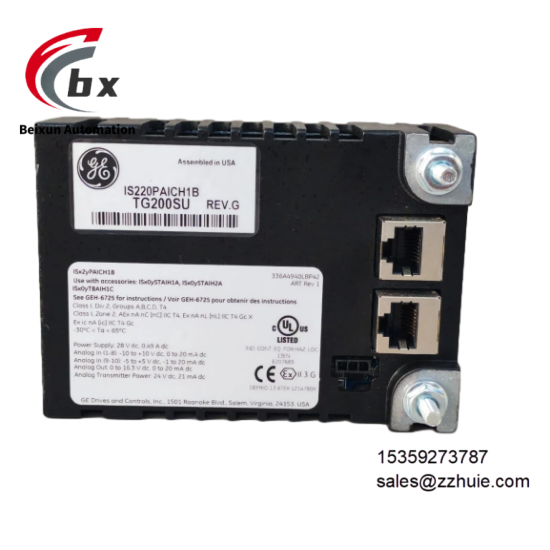

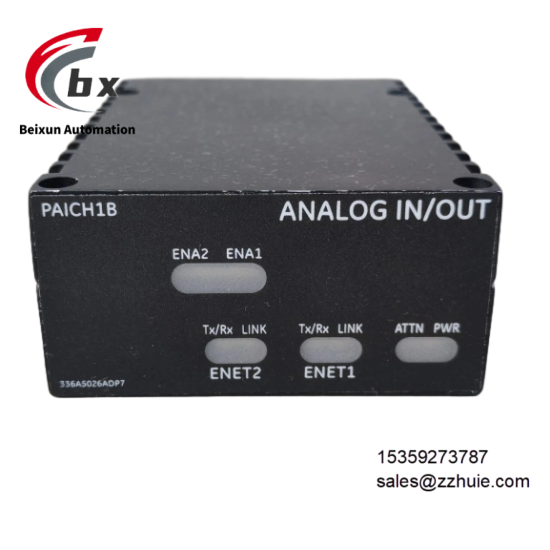

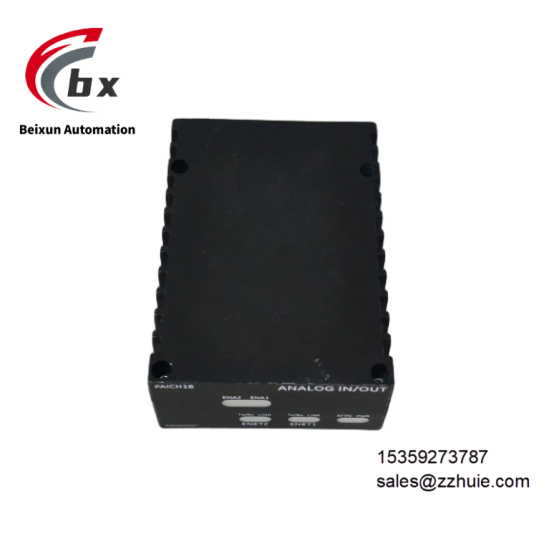

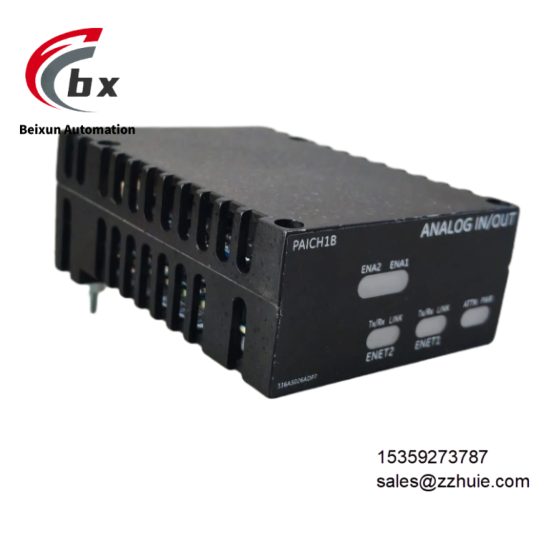

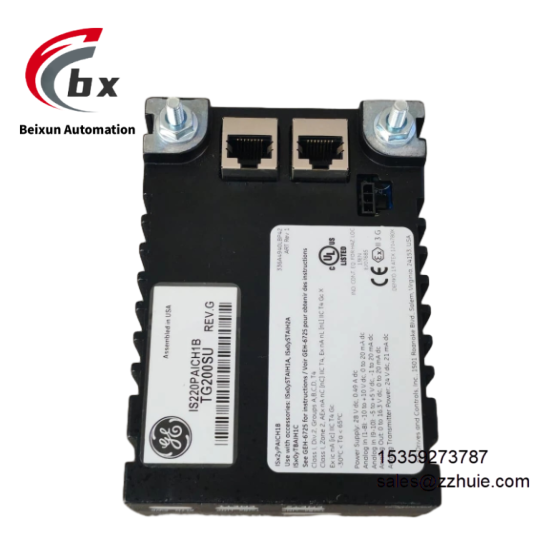

GE IS220PAICH1B Analog input/output (I/O) module

GE IS220PAICH1B Analog input/output (I/O) module

Specific Parameters

Brand GE (General Electric), Product Series GE Mark VIe Series

Product Type Analog Input/Output (I/O) Module, Industrial Control Module, GE Original Spare Part

Model GE IS220PAICH1B

Country of Origin United States (Produced by GE original factory)

Compatible Devices GE Mark VIe Series Controllers, TBQC/TCLC Series Terminal Boards, Mark VIe Distributed Control System, Speedtronic Turbine Control System

Core Functions Analog Signal Acquisition and Conversion, Channel-Level Fault Diagnosis, Automatic Reconfiguration, Signal Isolation

Number of Input Channels 10 Analog Input Channels

Input Signal Type The first 8 channels can be configured as 5V, 10V voltage signals or 0-20mA current signals; the last 2 channels can be set as 1mA or 0-20mA current signals

Number of Output Channels 2 Analog Output Channels

Output Signal Type 0-20mA Current Signal (Configurable via Configuration Software)

Input Resolution 16-bit

Output Resolution 16-bit

Output Accuracy ±0.1% Full Scale (At Room Temperature)

Input Impedance ≥250Ω in Current Input Mode, ≥100kΩ in Voltage Input Mode

Output Load Capacity Maximum Load 500Ω for Current Output

Isolation Method Electrical Isolation Between Channels, Isolation Voltage ≥500VAC

Power Supply Voltage DC 24V (Typical Value), Supporting 22.5-28Vdc Wide Voltage Fluctuation

Typical Power Consumption 5.3W, 6.2W in Worst Case

Operating Temperature Range -40℃ to 70℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20

Scanning Time Normal Scanning Time 5ms (200Hz), Maximum Controller Frame Rate 100Hz

Physical Dimensions Approximately 254mm×178mm×51mm (Conforming to Mark VIe Module Uniform Installation Dimensions)

Physical Weight Approximately 0.8-1.2kg (Excluding Installation Accessories)

Mounting Method 35mm DIN Rail Mounting or Mark VIe Standard VME Rack Mounting

Configuration Software Supports GE ToolboxST, ControlST, SPEEDTRONIC Engineering Software

Protection Functions Overcurrent, Overvoltage Protection, Open Circuit Detection, Power Failure Detection, Signal Overlimit Alarm

Product Material Industrial-Grade Reinforced Housing, High-Temperature Resistant Insulation Material

Customizable No

Certification Standards Complies with CE, IEC Relevant Certification Standards

Warranty Period 12 Months

Product Performance

GE IS220PAICH1B is an original GE device with strong adaptability, which can be seamlessly integrated into GE Mark VIe Series control systems, with convenient installation and maintenance, supporting hot-swapping and automatic reconfiguration functions, no manual reconfiguration is required when replacing modules, which greatly reduces system downtime. The product has high acquisition accuracy and strong signal stability, 16-bit resolution ensures the accuracy of analog signal conversion, and the electrical isolation design between channels effectively suppresses electromagnetic interference and avoids the impact of ground loop current on measurement accuracy. The product has complete intelligent diagnosis and protection functions, can real-time monitor channel status and power status, issue fault alarms in a timely manner, its anti-vibration and anti-shock capabilities meet industrial standards, and it has a solid structure, which can operate continuously and stably in harsh industrial environments, providing reliable signal support for the control and monitoring of key industrial equipment, and improving the overall reliability and operation and maintenance efficiency of the system.
