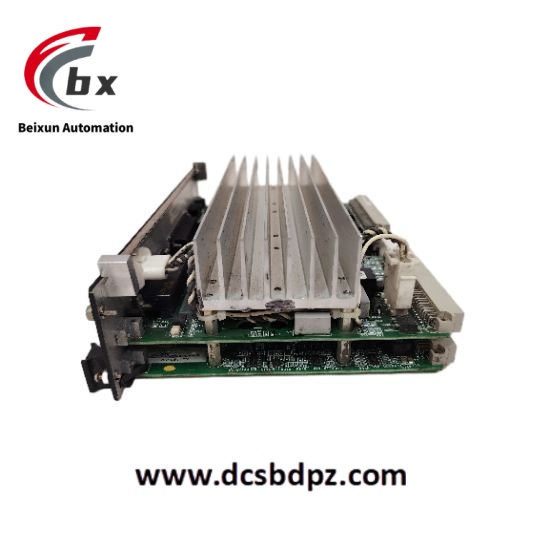

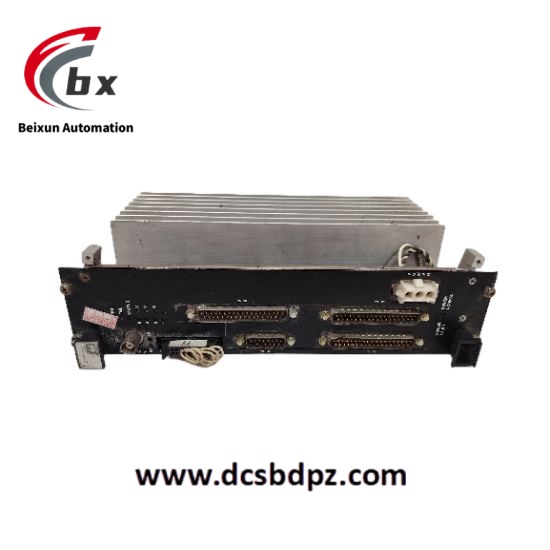

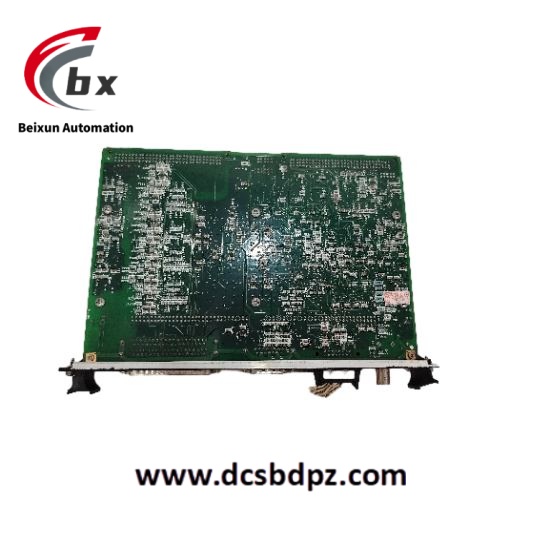

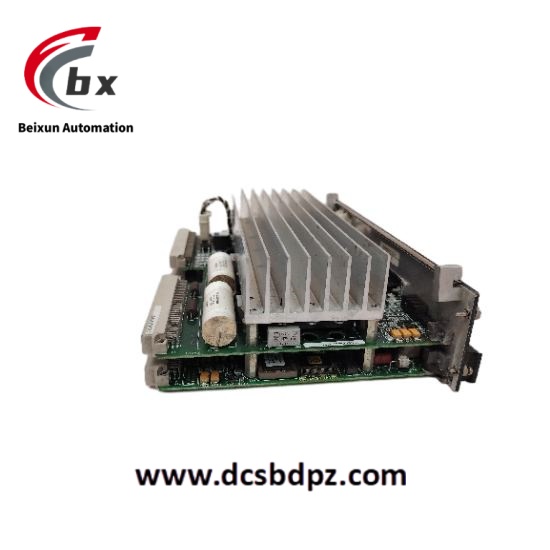

GE IS215VPROH2BC High precision process control and redundant output module

Specific parameters
Power supply voltage: 125V DC, capable of generating DC voltages of 5V DC and 28V DC.
Dimensions: 5 inches deep, 5 inches wide, and 6.5 inches long.
Weight: Approximately 5 ounces.
Communication interface: equipped with Ethernet connection, used for IONet communication.
Working temperature range: generally from 0 ° C to 45 ° C.
Frame speed: up to 100Hz.
Sensitivity of MPU input circuit: minimum 27mV peak at 2Hz.
Redundant System: Single or Triple Modular Redundancy (TMR).
Number of trip solenoid valves: Each VPRO board can have up to six (three per TREG board).

Product Performance
High reliability: Adopting a triple redundancy design, there are three completely independent parts (X, Y, Z), which can ensure the system continues to operate even if one of them fails. One part can be shut down without affecting the protection system.
Emergency protection function: It can provide independent emergency overspeed protection and emergency stop function. When an abnormal situation is detected, it can quickly trigger a trip action, shut down the turbine, and prevent accidents from occurring.
Real time monitoring: With high-speed data processing capabilities, it can monitor the operating status of the turbine in real time, such as parameters such as speed, temperature, pressure, etc., and accurately evaluate and judge the operating status of the turbine.
Multiple signal processing: capable of processing various types of input/output signals, such as economic relay signals, emergency stop input signals, trip interlock input signals, and trip solenoid valve drive signals.
Communication capability: Through Ethernet interface, it can quickly and stably communicate with other control modules, field devices, sensors, and actuators, achieving system integration and collaborative work.
