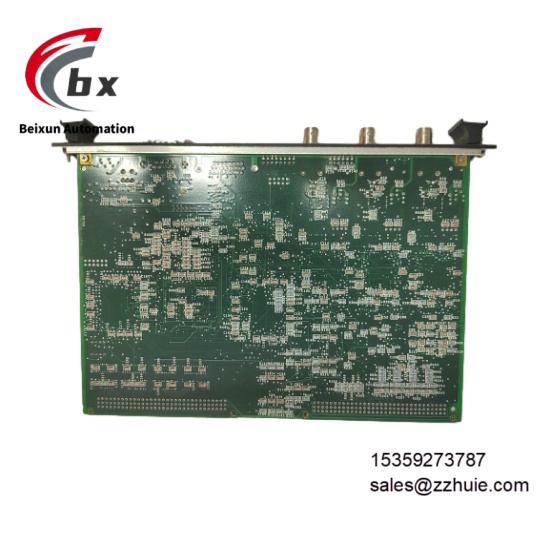

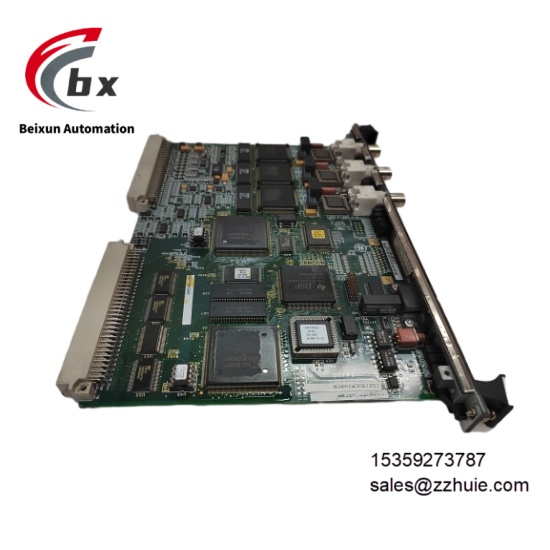

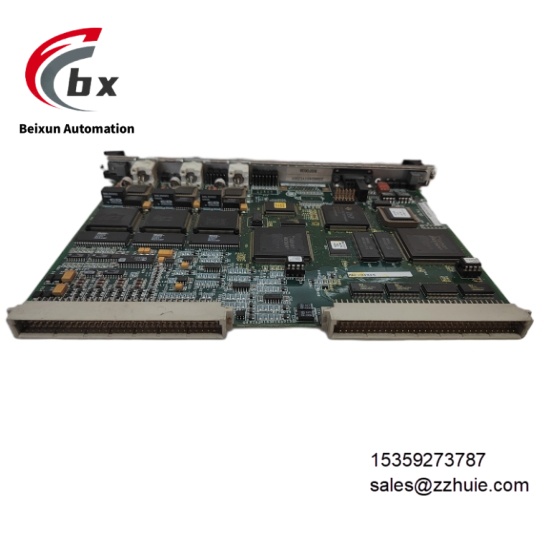

GE IS215VCMIH2CA IS200VCMIH2CAA Bus communication interface module

GE IS215VCMIH2CA IS200VCMIH2CAA Bus communication interface module

SPECIFIC PARAMETERS​

Brand GE​

Product Series Speedtronic Mark VI​

Product Type VME Bus Communication Interface Module​

Working Voltage 5VDC 24VDC​

Working Temperature 0℃ to 70℃​

Storage Temperature -40℃ to 85℃​

Input Circuit No independent input circuits Only signal transfer channels​

Output Circuit No independent output circuits Only communication transfer channels​

Safety Level SIL 3​

Protection Level IP20​

Processor Integrated TI TMS320C32 32-bit DSP core​

Communication Interface IONet 10Base2 Ethernet 10BaseT/100BaseTX RS-485​

Memory Specification 32KB dual-port RAM 128MB Flash​

Size 160mm×100mm×30mm​

Weight 0.5kg​

Power Consumption 8W​

Communication Rate IONet 1Mbps Ethernet 10/100Mbps​

Compatible System Speedtronic Mark VI Mark VIe​

MTBF 500000 hours​

PRODUCT PERFORMANCE​

Support the redundant communication architecture of the Mark VI system and realize the non-disturbance switching of communication links​

Adopt industrial-grade wide-temperature components and can operate stably in industrial environments with strong electromagnetic interference​

Communication data transmission delay is less than 200 microseconds, meeting the real-time requirements of gas turbine control​

Built-in link status diagnosis function, which can feed back the health status of the communication link through the onboard LED indicator​

Compatible with GE’s dedicated TCS communication protocol and standard Modbus TCP protocol, supporting cross-system data interaction​

Equipped with module hot-swappable capability, which can complete module replacement while the system is running​

Passed the GE original TUV functional safety certification and complies with the IEC 61508 industrial safety standard​
