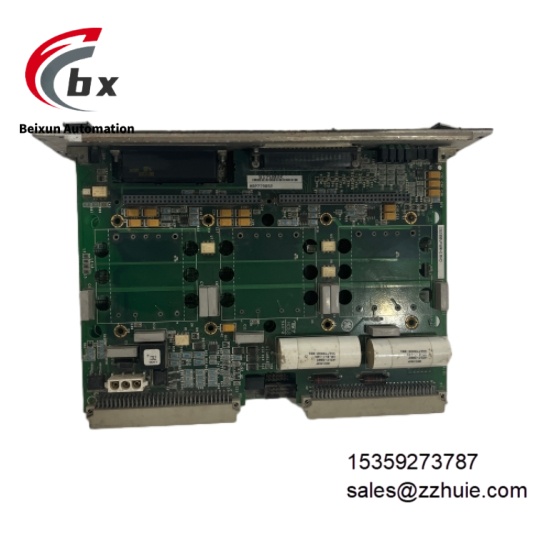

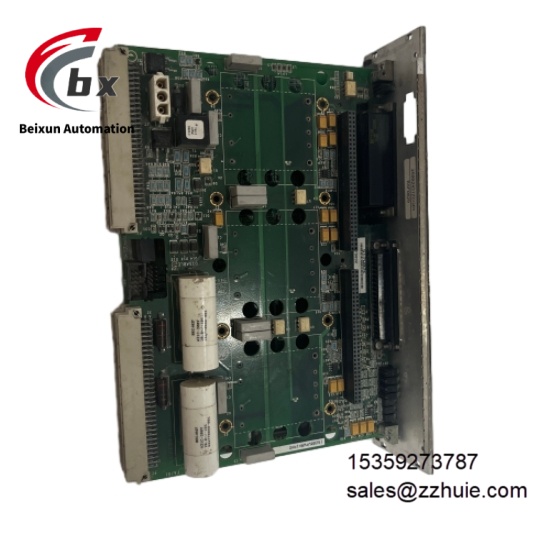

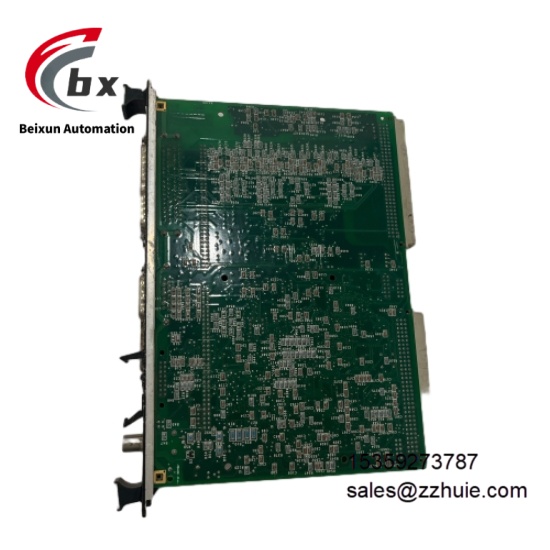

GE IS200VPWRH1AHD Core power distribution and management module

GE IS200VPWRH1AHD Core power distribution and management module

Specific Parameters

• Electrical ParametersInput Voltage: 12V DC, allowable fluctuation range 10.8-13.2V DCRated Power Consumption: ≤15WOutput Channels: 4 independent regulated output channelsOutput Accuracy: Voltage regulation accuracy ≤±0.5%Isolation Level: Electrical isolation between input and output, isolation voltage ≥1000V DC (1min withstand voltage test)Protection Functions: Built-in overload, short circuit, overvoltage and overheating protection; automatically cuts off output and alarms when protection is triggeredDiagnostic Functions: Supports real-time power status monitoring; fault information is uploaded via Ethernet interface, and local indicators feed back synchronously
• Environmental ParametersOperating Temperature: -40°C to 70°C (non-condensing environment, no derating)Storage Temperature: -55°C to 85°CRelative Humidity: 5% to 95% (non-condensing, continuous operation for 168 hours at 90% humidity and 40°C without failure)Vibration Resistance: 10-500Hz frequency range, 1.5g acceleration (complies with IEC 60068-2-6 standard, 2 hours test for X/Y/Z axes each)Shock Resistance: 30g acceleration, 11ms duration (complies with IEC 60068-2-27 standard, half-sine shock waveform)Certification Standards: UL 508 industrial control equipment certification, CE (EMC and safety certification)
• Mechanical ParametersDimensions: 120mm (L) × 160mm (W) × 30mm (H) (compliant with 3U VPX board standard)Weight: Approximately 0.5kgMounting Method: 3U VPX standard rack mounting, compatible with Mark VI control system chassisHousing Material: Flame-retardant reinforced PA66 plastic (UL 94 V-0 grade, oil-resistant and resistant to weak acid and alkali corrosion)Indicators: Power status LED (green steady on = normal power supply), fault alarm LED (red steady on = abnormal)

Product Performance

Excellent power output stability: Voltage regulation accuracy ≤±0.5% and load regulation rate ≤1% provide continuous and stable power supply for components such as processors and sensors in the control system, avoiding equipment abnormalities caused by voltage fluctuations. FPGA-driven control logic enables fast response, with fault diagnosis response time ≤100ms; it can instantly cut off output when abnormalities like overload or short circuit occur, protecting downstream equipment.

Outstanding hardware reliability: Adopts industrial-grade components and wide-temperature design, with Mean Time Between Failures (MTBF) ≥1.5×10⁶ hours (MIL-HDBK-217F standard, 25℃ environment), enabling continuous and stable operation in industrial scenarios with high temperature and strong electromagnetic interference. Multi-interface integration design supports USB local configuration, Ethernet remote monitoring and GPIO signal interaction, adapting to operation and control needs of different scenarios.

Strong anti-interference capability: Passes EMC test certification, resisting electromagnetic radiation and conducted interference in industrial environments, ensuring power output and signal transmission are not affected by the external environment.
