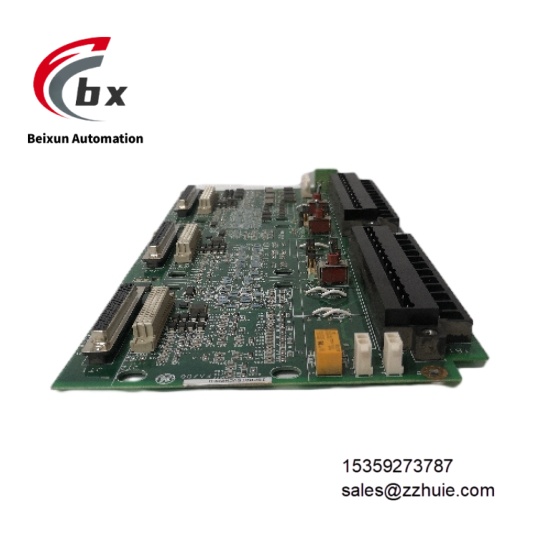

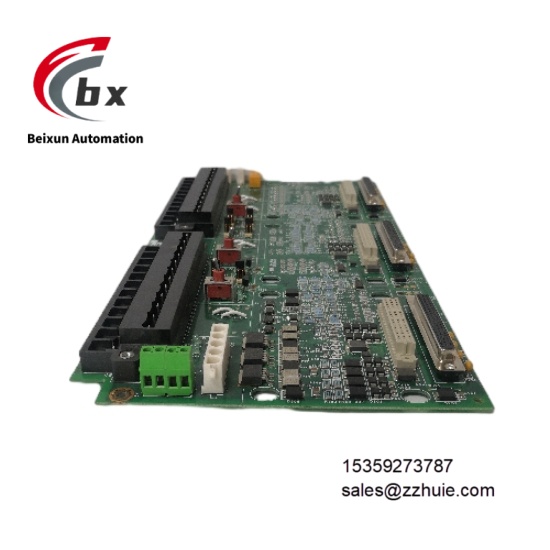

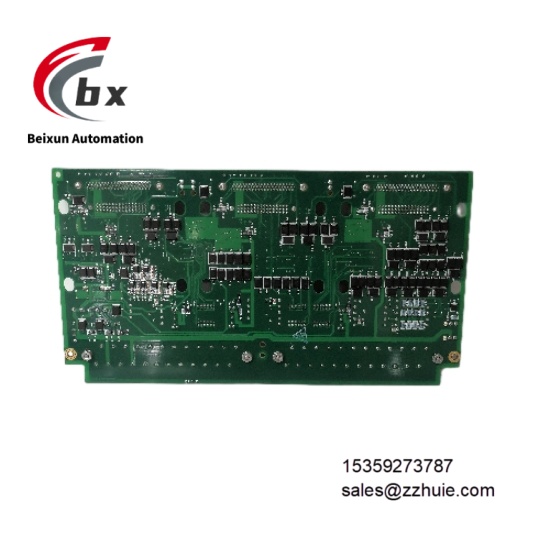

GE IS200TSVCH2AED MRP246517 Turbine speed control module
Specific Parameters
Electrical Parameters
Operating Voltage: 24VDC ±10%Input Channels: 4 speed signal input channels, supporting differential signal accessMeasurement Range: 0-15000 rpmControl Accuracy: ±0.01% rated speedSpeed Resolution: 0.1 rpmOutput Signals: 2 4-20mA analog outputs (speed command/actual speed), 4 DO relay outputs (control/alarm)Communication Protocols: Profinet IRT, Modbus TCP, IEC 61850, GE dedicated fiber optic busProtection Features: Overspeed protection (customizable threshold), sensor fault protection, module redundancy mismatch protectionResponse Time: Speed regulation response ≤50ms, fault alarm response ≤10msInsulation Resistance: ≥100MΩ between channels and between channels and power supply (measured at 500V DC, normal temperature and state)Voltage Withstand Strength: ≥2500V AC (1 minute no breakdown, leakage current ≤1mA)Certification Standards: Compliant with IEC 61508 SIL 3, UL 508, CE, RoHS 2.0 standards
Mechanical Parameters
Overall Dimensions: 130mm (W) × 150mm (H) × 200mm (D), standard Mark VIe module sizeWeight: Approximately 1.2kg, compatible with Mark VIe series standard racksMounting Method: Plug-in rack mounting, supporting online hot-swappingHousing Material: Die-cast aluminum alloy (main body) + flame-retardant engineering plastic (interface panel), anti-electromagnetic interferenceConnection Method: 2 sets of pluggable terminal blocks + fiber optic interfaces, compatible with shielded cables and optical fibersProtection Rating: IP20 (rack-mounted), relying on the overall protection of the control system cabinetStatus Indication: Module-level power (green), operation (yellow), fault (red) LEDs; redundancy status LED
Environmental Parameters
Operating Temperature: -40℃ to 70℃, operation without derating over the entire temperature rangeStorage Temperature: -40℃ to 85℃, meeting extreme storage and transportation requirementsRelative Humidity: 5% to 95% (non-condensing), suitable for high-humidity industrial scenariosVibration Resistance: 1.5g acceleration (sine wave) at 10-500Hz frequency range, no structural loosening or signal driftShock Resistance: 20g acceleration (half-sine wave, duration 11ms), withstanding rack-mounted shocksEMC Compliance: Meets EN 55014-1 (emission limits), EN 55014-2 (immunity), EN 61326-1 standardsInstallation Altitude: ≤2000m (normal operation), power derating 10% for every 1000m increase from 2000m to 5000m
Product Performance
Triple Modular Redundancy (TMR) architecture: Three independent CPUs perform synchronous operations, ensuring system control is not affected by single module failure, with reliability up to 99.99%Excellent control accuracy: ±0.01% rated speed accuracy combined with PID algorithm, speed fluctuation ≤±0.1rpm, outstanding steady-state performanceFast response speed: Completes speed regulation within 50ms, triggers protection within 10ms during overspeed, avoiding unit damageStrong system compatibility: Seamlessly connects to Mark VIe DCS, supports collaborative work with other control modules, no delay in data interactionComprehensive diagnostic capability: Covers fault types such as sensors, communication and redundancy links, diagnostic coverage ≥99.5%High maintenance convenience: Hot-swappable design + intuitive status indication, fault troubleshooting time ≤15 minutes, supporting remote configurationOutstanding operational stability: Industrial-grade components and wide-temperature design, Mean Time Between Failures (MTBF) ≥400,000 hours
