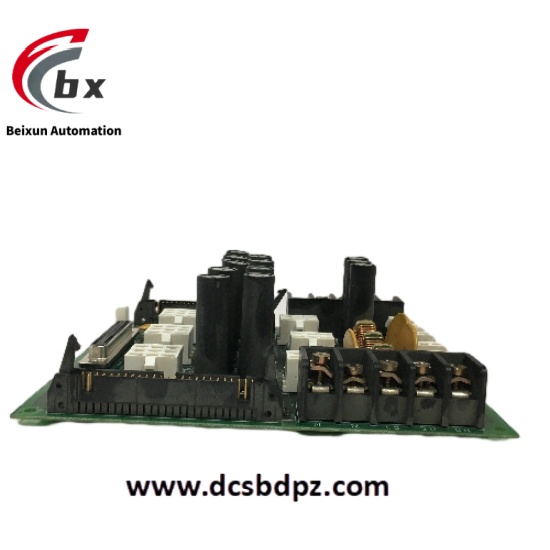

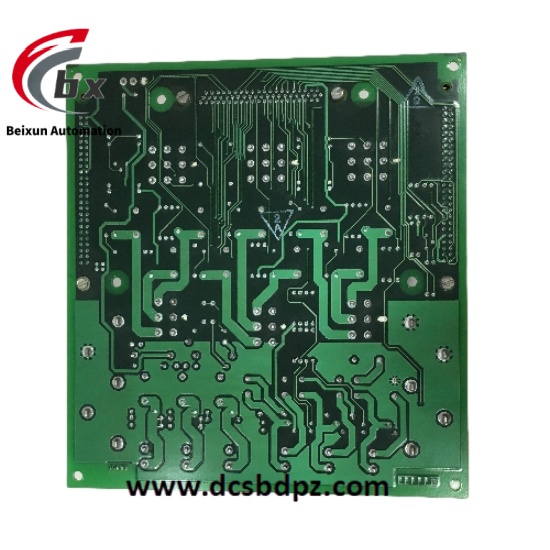

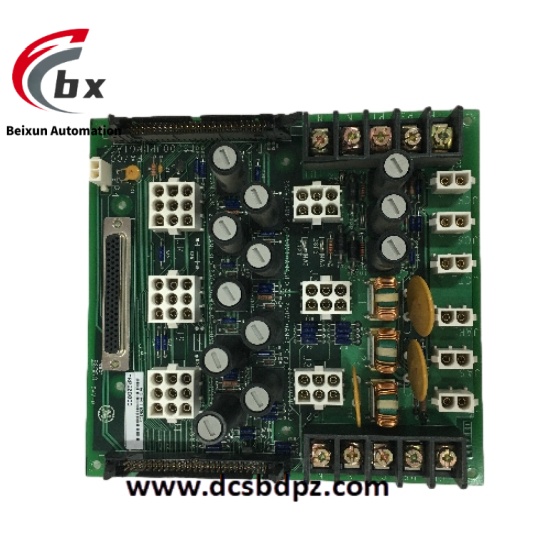

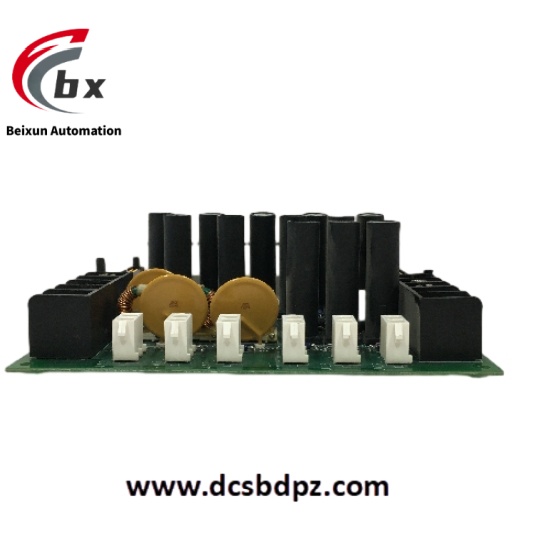

GE IS200JPDMG1ACC S1AT005 Discrete input/output (I/O) module

Specific Parameters

Power Supply Parameters

Supply Voltage: 24V DC (±10%)

Rated Power Consumption: ≤3.5W

Power Isolation: 2500Vrms (for 1 minute continuously, power and signal terminals)

Input Parameters

Number of Digital Input Channels: 16 channels

Input Signal Type: Dry contact/wet contact (configurable)

Wet Contact Input Voltage Range: 18-30V DC

Input Response Time: ≤5ms

Input Impedance: ≥10kΩ (wet contact mode)

Output Parameters

Number of Digital Output Channels: 8 channels

Output Type: Transistor output (NPN type)

Maximum Output Current: 2A per channel (at 24V DC)

Output Short-Circuit Protection: Equipped (self-recovering, short-circuit current ≤5A)

Communication Parameters

Communication Interface: Mark VIe system backplane bus

Data Transmission Rate: 100Mbps (full-duplex)

Data Update Cycle: ≤10ms (input/output data synchronization)

Environmental Parameters

Operating Temperature Range: -40°C to +70°C

Storage Temperature Range: -40°C to +85°C

Relative Humidity: 5% to 95% (non-condensing, when temperature ≤40°C)

Protection Class: IP20 (module body)

EMC Immunity: Complies with IEC 61000-6-2 industrial EMC standard

Physical Parameters

Mounting Type: 35mm standard DIN rail mounting (compatible with Mark VIe rack)

Dimensions (L×W×H): 132mm×90mm×46mm

Weight: Approximately 0.42kg

Connector Type: Plug-in terminal (2.54mm pitch, anti-corrosion coating)

Product Performance

High Compatibility: Supports seamless connection with the Mark VIe control system backplane bus, no additional adaptation modules required, and can be directly integrated into the existing Mark VIe automation system, simplifying the system integration process.
Strong EMC Immunity: 2500Vrms high isolation design between power supply and signal terminals, combined with RC filter circuits built into input channels, can resist electromagnetic radiation and surge interference in industrial fields, with digital signal acquisition bit error rate ≤10⁻⁹.
Real-Time Response: Input response time ≤5ms and data update cycle ≤10ms, which can quickly capture changes in on-site equipment status and execute control commands, meeting high real-time discrete control needs (such as equipment start-stop, fault interlock).
Stable Operation in Wide Temperature Range: Passes full temperature range condition testing from -40°C to +70°C, no start-up delay in low-temperature environments, and no output parameter drift during 72-hour continuous operation at high temperature (+70°C), adapting to harsh industrial scenarios such as severe cold and high temperature.
Fault Self-Diagnosis: Real-time monitors input channel open/short circuit, output channel overload/short circuit and power supply abnormality, feeds back fault location through module LED indicators and Mark VIe system alarm signals, with fault location accuracy reaching single-channel level, shortening operation and maintenance troubleshooting time.
