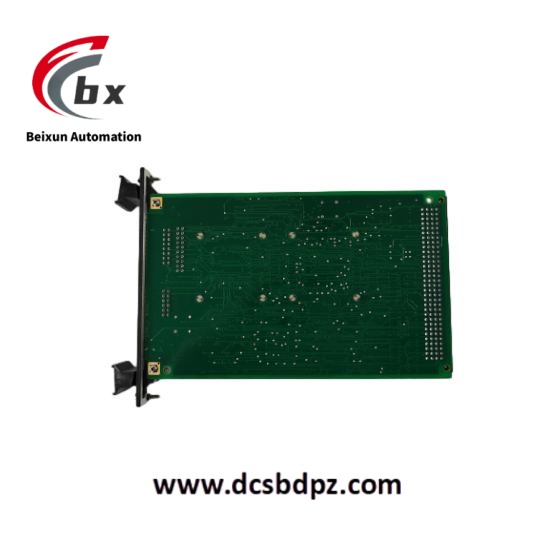

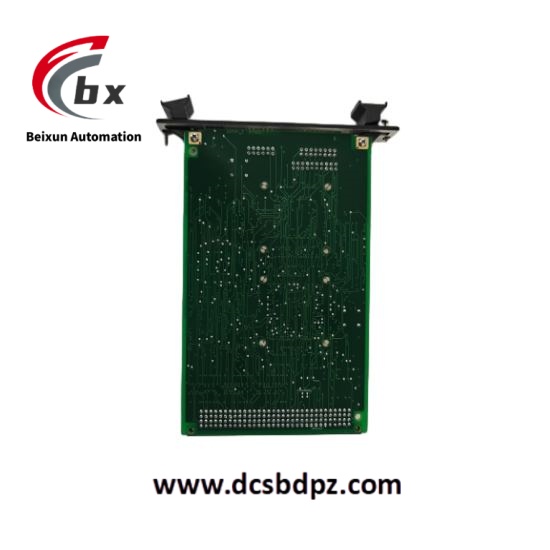

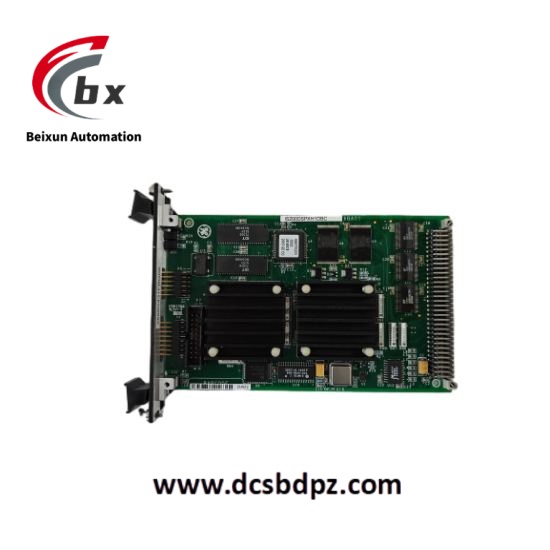

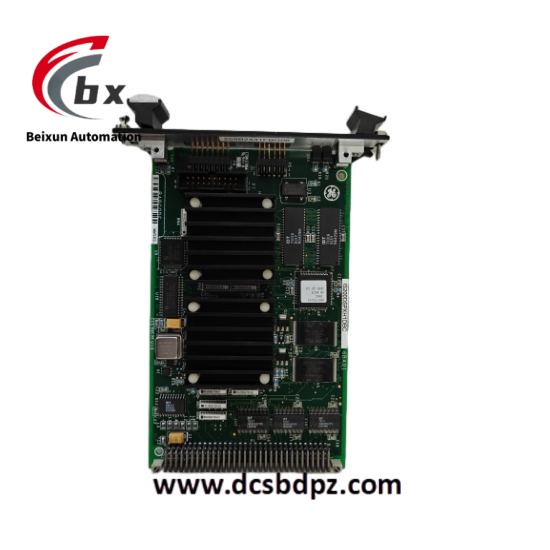

GE IS200DSPXH1DBC Digital signal processor control board
Specific parameters
Processor: Adopting a 60MHz digital signal processor.
Storage: Equipped with 248kB static high-speed RAM and 512kB flash BIOS.
Interface: There is a backplane connector (P1), a vertical pin connector (P7) located near the front of the board, an engineering monitor port (P6), and a DSP emulator port (P5).

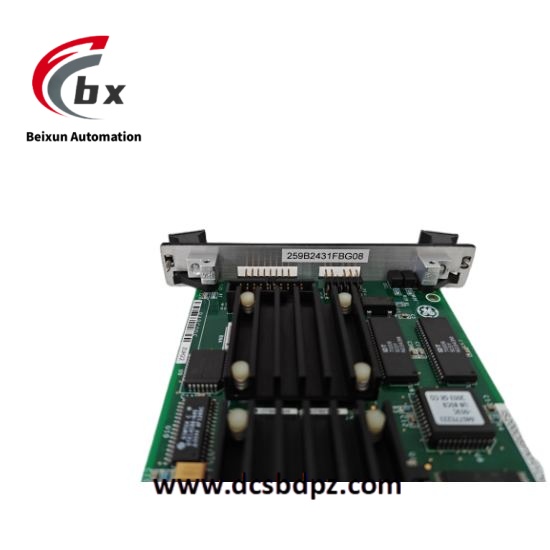

Size: The actual length of the printed circuit board is about 8.5 inches, and the width is about 5 inches; After adding the outer panel (manufacturer’s trademark 259B2431FBG08), the total width gap is about 7 inches and the total thickness is about 1 inch.
Other: Includes an application specific integrated circuit (ASIC) with 42 capacitors for charge storage on the circuit board, and two LEDs on the front panel labeled as “status” and “fault” for alarm board faults.
Product Performance
High performance: The high-speed digital signal processor endows it with powerful digital signal processing capabilities, which can quickly process various digital signals and achieve high-speed and high-precision control operations.
Programmable: Supports programming and configuration, allowing users to program control logic according to their actual needs to achieve specific control effects and functions, meeting diverse control requirements.
Multiple interfaces: Multiple input and output interfaces facilitate communication with various sensors and actuators, enabling data acquisition and output control, enabling the control board to adapt to different industrial automation systems.
High reliability: Using high-quality electronic components and advanced circuit design, it can operate stably in harsh industrial environments, with high reliability and stability, ensuring the stable operation of industrial automation systems and reducing the need for faults and maintenance.
Easy to maintain and upgrade: With a simple and easy-to-use interface and operation panel, it is convenient for users to maintain and upgrade. It also supports remote monitoring and debugging functions, reducing the difficulty of use and maintenance costs, and improving the user experience.
