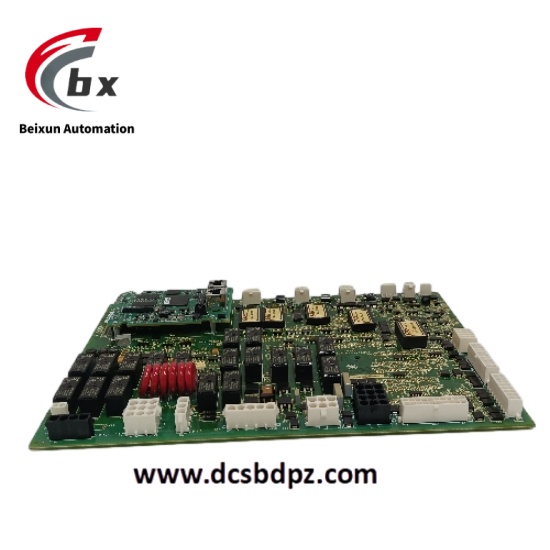

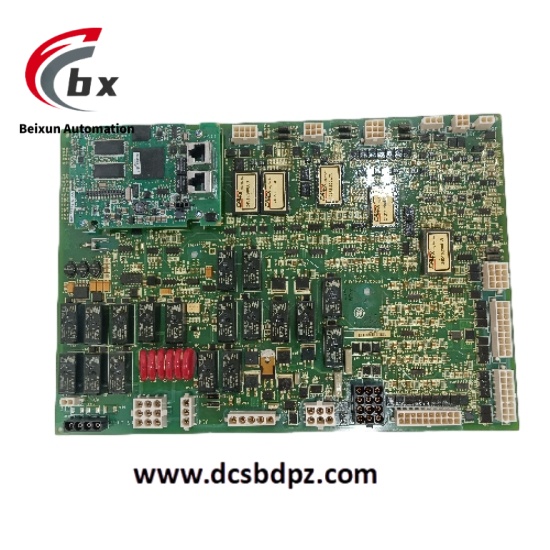

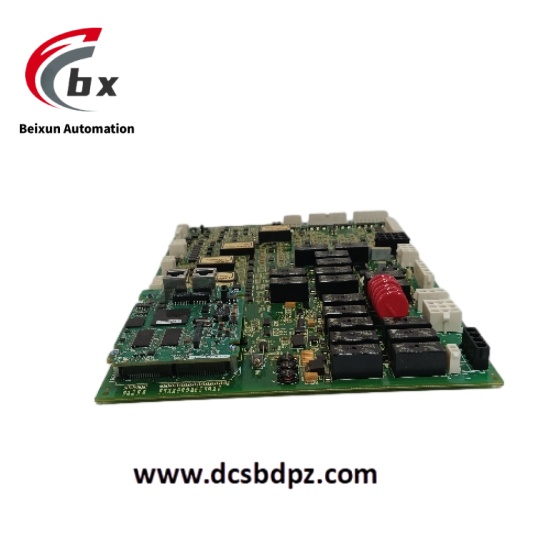

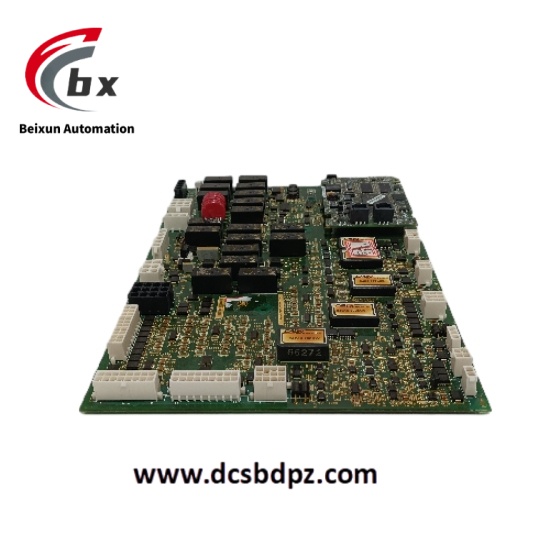

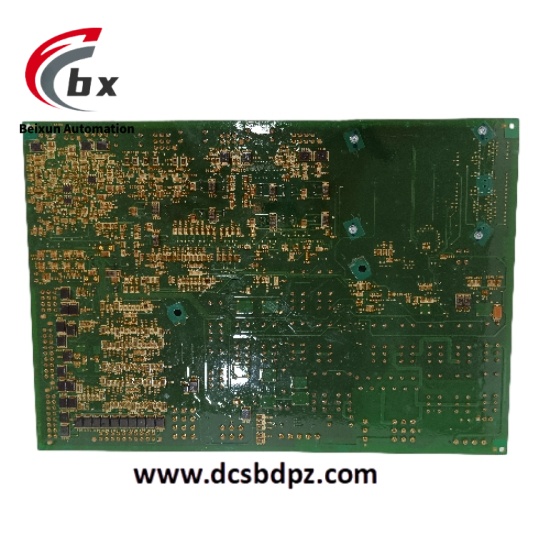

GE IS200AEPAH1ACB Analog input module

Specific Parameters

Input Parameters
Number of Input Channels: 16 channels (independently isolated)
Input Type: 4-20mA DC current signal
Input Range: 0-24mA (overload tolerance)
Resolution: 16-bit
Accuracy: ±0.1% full scale (at 25°C); ±0.2% full scale (at 0-60°C)
Sampling Rate: 10Hz (single channel); 160Hz (all channels synchronous)
Channel Isolation: 1kVAC between each channel and ground (1 minute)
Electrical Parameters
Supply Voltage: 24VDC (±10%)
Power Consumption: ≤6W under normal operation; ≤8W at maximum load
Common Mode Rejection Ratio: ≥90dB (50/60Hz)
Differential Mode Rejection Ratio: ≥80dB (50/60Hz)
Output Interface: Dual-port Ethernet (for connecting to controller)
Environmental & Mechanical Parameters
Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing)
Protection Class: IP20 (module itself)
Dimensions: 32mm (W) × 130mm (H) × 180mm (D)
Weight: Approximately 350g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)

Product Performance

IS200AEPAH1ACB adopts a 16-bit high-precision A/D conversion chip, maintaining ±0.2% full scale accuracy over the entire temperature range, ensuring the accuracy and repeatability of analog signal acquisition to meet the strict monitoring requirements of industrial processes. Each input channel has independent electrical isolation, effectively suppressing on-site electromagnetic interference, with common mode and differential mode rejection ratios reaching high industrial standards, adapting to high-interference industrial environments.

Supporting hot-swap function, the module can be installed and replaced without stopping the system, significantly reducing downtime for maintenance and improving system availability. It integrates comprehensive self-diagnosis functions, which can detect channel open circuit, short circuit, overload and power undervoltage faults, transmit fault status to Mark VIe controller in real-time via Ethernet interface, and trigger alarm prompts, facilitating maintenance personnel to quickly locate problems. It is seamlessly compatible with GE Mark VIe control system, with data transmission delay ≤50ms, ensuring the real-time performance of monitoring data and supporting system-level centralized monitoring and data management.
