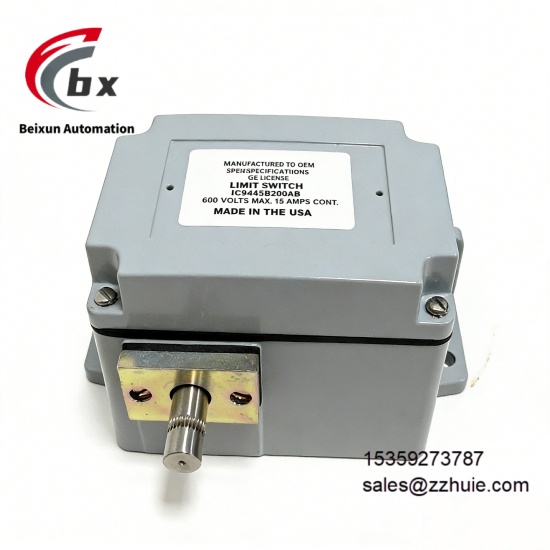

GE IC9445B200AB Industrial grade limit switch
Specific Parameters
Device Type Industrial Limit Switch
Operation Mode Lever Type
Contact Type Standard Contact
Number of Circuits 2 Circuits
Protection Level IP67
Rated Voltage 120/240VAC or 125VDC
Input Voltage Range 85 to 264VAC or 100 to 300VDC
Rated Current 15A
Input Power 90VA with AC, 50W with DC
Load Capacity 30 watts
Communication Interface RS485 Serial Port
Operating Temperature Range -40℃ to 70℃
Storage Temperature Range -40℃ to 85℃
Relative Humidity 5% to 95%, Non-Condensing
Mounting Type Surface Mounting
Overall Dimensions 146mm×75mm×35mm
Weight 0.1kg
Terminal Type Screw Terminal
Housing Material Cast Aluminum
Calibration Function Automatically performs A/D calibration at power up, and repeats calibration periodically to compensate for changes in ambient temperature
Product Performance
Precise Detection Performance: Adopts lever-type operation structure, can accurately detect the end point or specific position of mechanical movement, with fast trigger response and no deviation, can accurately realize circuit on-off control, ensuring the precise operation of industrial automation processes.
Waterproof and Protection Performance: The protection level reaches IP67, with excellent waterproof performance, can operate stably in humid, dusty and other harsh industrial environments, effectively resisting the erosion of external environment on the equipment, extending the service life of the equipment.
High Reliability Performance: Adopts cast aluminum housing and high-quality contact components, with long mechanical and electrical life, passed strict industrial tests, with overvoltage and overcurrent protection measures, strong anti-interference ability, and no faults during long-term operation.
Flexible Adaptability Performance: Supports RS485 serial communication, can be seamlessly connected to GE series PLC, DCS and various industrial control equipment, compatible with various industrial control scenarios, and can complete integration without additional adaptation equipment.
Convenient Installation Performance: Adopts surface mounting method, compact structure, small size, simple installation process, can quickly complete on-site deployment, adapts to the installation needs of different industrial equipment, and reduces installation costs.
Stable Operation Performance: The wide temperature design can operate stably in the range of -40℃ to 70℃, adapting to the temperature needs of different regions and different industrial scenarios, with a wide relative humidity adaptation range, no influence of condensation, and strong operation stability.
Intelligent Calibration Performance: Automatically performs A/D calibration at power up, and repeats calibration periodically to compensate for changes in ambient temperature, ensuring that the detection accuracy is not affected by the environment, and ensuring the accuracy of long-term operation.
Easy Maintenance Performance: Modular structure design, easy to disassemble and maintain, equipped with status indication function, can quickly judge the operation status of the equipment, simple fault location, reducing operation and maintenance costs and downtime.
