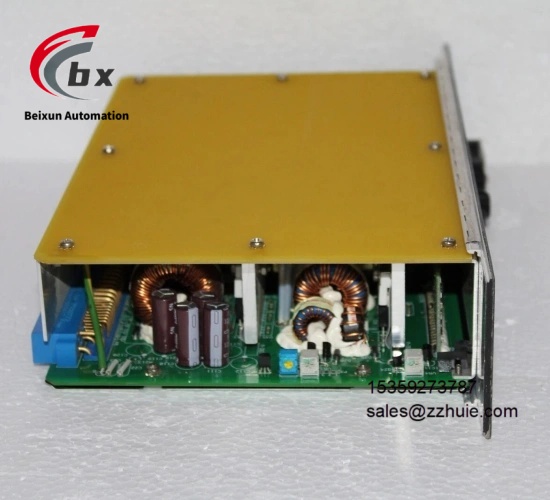

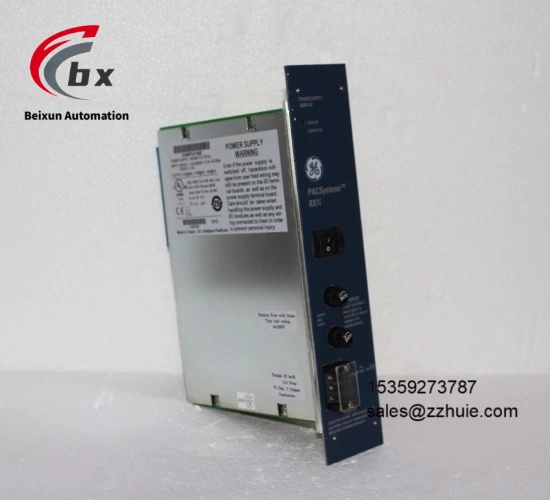

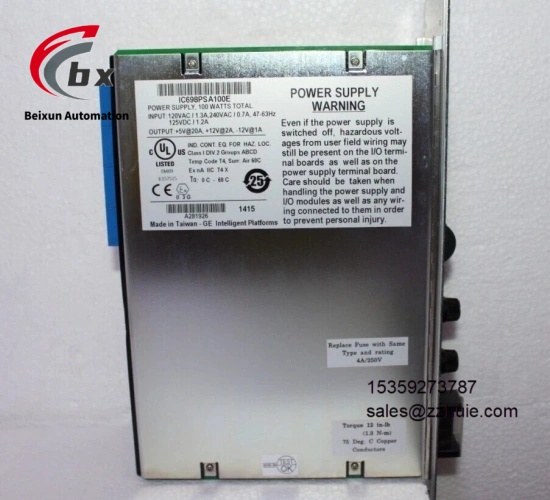

GE IC698PSA100E Switching power module

Specific Parameters

Brand GE

Product Series RX3i Series Industrial Control System Power Supply Modules

Product Type Industrial-grade Switching Power Supply Module

Model IC698PSA100E

Input Voltage Range AC 85-264V or DC 120-370V (Wide Voltage Input)

Output Voltage DC 24V

Output Power 100W

Output Current Maximum 4.2A

Voltage Regulation Accuracy ±1% (Full Load)

Ripple and Noise ≤120mVp-p

Operating Temperature Range 0℃ – 60℃

Storage Temperature Range -40℃ – 85℃

Relative Humidity 5% – 95% Non-condensing

Protection Level IP20 (Module-level)

Electrical Isolation 2500V AC isolation between input and output (1 minute)

Installation Method GE RX3i Series Standard Rack Slot Mounting

Dimensions 89mm×152mm×127mm (L×W×H)

Weight Approximately 0.9kg

Efficiency Typical ≥88% (Full Load, 230V AC Input)

Certification CE, UL, CSA, IEC 61010-1, IEC 61010-2-201

Protection Functions Overvoltage protection (28V DC ±0.5V), Overcurrent protection (5A ±0.5A), Short-circuit protection (automatic recovery), Overheating protection (75℃ ±5℃)

Alarm Functions Power failure alarm (dry contact output), Overload alarm

Product Performance

Supports wide voltage input, compatible with AC 85-264V and DC 120-370V input specifications, can adapt to power supply environments of different regions and types, with extremely strong versatility

High output voltage regulation accuracy, ±1% full-load regulation accuracy combined with low ripple and noise design, can provide pure and stable power supply for control systems and I/O modules, ensuring module operation accuracy

Integrates multiple protection functions including overvoltage, overcurrent, short-circuit and overheating. It can quickly cut off output or alarm in case of failure, avoiding fault expansion and protecting the safety of backend control system equipment

High electrical isolation design between input and output, combined with industrial-grade anti-electromagnetic interference circuit, can effectively resist on-site electromagnetic radiation and surge impact, ensuring power supply stability

Equipped with power failure and overload alarm functions, alarm signals can be connected to the control system, facilitating operation and maintenance personnel to grasp the power supply operation status in real time and handle faults in a timely manner

Wide operating temperature range of 0℃ – 60℃, industrial-grade rugged packaging design, can long-term stable operation in complex industrial sites with high temperature, high humidity and multiple interferences, with strong environmental adaptability

Deeply compatible with the GE RX3i series control system, plug-and-play, no additional configuration required, simplifying the system integration process

High-reliability design, MTBF ≥2,500,000 hours, fully meeting the rigorous power supply needs of 24-hour uninterrupted operation in industrial sites
