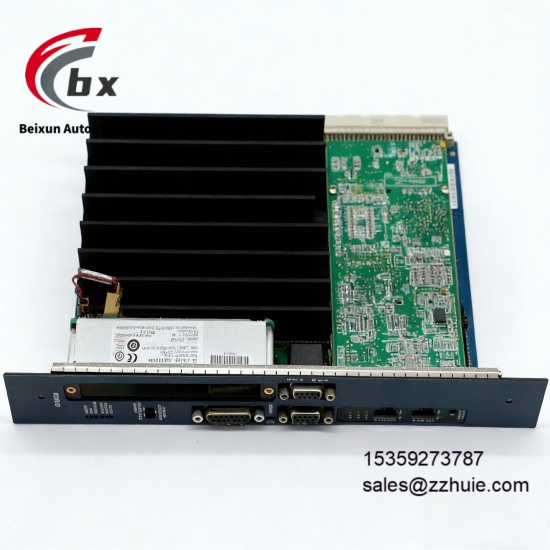

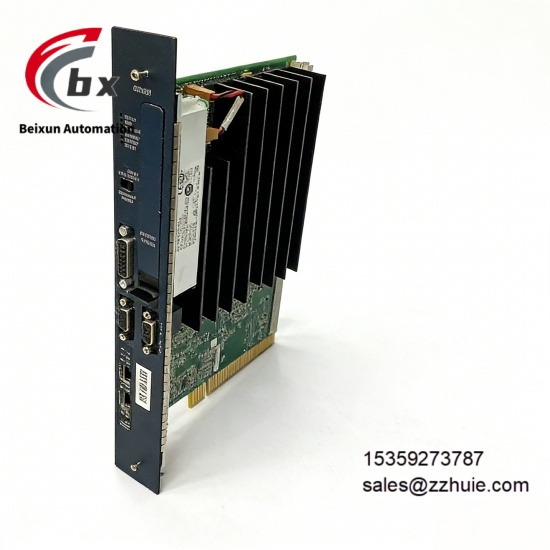

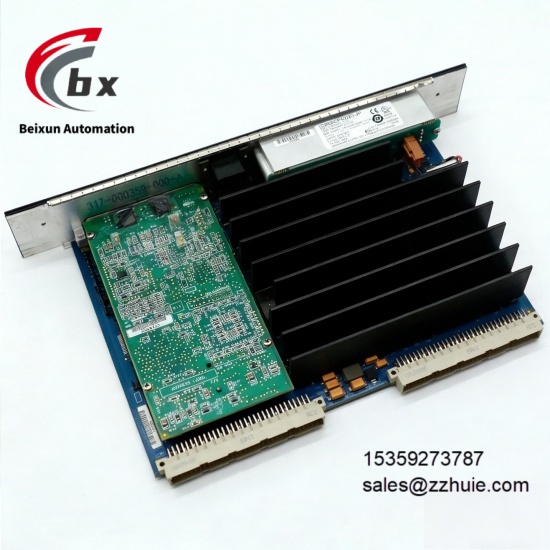

GE IC698CPE030 Central Processing Unit (CPU) module
Specific Parameters
Processor Type 600 MHz Pentium-M Microprocessor
User Memory 64MB RAM; 64MB Non-volatile Flash User Memory
Boolean Execution Speed 0.069ms per 1000 Boolean Contacts/Coils
Program Block Support Up to 512 Program Blocks, Each Up to 128KB
I/O Expansion Capacity Supports Up to 2560 I/O Points; Compatible with Series 90-70 Discrete, Analog I/O and VME Modules
Communication Interfaces 2 Full-Duplex 10/100BaseT/TX Ethernet Ports (RJ45); 3 Isolated Serial Ports (1 RS-485, 2 RS-232, including 1 Ethernet Station Manager RS-232 Port)
Communication Protocols Supports SRTP, EGD, Modbus TCP, Modbus RTU Slave, SNP, etc.
Operating Voltage +5VDC (Nominal); +12VDC (0.003A Nominal); -12VDC (0.003A Nominal)
Operating Current 3.2A Nominal at +5VDC
Operating Temperature Range 0℃ to 50℃
Storage Temperature Range -40℃ to 70℃
Relative Humidity 5% to 95%, Non-Condensing
Data Format IEEE 32-bit Floating Point; Supports Bit-in-Word Referencing
Mounting Type Standard 35mm DIN (TS35) Rail Mounting
Overall Dimensions 152mm×102mm×51mm
Weight Approximately 0.45kg
Certification Standards Complies with CE, UL, CSA Certifications, RoHS Compliant
Memory Retention Supports Battery Backup (Requires IC698ACC701 Lithium Battery Pack) to Ensure No Data Loss of Programs and Data When Power is Off
Network Connections Supports Up to 16 Web Server and FTP Connections; Supports SNTP Time Synchronization (Firmware Version 5.00 and Above)
Firmware Upgrade CPU and module firmware can be upgraded via Winloader through RS-232 or RS-485 serial ports
Product Performance
High-Speed Computing Performance: Adopts 600MHz Pentium-M microprocessor with Boolean execution speed of 0.069ms per 1000 Boolean contacts/coils, supports firmware-based floating-point arithmetic, can quickly complete complex logic operations, mathematical operations and multi-task processing without delay or lag, meeting the real-time requirements of medium and large-scale industrial automation control.
Large-Capacity Configurable Storage Performance: Equipped with 64MB RAM and 64MB non-volatile flash user memory, supports configurable data and program memory, can store complex control programs, configuration information and a large amount of operation data, supports bulk memory access and auto-located symbolic variables, meeting the program development and data processing needs of medium and large-scale control systems.
High Expansion Performance: Supports up to 2560 I/O point expansions, compatible with Series 90-70 discrete, analog I/O and VME modules, adapts to various expansion modules of the PACSystems RX7i series, and can flexibly expand system functions without replacing the CPU module, adapting to medium and large-scale automation control systems of different scales.
Multi-Protocol High-Speed Communication Performance: Built-in 2 Ethernet ports and 3 isolated serial ports, supports multiple communication protocols, has a built-in network switch, which can realize high-speed data transmission, seamlessly connect to SCADA, HMI and other industrial automation equipment, support remote monitoring, configuration and data interaction, and realize centralized management and control.
Stable Operation Performance: Complies with industrial-grade design standards, has comprehensive self-diagnostic functions, can complete system self-test during initialization, the battery backup function ensures no data loss when power is off, can operate stably in the operating temperature range of 0℃ to 50℃ and complex industrial environments, has strong anti-interference ability, and operates without faults for a long time.
Easy Maintenance Performance: Adopts modular design, supports online maintenance and remote debugging, is equipped with LED status indicators to intuitively check the module operation status, supports fault self-diagnosis, can quickly locate fault points, and the modular structure is easy to disassemble and replace, reducing operation and maintenance costs.
Flexible Programming Performance: Compatible with IEC 61131-3 standard, supports multiple programming languages such as Ladder Diagram, C Language, Structured Text and Function Block Diagram, supports test edit mode, can test and modify content while the program is running, adapts to different users’ programming habits, and facilitates program development, debugging and modification.
High Compatibility Performance: Adopts VME64 standard format backplane communication, compatible with related modules of the Series 90-70 series and various modules of the PACSystems RX7i series, can be seamlessly integrated into existing industrial automation systems, no additional adaptation equipment is required, reducing system upgrade and integration costs.
