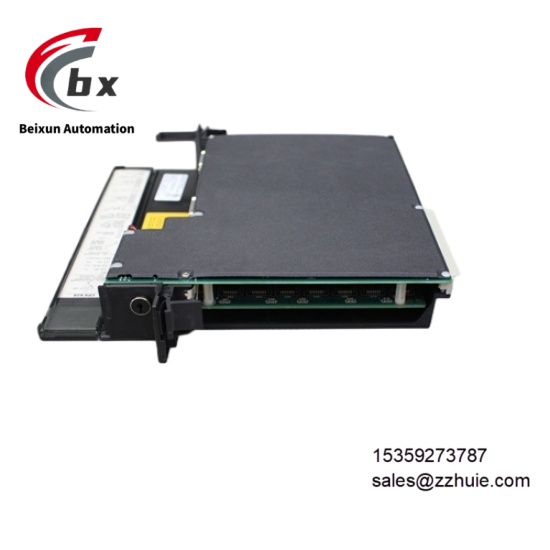

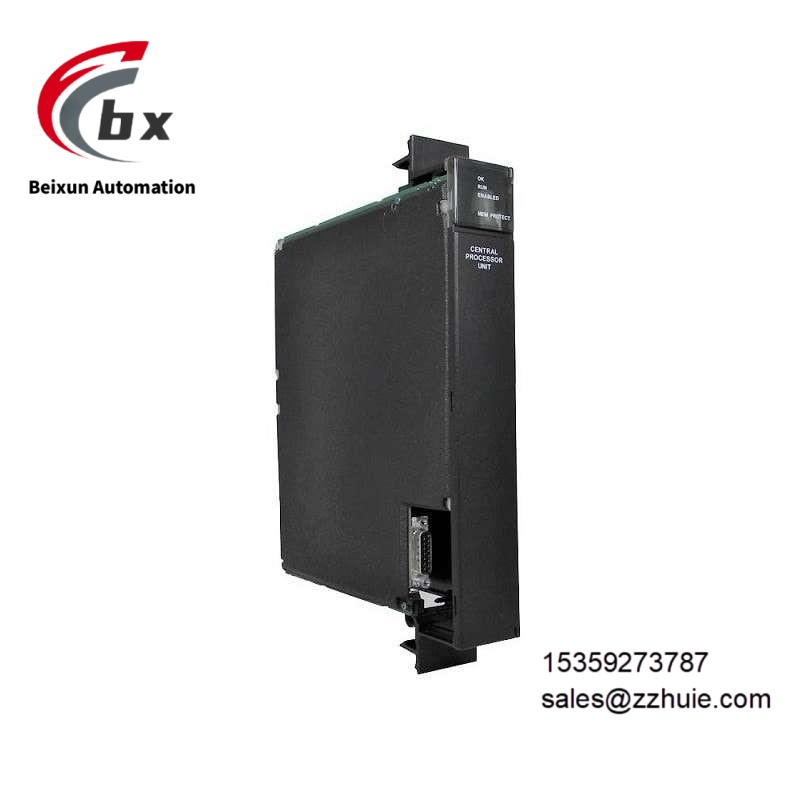

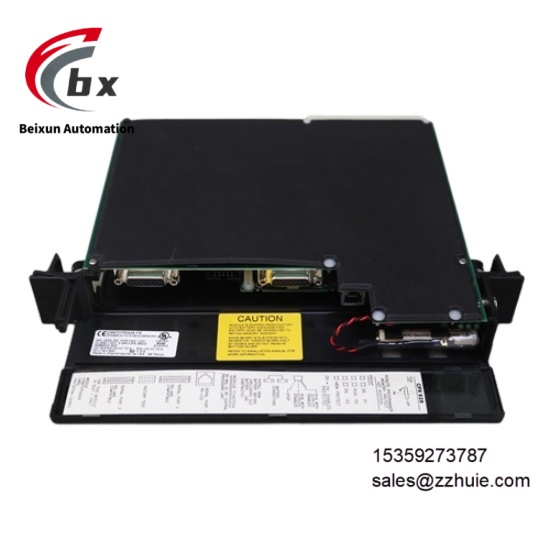

GE IC697CPX928 Central Processing Unit (CPU) module

Specific Parameters

Brand GE (General Electric, USA)

Product Series GE Series 90-70 Series

Product Type Central Processing Unit (CPU) Module, Industrial Control Module, PLC Core Component, Original Spare Part

Model GE IC697CPX928

Country of Origin USA (Produced by GE original factory)

Compatible Devices GE Series 90-70 PLC, IC697 Series Discrete/Analog I/O Modules, IC660/661 Bus Controllers, IC697 LAN Interface Modules

Microprocessor 80486DX4

Clock Frequency 96MHz

Boolean Function Scan Rate 0.4 Microseconds per Boolean Function

Memory 6MB Battery-Backed RAM (Stores User Programs, Configuration Data and Register Values) + 256KB Non-Volatile User Flash Memory (Stores CPU Firmware and Additional User Data)

Backup Battery Requires IC697ACC701 Lithium Battery Backup, Can Retain RAM Data for Up to 6 Months

I/O Capacity Supports Up to 12,000 I/O Points (Any Mix of Discrete and Analog), Including Up to 8,000 Analog I/O Points

I/O Type Supports Digital Input/Output, Analog Input/Output, Compatible with 32-Bit Floating-Point Data

Serial Ports 1 RS232 Serial Port, 2 RS485 Serial Ports

Communication Protocols Supports SNP (Slave), Uninterrupted SNP (Slave), SNPX, RTU Protocols, Expandable to EtherNet/IP, Profinet, Modbus Protocols

Supply Voltage 5VDC

Current Consumption 3.1Amps

Operating Temperature Range 0℃ to 60℃ with Forced Air Cooling (70CFM Fan); 0℃ to 50℃ Without Forced Air Cooling

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Mounting Method Single-Slot Rack Mounting, Can Only Be Installed in Slot 1

Physical Dimensions Conforms to GE Series 90-70 Module Standard Dimensions

Physical Weight Conforms to GE Series 90-70 Module Standard Weight

Status Indication 7 On-Board LED Indicators, Displaying Device Operating Status

Control Switch Three-Position Run/Stop Control Switch, Equipped with Memory Protection Key Switch

Programming Method Programmable via MS-DOS, Windows 95, Windows NT Systems, Supporting Serial, Parallel, Ethernet Interface Connection

Protection Type Anti-Electromagnetic Interference, Data Password Protection, Physical Key Switch Memory Protection

Core Functions High-Speed Data Processing, Floating-Point Operations, Program Storage and Execution, Multi-Module Communication, I/O Expansion Control, Firmware Online Upgrade

Product Material Industrial-Grade Flame-Retardant Circuit Board, Metal Protective Shell

Customizable No

Certification Standards Complies with Relevant Certification Standards for Industrial PLC Modules

Warranty Period 12 Months

Product Performance

GE IC697CPX928 is an original GE module with strong adaptability. It can be seamlessly integrated into GE Series 90-70 PLC systems, with convenient single-slot installation, no jumper settings required, and configuration can be completed through software, which can stably realize high-speed data processing and logic control in industrial control scenarios.

Equipped with a 96MHz 80486DX4 microprocessor, it has a fast Boolean function scan rate, supports floating-point operations and 32-bit instructions, has high data processing efficiency, can accurately execute complex control logic, and meets the control needs of large-scale industrial control systems.

It has sufficient memory capacity, is equipped with lithium battery backup, can stably store user programs and configuration data for a long time, supports a large number of I/O point expansion, is compatible with various GE series modules, has rich communication interfaces, can realize multi-device collaboration and remote monitoring, and has strong expansibility.

Industrial-grade packaging design, excellent anti-electromagnetic interference ability, strong wide temperature adaptability, can operate stably under different working conditions with or without forced air cooling, is equipped with status indicators and fault protection functions, which is convenient for quick fault diagnosis and maintenance, and has high operational reliability.
