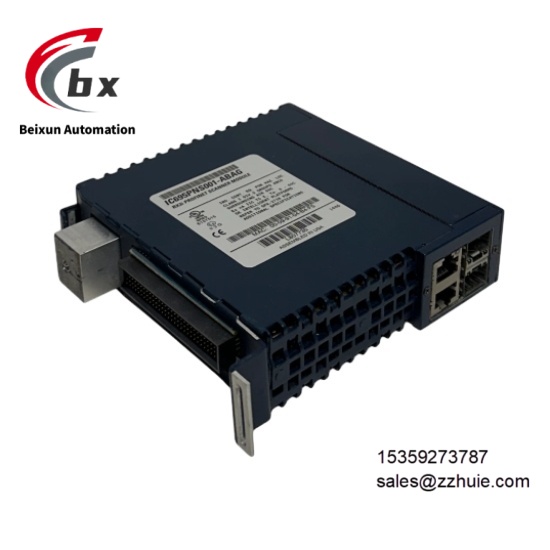

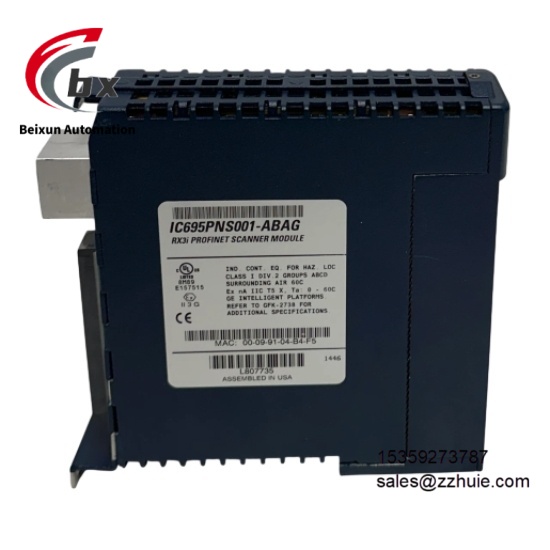

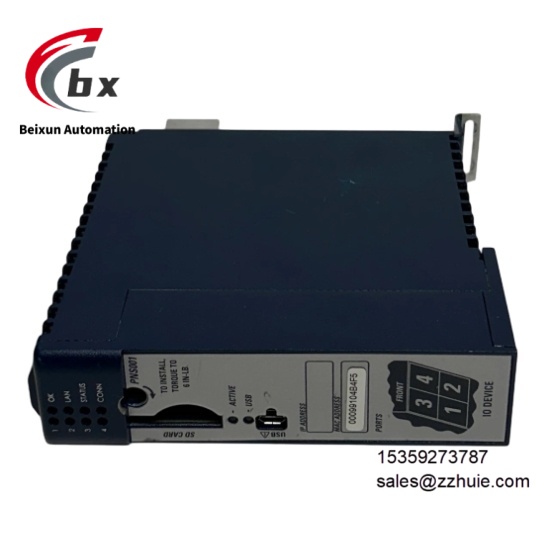

GE IC695PNS001 PROFINET scanner module
Specific Parameters
Brand GE (General Electric), Product Series GE PACSystems RX3i Series
Product Type PROFINET Scanner Module, Industrial Communication Module, GE Original Spare Part
Model GE IC695PNS001
Country of Origin United States (Produced by GE Fanuc original factory)
Compatible Devices GE PACSystems RX3i Series Main Control Modules, Series 90-30 I/O Modules, RX3i Series I/O Modules, PROFINET I/O Controllers
Core Functions Remote I/O Rack Connection, Data Retrieval and Output, PROFINET Communication Management, Module Configuration Management
Module Type PROFINET Scanner
Slot Occupancy 1 (Single Slot)
Backplane Support Universal Backplane
Communication Protocols Supports PROFINET Media Redundancy Protocol (MRP), PROFINET v2.3 Class A
Network Interfaces 2 RJ-45 Shielded Twisted Pair Interfaces (10/100/1000 Mbps), 2 SFP Cages (Supports User-Supplied SFP Devices)
USB Interface 1 Micro-B USB Interface (USB 2.0, for Firmware Upgrade Only)
SD Card Support Supports SD Cards and SDHC Cards (for I/O Device Name Migration)
Power Requirements 3.3VDC: 1.2A without SFP devices, maximum 1.9A (2 SFP devices, 0.35A each); 5VDC: maximum 1.1A
Operating Temperature Range 0℃ to 60℃ (derated to 57℃ when 100Mb fiber SFPs are installed or copper SFPs are operating at 1Gb)
Protection Class IP30
Physical Dimensions 3.5cm×14.7cm×13.5cm
Physical Weight 0.44kg
Mounting Method Standard RX3i Rack Mounting
Configuration Software Requires Proficy Machine Edition (PME) Version 8.50 SIM 2 or Later
I/O Update Rate Configurable (1ms, 2ms, 4ms, 8ms, 16ms)
Status and Control Bits 32 Input Status Bits, 32 Output Control Bits
Product Material Corrugated Aluminum Reinforced Housing, Industrial-Grade Insulation Material
Customizable No
Certification Standards Complies with CE, UL, cUL, BS, ISO Relevant Certification Standards
Warranty Period 12 Months
Product Performance
GE IC695PNS001 is an original GE device with strong adaptability, which can be seamlessly integrated into GE PACSystems RX3i Series automation systems, with convenient installation and maintenance. The product has high communication rate, supports 10/100/1000 Mbps network rate, the I/O update rate can be flexibly configured, and can realize high-speed data interaction. The product supports multiple network topologies such as daisy-chain, star, and ring (MRP), has media redundancy function, and can manage I/O status according to module configuration when network communication is interrupted, with outstanding reliability. The product has strong anti-electromagnetic interference and anti-vibration capabilities, solid structure, can operate continuously and stably in harsh industrial environments, supports on-site firmware upgrade and I/O device name migration, greatly improves system operation and maintenance efficiency, and ensures the stability and continuity of remote communication.
