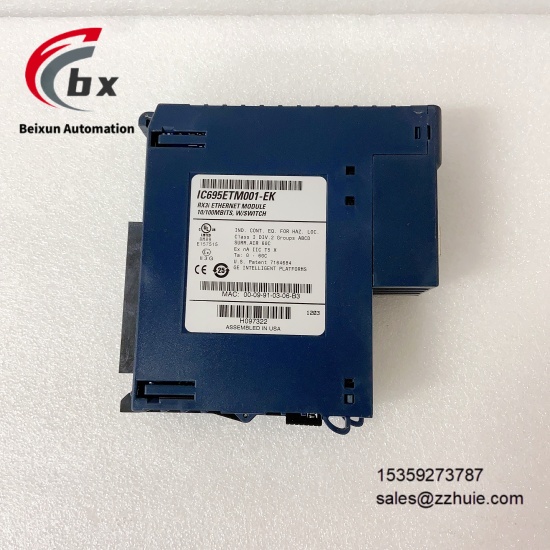

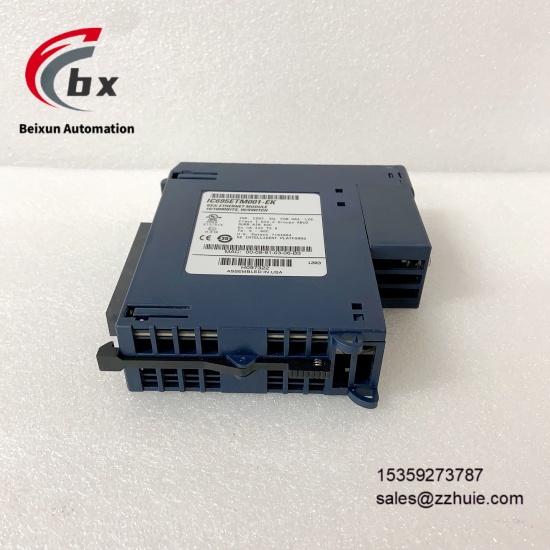

GE IC695ETM001-EK Ethernet communication module
Specific Parameters
Brand General Electric (GE, American Brand, GE Fanuc)
Product Series PACSystems RX3i Series
Product Type Industrial-Grade Ethernet Communication Module
Model IC695ETM001-EK
Core Processor 200MHz Dedicated Ethernet Processor
Ethernet Ports 2 10/100Base-TX adaptive RJ45 ports, shielded
Data Transmission Rate 10/100Mbps, Auto-negotiation supported
Supported Protocols Modbus TCP/IP, EtherNet/IP, PROFINET IO, SNMP, SRT, EGD
Supply Voltage 24VDC
Supply Current Maximum 300mA
Power Consumption Maximum 7.2W

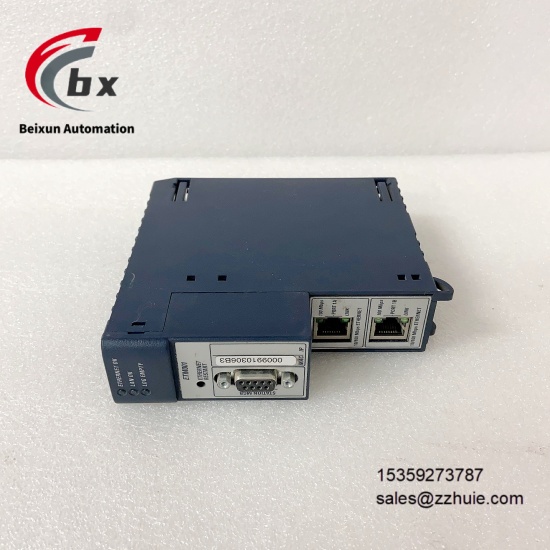

Connectors 1 9-pin female D-type RS-232 Station Manager port, 2 8-pin female shielded RJ45 ports
Number of IP Addresses 1 unique IP address, supporting redundant IP addressing configuration
Built-in Functions Ethernet switch, supporting crossover detection and auto speed sensing
LED Indicators Ethernet OK, LAN OK, Log Empty, Port Activity and Speed Indicators
Operating Temperature Range -40℃ to 70℃
Storage Temperature Range -40℃ to 85℃
Relative Humidity 5% to 95%, No Condensation
Protection Level IP20
Physical Dimensions 120mm×100mm×35mm (Height×Width×Depth)
Physical Weight Approximately 0.5kg

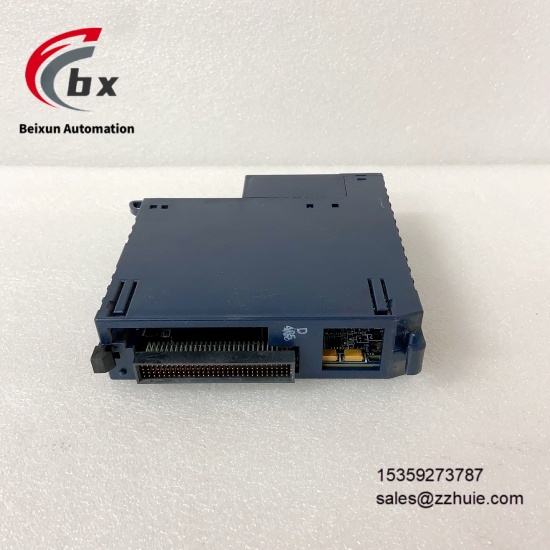

Compatibility Compatible with all specifications of CPU modules in PACSystems RX3i series, supporting RX3i universal backplane
Firmware Upgrade Supports on-site upgrade via RX3i CPU module using Winloader software
Additional Functions Supports SNTP time synchronization (requires CPU version 5.00 and above), built-in manual restart button
Product Performance
Equipped with a 200MHz dedicated Ethernet processor, combined with 10/100Mbps adaptive transmission rate, it realizes high-speed data interaction without data loss or delay, ensuring the real-time transmission needs of industrial control signals.
Two RJ45 Ethernet ports with a built-in switch support auto-negotiation of speed and crossover detection, no external transceiver required, and can be directly connected to the Ethernet network, simplifying on-site wiring and improving networking flexibility.
Compatible with multiple mainstream industrial communication protocols, it can flexibly connect to upper computers, HMI devices, distributed I/O and other brand industrial control systems, realizing data sharing, remote monitoring and centralized management.
Supports redundant IP addressing configuration, which can assign the same redundant IP to corresponding Ethernet modules of two different controllers. Under application logic control, only the module of the active controller can use this IP, improving system communication reliability.
It has an on-site firmware upgrade function, which can complete firmware update through the RX3i CPU module without disassembling the module. Built-in self-diagnosis and LED status indicators can quickly locate communication faults and port abnormalities, reducing operation and maintenance costs.
Wide temperature operating range (-40℃ to 70℃) combined with industrial-grade anti-electromagnetic interference design can adapt to harsh industrial environments such as high and low temperatures. IP20 protection level prevents foreign objects from entering, ensuring long-term stable operation of the module.
Seamlessly compatible with RX3i series CPU modules, supporting universal backplane installation, it can be quickly integrated into the existing RX3i control system without additional adaptation and modification, improving system expansion efficiency.
Supports SNTP time synchronization function, which can synchronize with the SNTP time server in the Ethernet network, ensuring the time consistency of the entire control system, facilitating fault tracing and data log management.
