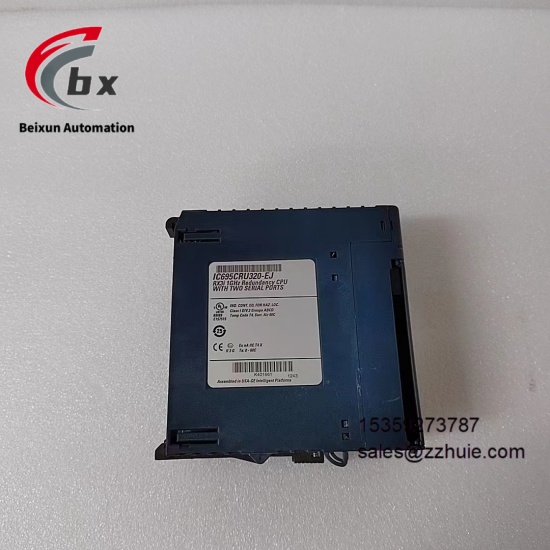

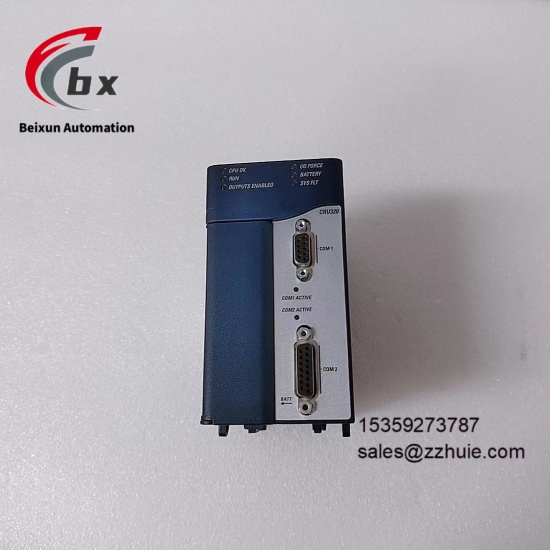

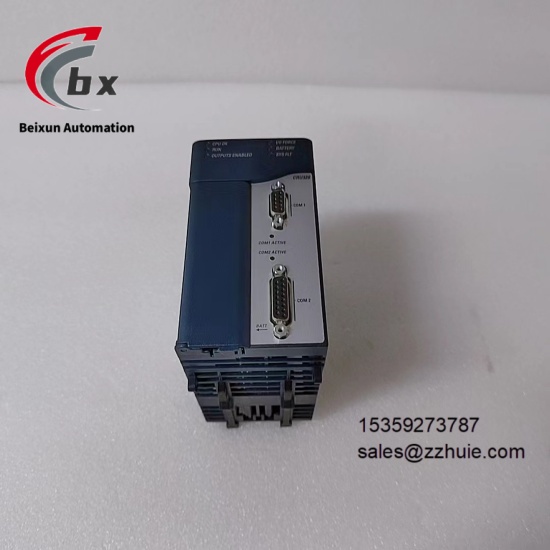

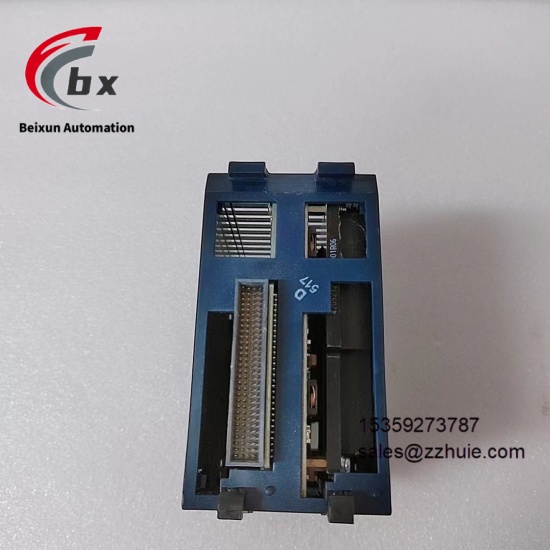

GE IC695CRU320-EJ Industrial grade CPU module
Specific Parameters
Brand GE
Product Series RX3i Series Industrial Control System CPU Modules
Product Type Industrial-grade CPU Module
Model IC695CRU320-EJ
Processor 32-bit industrial-grade multi-core processor
User Memory 8MB Program Memory, 16MB Data Memory
Supported Programming Languages Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart, Instruction List
Communication Interfaces 2 Ethernet Interfaces (10/100/1000Mbps), 1 RS-485 Interface
Supported Communication Protocols Ethernet/IP, Modbus TCP, Modbus RTU, PROFINET (optional)
Maximum I/O Points 8192 Points
Operating Voltage DC 24V ±10% (Powered by System Rack)
Operating Temperature Range 0℃ – 60℃
Storage Temperature Range -40℃ – 85℃
Relative Humidity 5% – 95% Non-condensing
Protection Level IP20 (Module-level)
Electrical Isolation 2500V AC isolation between communication interface and backplane (1 minute)
Installation Method GE RX3i Series Standard Rack Slot Mounting (Must be installed in Slot 1 of the rack)
Dimensions 89mm×152mm×127mm (L×W×H)
Weight Approximately 1.0kg
Power Consumption Typical 12W, Maximum 18W
Certification CE, UL, CSA, IEC 61131-3, IEC 61010-1
Diagnostic Functions CPU fault diagnosis, Memory fault diagnosis, Communication fault diagnosis, Power supply fault monitoring, I/O module communication abnormality diagnosis
Protection Functions Power failure data protection (built-in super capacitor, continuous power supply ≥72 hours), Program password protection, Overcurrent protection
Redundant Function Supports hot standby redundant configuration (requires redundant kit)
Product Performance
Equipped with a 32-bit multi-core industrial processor, it has fast computing speed and short instruction execution time, which can efficiently process complex control logic and meet the multi-task concurrent computing needs of large-scale industrial control systems
Equipped with large-capacity user memory, it can store complex control programs and massive process data, support multi-task program operation, and improve system control flexibility
Compatible with multiple international standard programming languages, supporting graphical and text-based programming, adapting to the programming habits of different engineers, and simplifying the program development and debugging process
Integrates multiple types of high-speed communication interfaces, supports multiple mainstream industrial communication protocols, and can realize high-speed data interaction with upper computers, I/O modules and third-party equipment, ensuring communication stability and real-time performance
Supports large-scale I/O expansion, with a maximum of 8192 I/O points accessible, adapting to the multi-point control needs of large industrial sites, and the system has strong scalability
Equipped with complete fault diagnosis and protection functions, real-time monitoring of system operation status, reliable protection of programs and data during power failure to avoid data loss, and support program password protection to prevent unauthorized modification
Supports hot standby redundant configuration, redundant switching time ≤10ms, which can realize uninterrupted operation of the control system, improve system reliability, and meet the needs of high-availability industrial scenarios
Wide operating temperature range of 0℃ – 60℃, industrial-grade rugged packaging design, with strong anti-electromagnetic interference capability, can operate stably for a long time in complex industrial sites, with strong environmental adaptability
Deeply compatible with the full range of I/O modules and communication modules of the GE RX3i series, plug-and-play, supporting online program download, debugging and modification, simplifying the system integration and later maintenance process
High-reliability design, MTBF ≥4,000,000 hours, fully meeting the rigorous control needs of 24-hour uninterrupted operation in industrial sites
