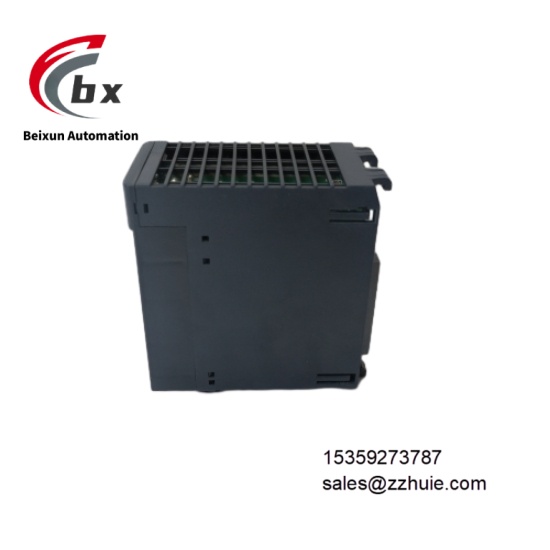

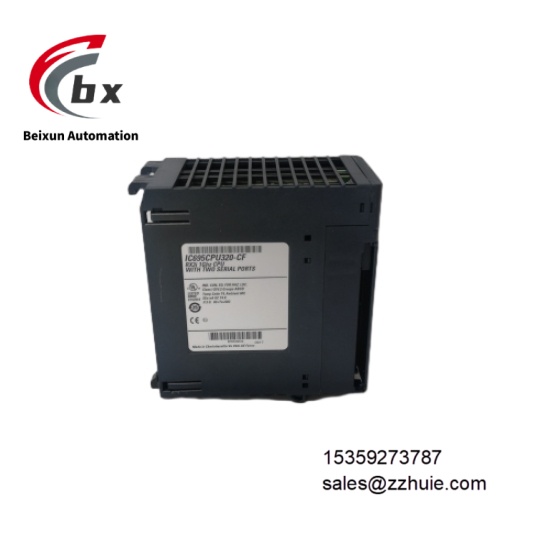

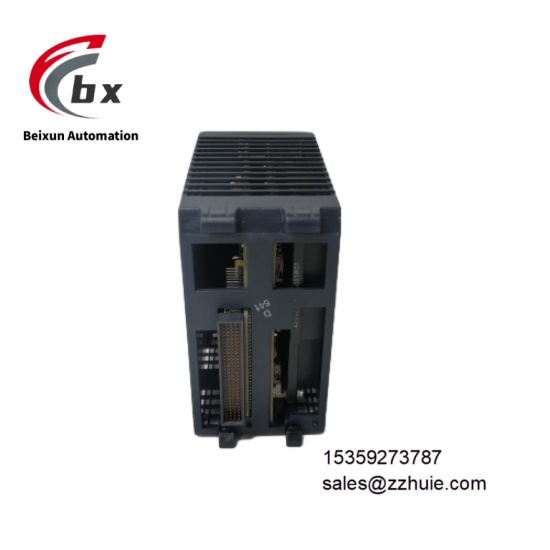

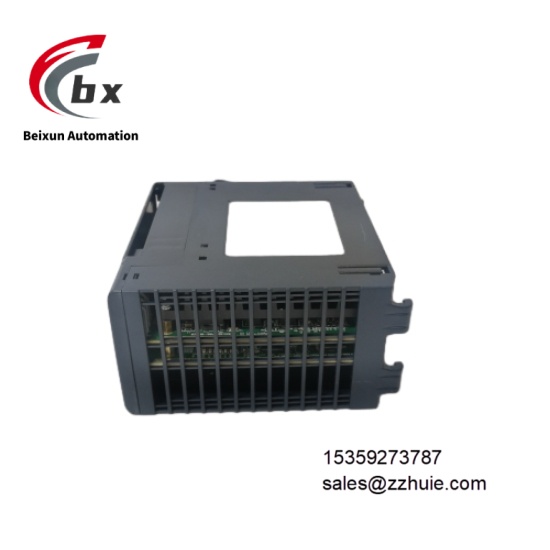

GE IC695CPU320-CF Programmable Automation Controller

GE IC695CPU320-CF Programmable Automation Controller

Specific Parameters

• Electrical Parameters：The 1GHz Intel Celeron M processor is integrated with 64MB non-volatile flash memory (for user program storage) and 64MB battery-backed RAM (for data caching). It supports 24V DC power supply with ≤15W power consumption and ±15% input voltage range. Communication interfaces include 1 RS-232 port (supporting SNP slave protocol) and 1 RS-485 port (supporting Modbus RTU master/slave mode), enabling high-speed data interaction with expansion modules via the PCI bus (transmission rate adapts to backplane specifications).

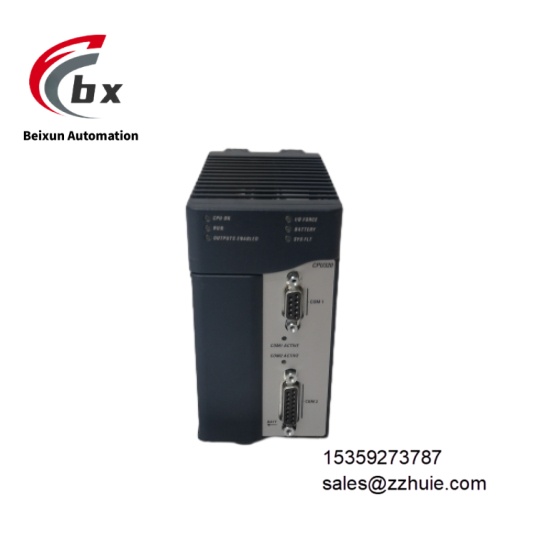

• Mechanical Parameters：The form factor complies with 3U standard rack-mounting specifications, weighing approximately 500g. It features an IP20-rated enclosure and supports vertical or horizontal installation in industrial cabinets. Status indicators (power, operation, communication, fault) facilitate on-site diagnostics.
• Compatibility Parameters：Compatible with PACSystems RX3i series backplanes and smart option modules (e.g., motion control, temperature control cards), it supports seamless migration of 90-30 series I/O modules. Expandable to 8 local racks, supporting 32K discrete and 32K analog I/O points.

Product Performance

Stable computing power: The 1GHz processor and dual-memory architecture enable a logic scan speed of 0.047ms/k-step, supporting 512 program blocks (max 128KB per block) to meet real-time execution requirements for complex control algorithms.

Rich communication protocols: RS-232/RS-485 ports support industrial protocols such as SNP and Modbus RTU, enabling direct interconnection with HMI, SCADA systems, and third-party devices, reducing the need for intermediate converters.

Reliable redundancy: Supports hot-standby redundancy configuration (with IC695CRU320 redundancy module), achieving fault switching within ≤1 logic scan cycle (minimum 3.133ms) to ensure continuous operation of critical systems.

Outstanding compatibility: Natively supports 90-30 series I/O modules, allowing phased upgrades of existing systems to the RX3i platform, reducing migration costs and downtime risks.

Strong environmental adaptability: Operates in -25℃ to +70℃, passes MIL-STD-810G vibration tests and EN 55022 Class A EMC certification, suitable for harsh environments such as heavy industry and rail transit.
