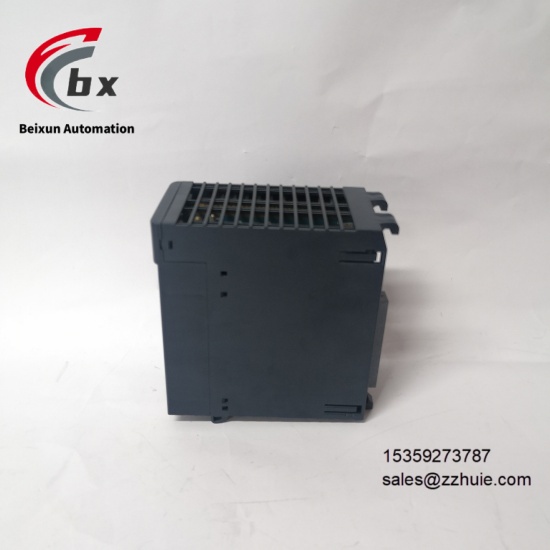

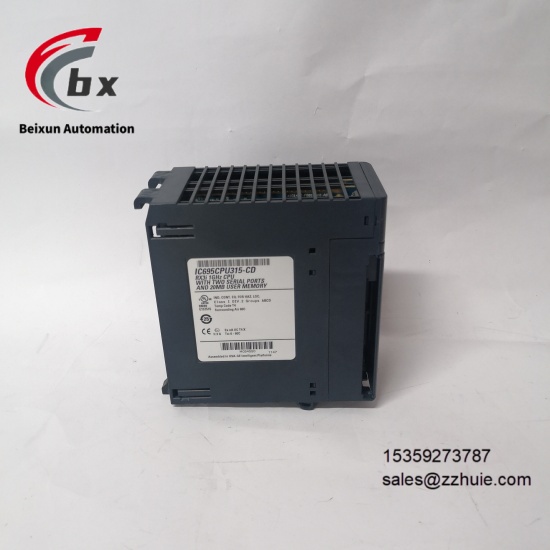

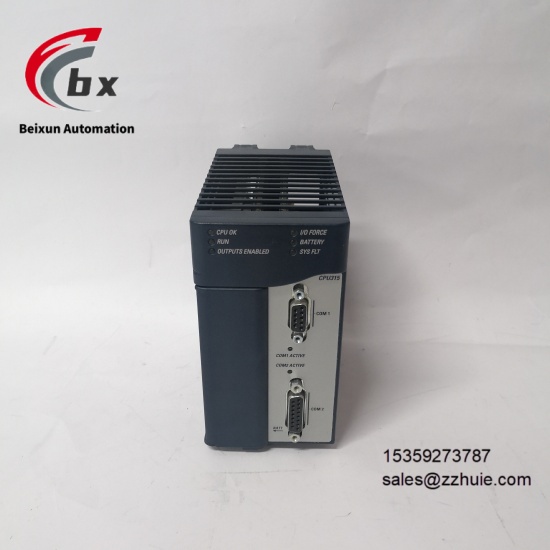

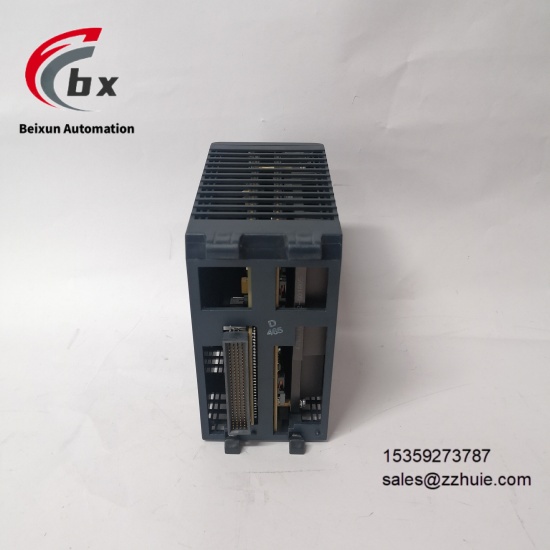

GE IC695CPU315 Controller (PAC) core module
Specific Parameters
Electrical Parameters
Operating Voltage 24VDC (±10%), supporting redundant power supply configurationProcessor Multi-core 32-bit industrial-grade processor, main frequency 1.2GHzMemory Configuration 8GB non-volatile flash memory, 2GB DDR4 RAMReal-Time Clock Built-in high-precision real-time clock with battery backup (battery life ≥5 years)Communication Protocols Compatible with EtherNet/IP, Profinet, Modbus TCP, OPC UA, DNP3.0Communication Interfaces 2 Gigabit Ethernet ports (supporting network redundancy), 1 RS-232/RS-485 serial portExpansion Capacity Supports up to 64 local I/O modules, unlimited distributed I/O nodes (based on network capacity)Programming Environment Supports GE Proficy Machine Edition software, compatible with IEC 61131-3 standard programming languagesSafety Level Complies with IEC 61508 standard, supporting SIL 2 safety applicationsCertification Standards Compliant with CE, UL, cUL, ATEX, IECEX certification standards
Mechanical Parameters
Overall Dimensions 102mm×160mm×85mm, compact design suitable for RX3i standard racksWeight Approximately 0.9kg, lightweight facilitating installation and deploymentMounting Method Rack-mounted, compatible with GE PACSystems RX3i standard chassisHousing Material Industrial-grade high-strength metal shell with anti-electromagnetic interference and dustproof performanceConnection Method Backplane bus connection + plug-in terminals, supporting quick maintenanceProtection Rating IP20, suitable for indoor industrial control cabinet environmentsStatus Indication Equipped with power, operation, fault, communication status LED indicators, supporting local status checking
Environmental Parameters
Operating Temperature 0℃ to 60℃, no performance derating over the entire temperature rangeStorage Temperature -40℃ to 85℃, meeting extreme storage and transportation requirementsRelative Humidity 5% to 95% (non-condensing), adapting to high-humidity industrial scenariosVibration Resistance Complies with IEC 60068-2-6 standard, 2g acceleration at 5Hz-500Hz frequency rangeShock Resistance Complies with IEC 60068-2-27 standard, 15g acceleration (11ms duration)EMC Compliance Complies with EN 55014-1, EN 61000 standards, low electromagnetic interference and high anti-interference capability
Product Performance
Efficient processing speed: 1.2GHz multi-core processor + large-capacity memory, execution cycle of complex control programs ≤1msReliable redundant design: Supports triple redundancy of CPU, power supply and network, system availability ≥99.999%Strong expansion capability: Compatible with hundreds of I/O modules and third-party equipment, meeting the expansion needs of complex systemsWide communication compatibility: Natively supports mainstream industrial Ethernet protocols, seamlessly connecting to DCS and SCADA systemsHigh programming flexibility: Supports ladder diagram, function block, structured text and other multi-language programming, adapting to various control logicsPowerful data processing capability: Supports massive real-time data collection, storage and analysis, providing data support for intelligent manufacturingComprehensive safety functions: SIL 2 compliant design, built-in fault self-diagnosis and safety interlock logic execution capabilityExcellent operational convenience: Supports remote programming, debugging and firmware upgrading, reducing on-site maintenance workload
