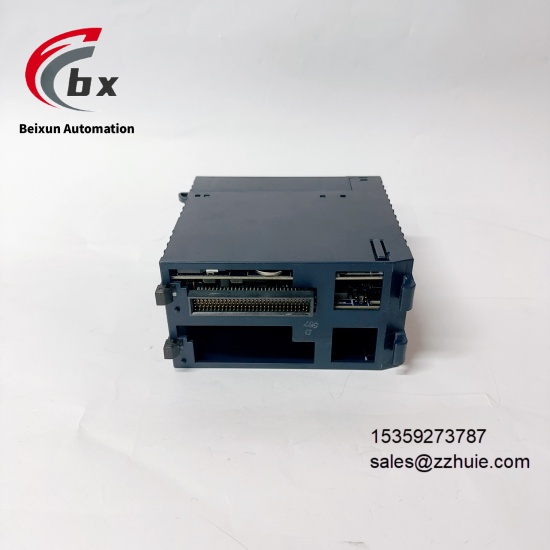

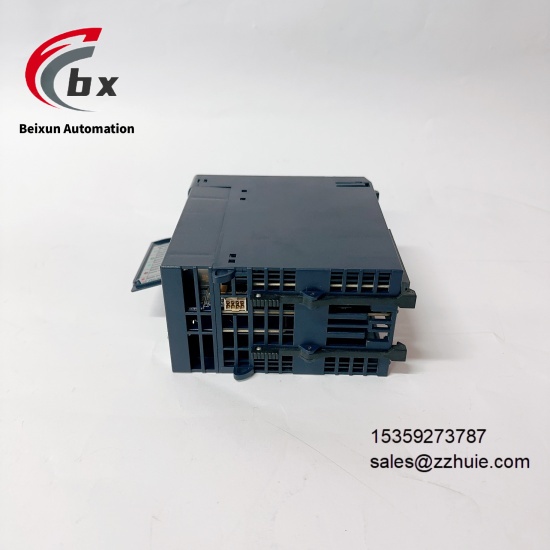

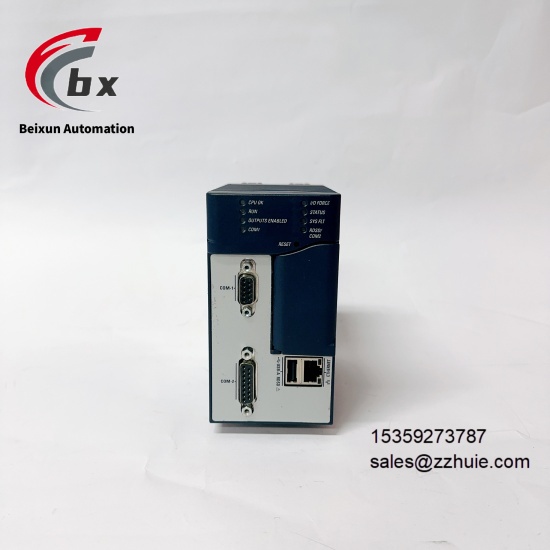

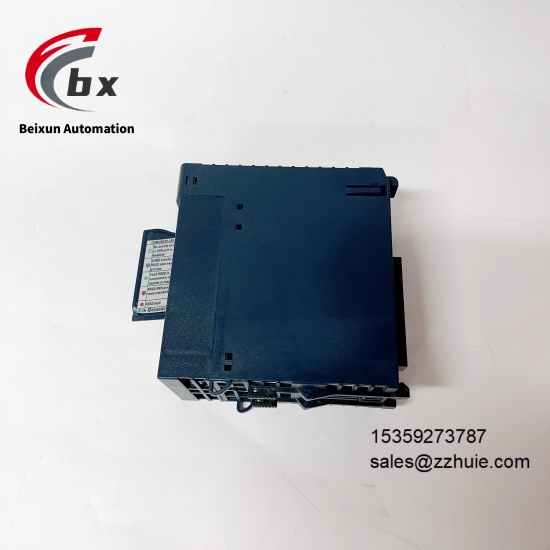

GE IC695CPE310-ABAB Controller (PAC) core module
Specific Parameters
Electrical Parameters
Operating Voltage 24VDC (±10%), supporting dual redundant power supply configurationProcessor 32-bit industrial-grade single-core processor, main frequency 1.0GHzMemory Configuration 4GB non-volatile flash memory, 1GB DDR4 RAM (with ECC verification)Real-Time Clock Built-in high-precision real-time clock with battery backup (battery life ≥5 years)Communication Protocols Compatible with EtherNet/IP, Profinet, Modbus TCP, OPC UA, DNP3.0Communication Interfaces 2 Gigabit Ethernet ports (supporting network redundancy), 1 RS-232/RS-485 serial portExpansion Capacity Supports up to 32 local I/O modules, unlimited distributed I/O nodes (based on network capacity)Programming Environment Supports GE Proficy Machine Edition software, compatible with IEC 61131-3 standard languages such as ladder diagram, function block diagram and structured textSafety Level Complies with IEC 61508 standard, supporting SIL 2 safety applicationsPower Consumption Typical value ≤12W, energy-saving with low-power designCertification Standards Compliant with CE, UL, cUL, ATEX, IECEX certification standards
Mechanical Parameters
Overall Dimensions 102mm×160mm×85mm, compact design suitable for RX3i standard racksWeight Approximately 0.8kg, lightweight facilitating installation and deploymentMounting Method Rack-mounted, compatible with GE PACSystems RX3i standard chassisHousing Material Industrial-grade high-strength metal shell with anti-electromagnetic interference and dustproof performanceConnection Method Backplane bus connection + plug-in terminals, supporting quick maintenance and replacementProtection Rating IP20, suitable for indoor industrial control cabinet environmentsStatus Indication Equipped with power (green), operation (yellow), fault (red), communication (blue) LED indicators, providing real-time working status feedback
Environmental Parameters
Operating Temperature 0℃ to 60℃, no performance derating over the entire temperature rangeStorage Temperature -40℃ to 85℃, meeting extreme storage and transportation requirementsRelative Humidity 5% to 95% (non-condensing), adapting to high-humidity industrial scenariosVibration Resistance Complies with IEC 60068-2-6 standard, 2g acceleration at 5Hz-500Hz frequency rangeShock Resistance Complies with IEC 60068-2-27 standard, 15g acceleration (11ms duration)EMC Compliance Complies with EN 55014-1, EN 61000 standards, low electromagnetic interference and high anti-interference capability
Product Performance
Efficient processing speed: 1.0GHz processor + ECC memory, execution cycle of complex control programs ≤2msReliable redundant design: Supports dual redundancy of power supply and network, system availability ≥99.999%Strong expansion compatibility: Compatible with the entire series of RX3i I/O modules, meeting the expansion needs of small and medium-sized systemsComprehensive communication coverage: Natively supports mainstream industrial Ethernet protocols, seamlessly connecting to DCS, SCADA systems and third-party equipmentFlexible and convenient programming: Multi-language programming environment adapts to different control logics, supporting offline programming and online debuggingStable data processing: Supports massive real-time data collection, storage and analysis, providing data support for production optimizationComprehensive self-diagnostic functions: Real-time monitoring of module hardware and communication link status, instant fault information feedbackWide environmental adaptability: Wide temperature operation + metal shielded shell, tolerating electromagnetic interference and harsh working conditions in industrial sites
