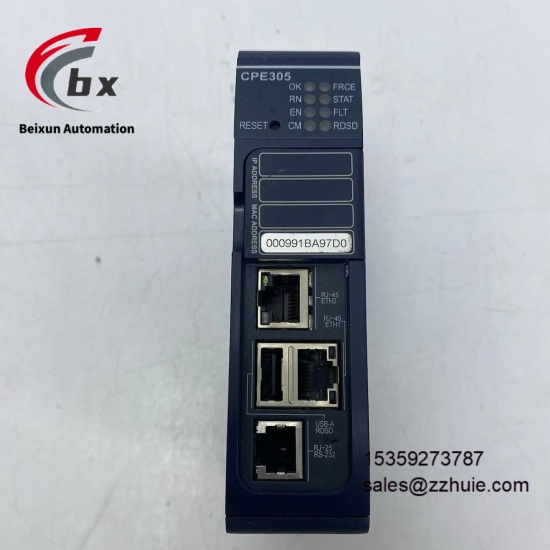

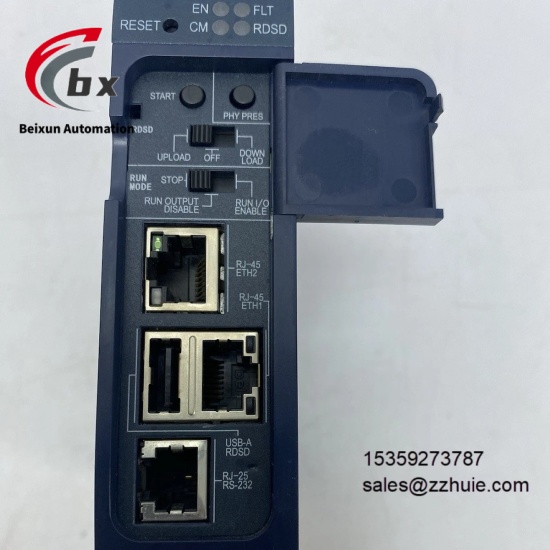

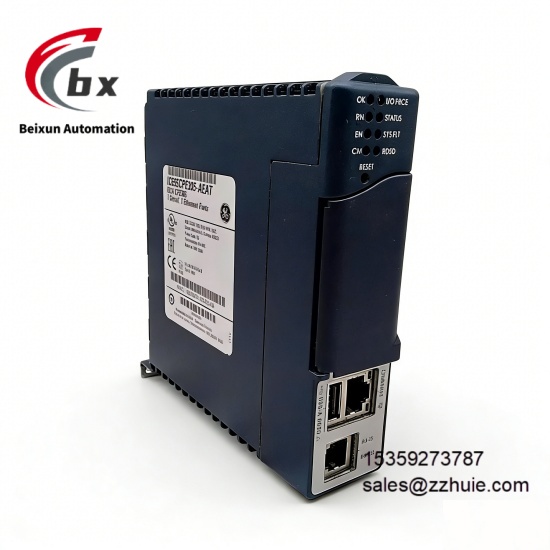

GE IC695CPE305 Central Processing Unit (CPU) module
Specific Parameters
Processor Type 1.1 GHz 32-bit RISC Processor
User Memory 5 MB RAM; 5 MB Non-volatile Flash User Memory
Boolean Execution Speed 0.072 ms/K Logic or Boolean Contacts
Program Block Support Up to 512 Program Blocks, Each Up to 128 KB
Reference Table Sizes 32 Kbits Each for Discrete %I and %Q; Up to 32 Kwords Each for Analog %AI and %AQ
Communication Interfaces 2 10/100 Mbps Auto-Sensing Ethernet Ports (RJ45); 2 Serial Communication Ports (Supports RS232 and RS485)
Communication Protocols Supports SRTP, EGD, Modbus TCP, SNP/SNP X, PROFINET, etc.
Operating Voltage 5 VDC (Backplane); External 24 VDC (Optional)
Operating Current Maximum 800 mA at 5 VDC; 3 mA at 24 VDC (Isolated)
Power Dissipation Maximum 7.5 W
Operating Temperature Range 0℃ to 60℃
Storage Temperature Range -40℃ to 85℃
Relative Humidity 5% to 95%, Non-Condensing
I/O Expansion Capacity Supports Up to 2048 Local I/O Points; Supports Up to 8 Expansion Racks
Data Format IEEE 32-bit Floating Point; 16-bit Integer in a 32-bit Field
Mounting Type Standard 35mm DIN (TS35) Rail Mounting
Overall Dimensions 40mm×125mm×110mm
Weight 0.45 kg
Certification Standards Complies with CE, UL, CSA, ATEX, IECEx Certifications, RoHS Compliant
Memory Retention Battery-less Memory Retention; Optional Energy Pack Writes User Memory to Non-volatile Storage on System Power Loss
Switchover Time Maximum 1 Logic Scan Cycle, Minimum 100 Milliseconds (High Availability Configuration)
Product Performance
High-Speed Computing Performance: Adopts 1.1 GHz 32-bit RISC processor with Boolean execution speed of 0.072 ms/K logic, supports firmware-based floating-point arithmetic, can quickly complete complex logic operations, mathematical operations and multi-task processing without delay or lag, meeting the real-time requirements of medium and large-scale industrial automation control.
Large-Capacity Configurable Storage Performance: Equipped with 5 MB RAM and 5 MB non-volatile flash user memory, can configure register, analog and other memory blocks according to needs, can store complex control programs and a large amount of operation data, meeting the program development and data processing needs of medium and large-scale control systems.
High Expansion Performance: Supports up to 2048 local I/O point expansions, can connect up to 8 expansion racks, compatible with various I/O modules and communication modules of the GE PACSystems RX3i series, and can flexibly expand system functions without replacing the CPU module, adapting to medium and large-scale automation control systems of different scales.
Multi-Protocol High-Speed Communication Performance: Built-in 2 10/100 Mbps auto-sensing Ethernet ports and 2 serial communication ports, supports multiple communication protocols such as SRTP, EGD and Modbus TCP, which can realize high-speed data transmission, seamlessly connect to SCADA, HMI and other industrial automation equipment, realizing real-time data interaction and centralized management and control.
Stable Operation Performance: Complies with industrial-grade design standards and CE, UL, CSA, ATEX, IECEx certifications, has strong anti-interference ability, can operate stably in the operating temperature range of 0℃ to 60℃, adapts to various harsh industrial on-site environments, has a long mean time between failures, and operates without faults for a long time.
Easy Maintenance Performance: Adopts modular single-slot design, supports online maintenance and fault diagnosis, can quickly locate fault points through local or remote methods, the modular structure is easy to disassemble and replace, equipped with LED status indicators to real-time feedback the equipment operation status, shortening maintenance time and reducing operation and maintenance costs.
Flexible Programming Performance: Compatible with IEC 61131-3 standard, supports multiple programming languages such as Ladder Diagram, Function Block Diagram, Structured Text, Instruction List and Sequential Function Chart, equipped with intuitive software configuration tools, facilitating users to develop, debug and modify programs, adapting to different users’ programming habits.
High Availability Support: Supports battery-less memory retention and optional Energy Pack, which can write user memory to non-volatile storage when the system is powered off, ensuring data is not lost, supports high availability configuration, switchover time is maximum 1 logic scan cycle, minimum 100 milliseconds, meeting the continuous operation requirements of critical industrial control scenarios.
