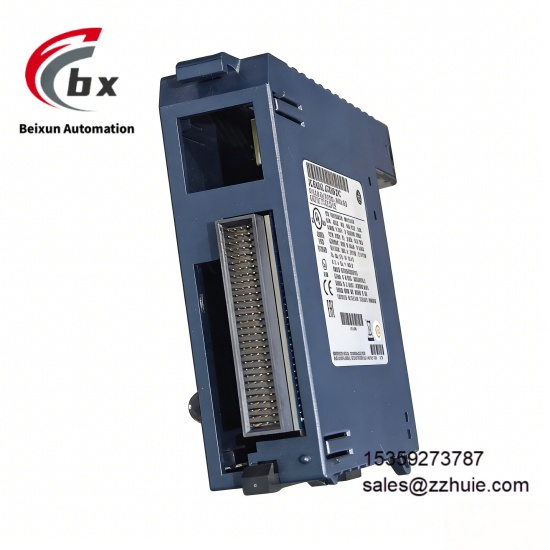

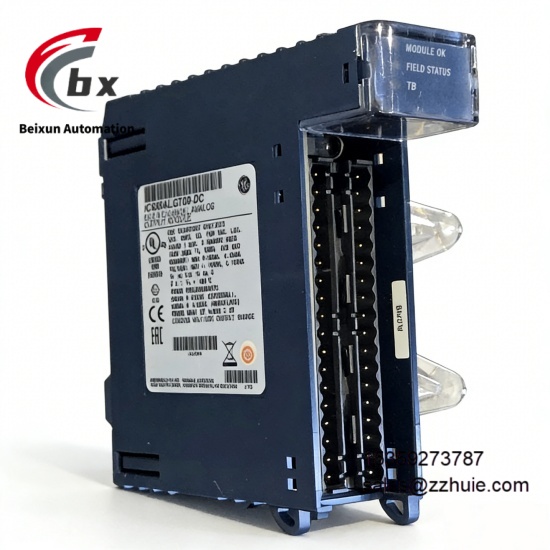

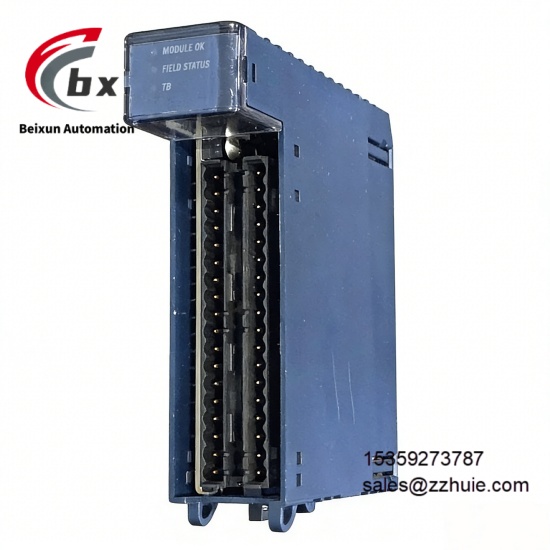

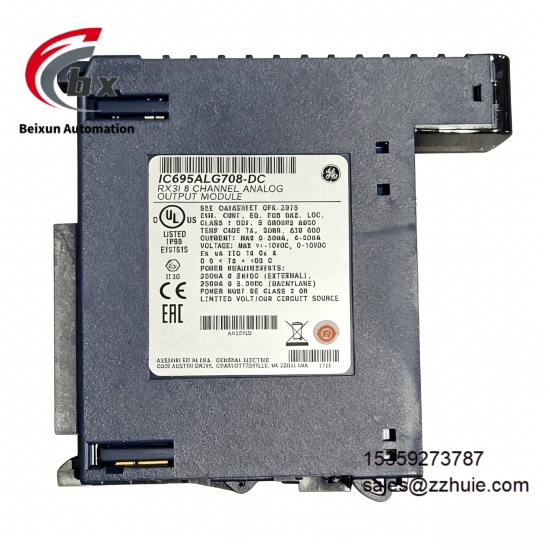

GE IC695ALG708 Non isolated analog output module

GE IC695ALG708 Non isolated analog output module

Specific Parameters

Module Type Non-Isolated Analog Output Module

Number of Channels 8 Output Channels

Output Signals Current: 0-20mA, 4-20mA; Voltage: ±10VDC, 0-10VDC

Resolution ±10V: 15.9 bits; 0-10V: 14.9 bits; 0-20mA: 15.9 bits; 4-20mA: 15.6 bits

Calibrated Accuracy ±0.15% of full scale at 25℃; ±0.25% of full scale at 60℃

Update Rate 8 milliseconds (all eight channels)

Output Settling Time 2 milliseconds, 0 to 95% (voltage or current output)

Maximum Output Load 850 ohms

Data Format IEEE 32-bit floating point; 16-bit integer in a 32-bit field

Operating Voltage External 24VDC (nominal), voltage range 19.2V to 30VDC

Operating Current Maximum 330mA at 3.3VDC; 315mA at 24VDC (isolated)

Power Dissipation Maximum 7.25 watts

Operating Temperature Range 0℃ to 60℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Isolation Voltage 2550VDC for 1 second (field to backplane)

Mounting Type Standard 35mm DIN (TS35) Rail Mounting

Overall Dimensions 40mm×125mm×110mm

Weight 0.43kg

Certification Standards Complies with CE, UL, CSA, ATEX, IECEx Certifications, RoHS Compliant

Product Performance

High-Precision Output Performance: With 14.9-15.9 bit resolution and calibrated accuracy of ±0.15% of full scale at 25℃, it can accurately output analog signals, capture subtle changes of signals, and meet the accuracy requirements of precision industrial process control.

Flexible Configuration Performance: 8 non-isolated output channels can be independently configured into different current and voltage signals, adapting to the control needs of various external devices, supporting multiple types of terminal blocks, no additional signal conversion module is required, reducing system integration costs.

Fast Response Performance: The analog signal update rate reaches 8 milliseconds, and the output settling time is only 2 milliseconds, which can quickly respond to control system commands, output corresponding analog signals in real time, and ensure the timeliness of the control process.

High Compatibility Performance: Installed on the RX3i universal backplane, it is compatible with all RX3i CPUs, can be seamlessly connected to PACSystem RX3i series devices, supports efficient linkage with PLCs, controllers and other devices, and adapts to industrial automation system architecture.

Stable Operation Performance: Complies with industrial-grade design standards, has strong anti-interference ability, the isolation voltage reaches 2550VDC, can operate stably in a wide temperature range of 0℃ to 60℃ and complex industrial environments, and operates without faults for a long time.

Easy Operation and Maintenance Performance: Supports online software configuration, can set channel alarms, output offsets and other parameters, is equipped with status indicators to facilitate real-time monitoring of module operation status, and the modular design is convenient for installation, disassembly and fault troubleshooting.
