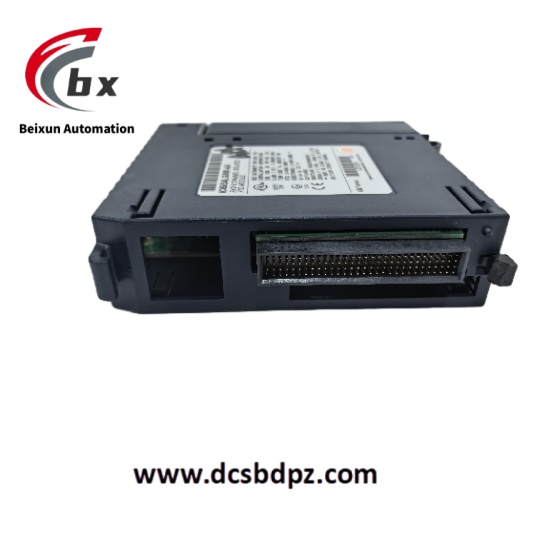

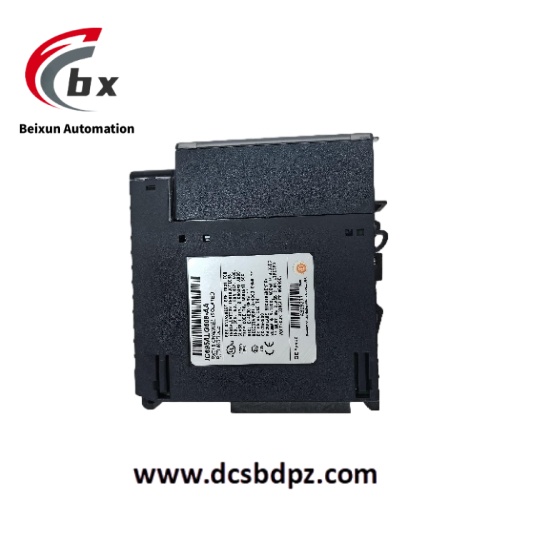

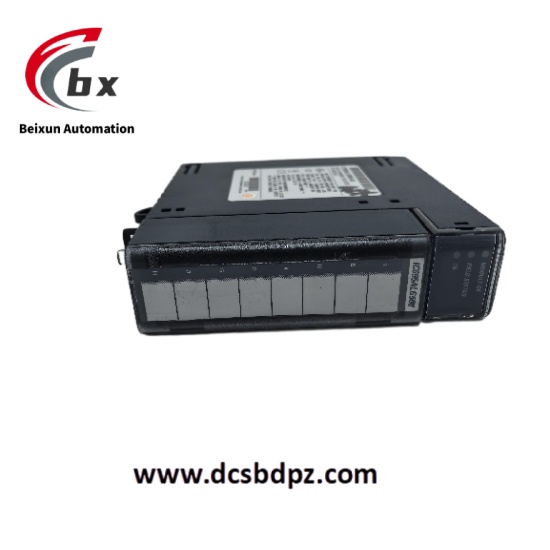

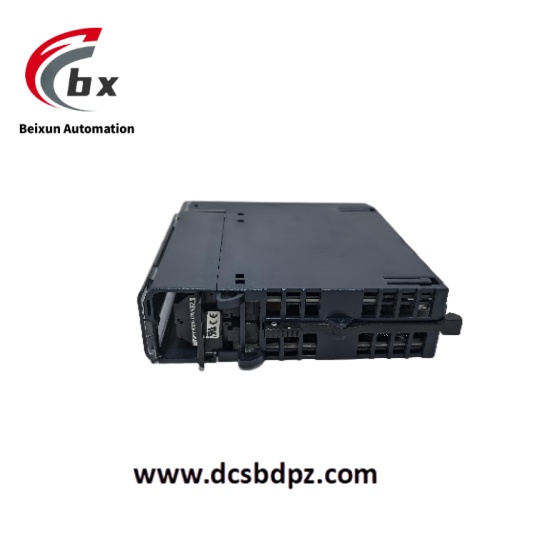

GE IC695ALG508-AA Analog input module

Specific Parameters

Input Parameters
Number of Channels: 8 channels (single-ended input, independently configurable)
Signal Types: DC voltage (0-5V, 0-10V, ±5V, ±10V), DC current (4-20mA, 0-20mA)
Resolution: 16-bit (all signal types)
Accuracy: ±0.1% full scale (at 25°C); ±0.25% full scale (at 0-60°C)
Sampling Rate: 10Hz (single channel); 80Hz (all channels synchronous sampling)
Input Impedance: 100kΩ (voltage signals); 250Ω (current signals)
Channel Isolation: 2.5kVAC between channels, between channels and backplane (1 minute)
Electrical Parameters
Supply Voltage: 5VDC (provided by RX3i backplane)
Power Consumption: ≤3.5W (normal operation)
Common Mode Rejection Ratio: ≥90dB (50/60Hz, common mode voltage ≤250V peak-to-peak)
Differential Mode Rejection Ratio: ≥80dB (50/60Hz)
Overvoltage Protection: ±30V (voltage channels); 30mA (current channels, 10 seconds continuous)
Environmental & Mechanical Parameters
Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
Protection Class: IP20 (module itself)
Dimensions: 36mm (W) × 100mm (H) × 160mm (D)
Weight: Approximately 280g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715), compatible with RX3i series racks

Product Performance

IC695ALG508-AA adopts a 16-bit high-precision A/D conversion chip combined with temperature compensation technology, maintaining high measurement accuracy over the entire operating temperature range to ensure the accuracy and repeatability of industrial process parameter acquisition. The 8 input channels can be independently configured for signal types without external hardware adjustment, adapting to diverse on-site sensor requirements.

The channel-level 2.5kVAC electrical isolation design effectively resists electromagnetic interference, ground loops and other interference sources in industrial sites, with a common mode rejection ratio of 90dB, ensuring stable signal acquisition. It supports hot-swap function, allowing module installation and replacement without powering off or stopping the PLC, significantly reducing system maintenance downtime.

Integrated with comprehensive self-diagnosis functions, it can detect channel open circuit, short circuit, overvoltage and module power supply abnormalities, trigger alarms and record fault codes via the RX3i CPU module, facilitating quick problem location. It communicates with RX3i series PLCs at high speed via the backplane bus, with data update delay ≤10ms, meeting real-time control needs.
