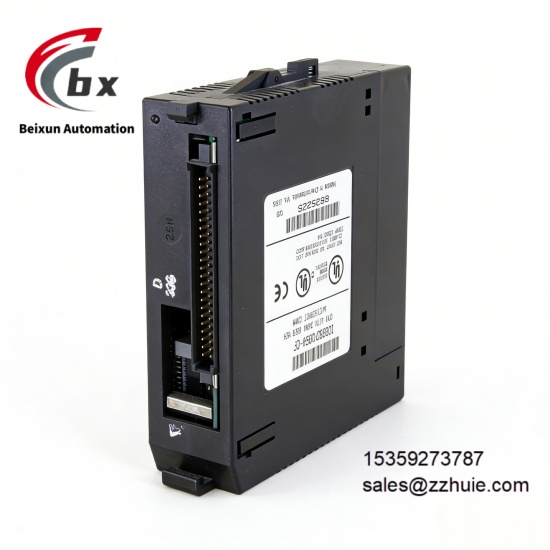

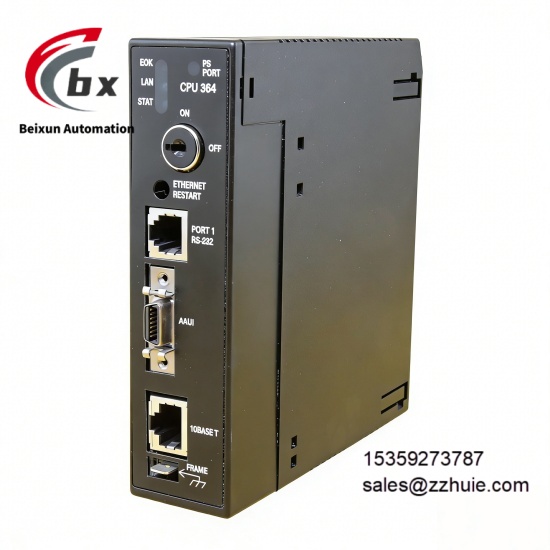

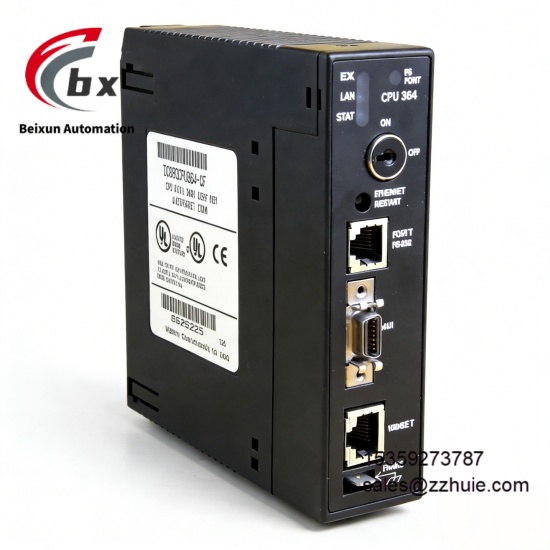

GE IC693CPU364 Central Processing Unit Module
Specific Parameters
Operating Voltage +5VDC±5%, Operating Current 1.51A
Operating Temperature Range 0℃ to 60℃
Storage Temperature Range -20℃ to 85℃
Relative Humidity 5% to 95%, Non-Condensing
Processor Type 80386EX
Clock Frequency 25MHz
User Memory 240KB
Boolean Execution Speed 0.22ms/K Logic or Boolean Contacts
I/O Expansion Capacity Supports up to 384 I/O Points
Communication Interfaces Built-in Ethernet Interface, 1 RS-232 Serial Port
Communication Protocols Supports Ethernet, Modbus, TCP/IP Protocols
Overall Dimensions 140mm×120mm×50mm
Mounting Type Standard 35mm DIN Rail Mounting
Weight 0.45kg
Certification Standards Complies with CE, UL Certifications
Storage Type Supports RAM, Flash Memory, Expandable Storage (Supports Memory Card Slot)
Product Performance
High-Speed Computing Performance: Adopts 80386EX processor with a clock frequency of 25MHz, the boolean execution speed is 0.22ms/K logic, supports firmware-based floating-point arithmetic, can quickly complete complex logic operations, mathematical operations and multi-task processing without delay or lag, meeting the real-time requirements of medium and large-scale industrial automation control.
Large-Capacity Storage Performance: Equipped with 240KB user memory, supports dual storage of RAM and flash memory, expandable storage and memory card slot, can store complex control programs and a large amount of operation data, meeting the program development and data processing needs of medium and large-scale control systems.
High Expansion Performance: Supports up to 384 I/O point expansions, can connect multiple remote or expansion baseplates, compatible with various I/O modules and communication modules of the GE 90-30 series, and can flexibly expand system functions without replacing the CPU module, adapting to medium and large-scale automation control systems of different scales.
Multi-Protocol Communication Performance: Built-in Ethernet interface and serial port, supports multiple communication protocols such as Ethernet, Modbus and TCP/IP, can be seamlessly connected to SCADA, HMI and other industrial automation equipment, realizing real-time data interaction and centralized management and control, adapting to modern industrial network architecture.
Stable Operation Performance: Complies with industrial-grade design standards and CE, UL certifications, has strong anti-interference ability, can operate stably in the operating temperature range of 0℃ to 60℃, adapts to various harsh industrial on-site environments, and operates without faults for a long time.
Easy Maintenance Performance: Adopts modular single-slot design, supports online maintenance and fault diagnosis, can quickly locate fault points through local or remote methods, and the modular structure is easy to disassemble and replace, shortening maintenance time and reducing operation and maintenance costs.
Flexible Programming Performance: Compatible with IEC 61131-3 standard, supports multiple programming languages such as Ladder Diagram, Function Block Diagram and Structured Text, equipped with intuitive software configuration tools, facilitating users to develop, debug and modify programs.
