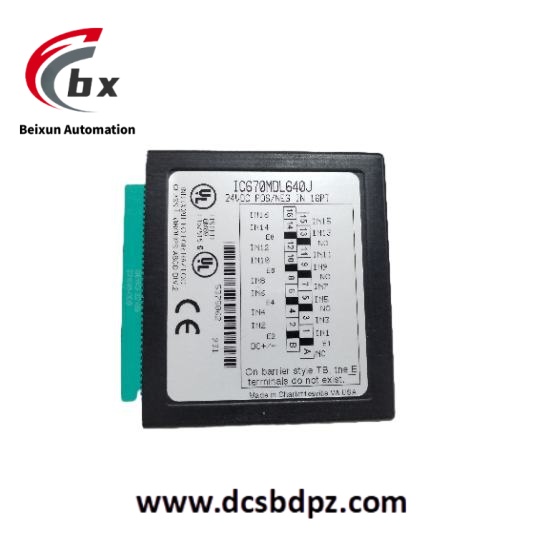

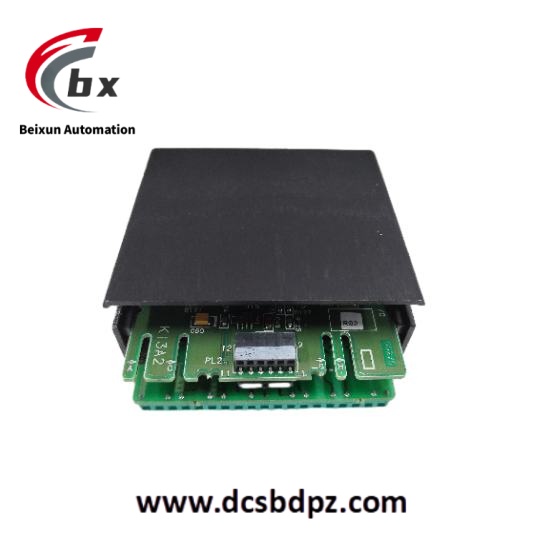

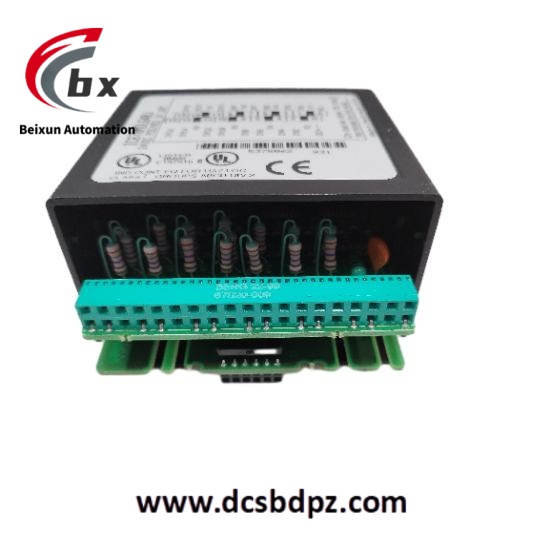

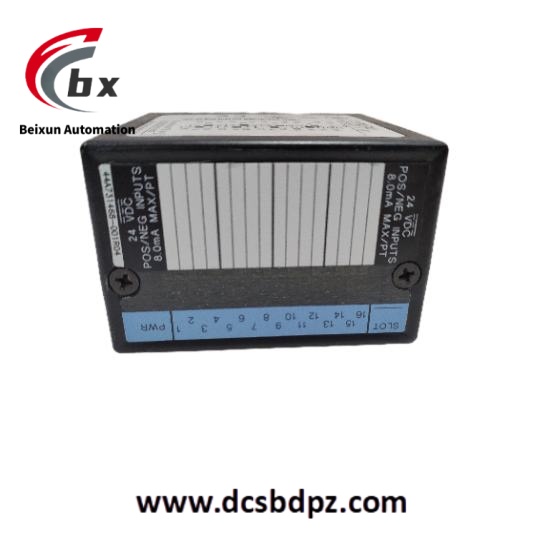

GE IC670MDL640 Digital Input Module
Specific Parameters
- Number of Input Points: 16 independent input channels
- Input Voltage Range: 0 to 30V DC
- Operating Voltage: 24V DC
- Input Current: 5mA per point (rated value), with a maximum of 83mA when all channels are active simultaneously
- Response Time: A typical value of 2ms and a maximum value of 10ms
- Input Impedance: A typical value of 10kΩ
- Operating Temperature Range: – 40°C to + 70°C
- Storage Temperature Range: – 40°C to + 85°C
- Protection Level: IP20
- Dimensions: 115mm x 30mm x 22mm (DIN rail mounting dimensions)
- Weight: Approximately 150g
- Channel Type: Digital input
- Logic Type: Supports positive and negative logic
- Communication Interface: RS485
- Anti – interference Ability: Complies with industrial standards and has excellent surge and noise protection capabilities
Product Performance
- High – Reliability Signal Conversion: In industrial environments, facing complex electromagnetic interference and other unfavorable factors, the IC670MDL640 can stably and accurately convert external digital signals into signals recognizable by PLCs with its advanced circuit design and technology. It ensures the accuracy of signals during transmission and conversion, greatly reducing the occurrence of signal loss or misjudgment, and providing a solid data foundation for industrial automation control systems.
- Flexible Logic Configuration: It supports positive and negative logic input methods. According to the actual output characteristics of external devices in different industrial scenarios, the input logic type can be flexibly adjusted, effectively adapting to various types of devices such as buttons, switches, and sensors, which greatly improves the versatility and applicability of the module in different industrial projects.
- Fast Response: With a typical response time of only 2ms, in some industrial automation scenarios with extremely high real – time requirements, such as the monitoring of high – speed production lines and the status feedback of fast – acting equipment, it can quickly capture changes in the status of external devices and transmit signals to the PLC in a timely manner, enabling the control system to respond quickly and ensuring the efficient and stable operation of the entire production process.
- Excellent Environmental Adaptability: The operating temperature range is from – 40°C to + 70°C, and the storage temperature range is from – 40°C to + 85°C. It can adapt to industrial plants from cold northern regions to hot southern regions, and even some special industrial environments with high temperature, high humidity, or extreme cold. With a protection level of IP20, it can effectively prevent dust from entering and protect the internal circuit from interference by external environmental factors to a certain extent, ensuring the long – term stable operation of the module.
- Good Anti – interference Performance: The anti – interference design strictly complies with industrial standards. In the face of strong electrical noise generated by devices such as motors and solenoids, it can effectively suppress interference signals, ensure its own normal operation, maintain the stability of signal transmission, and ensure the reliable operation of industrial automation systems in complex electromagnetic environments.
