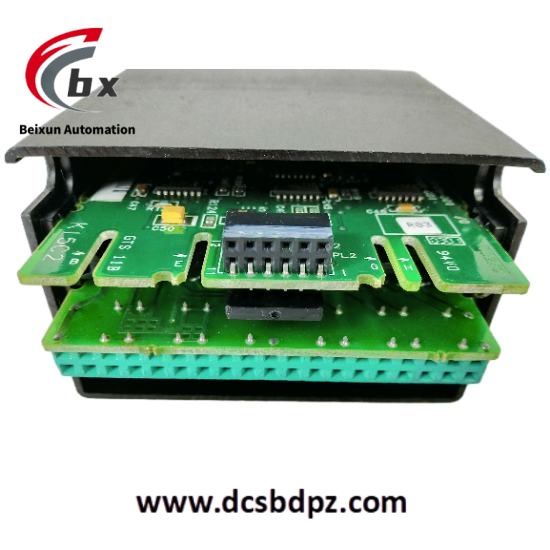

GE IC670MDL240J 16 channel grouping input module

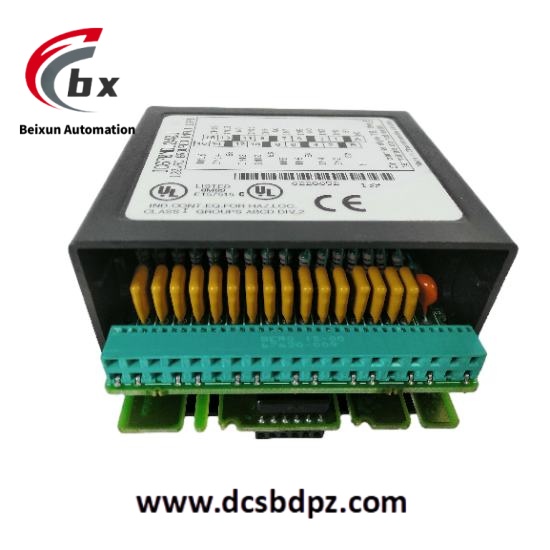

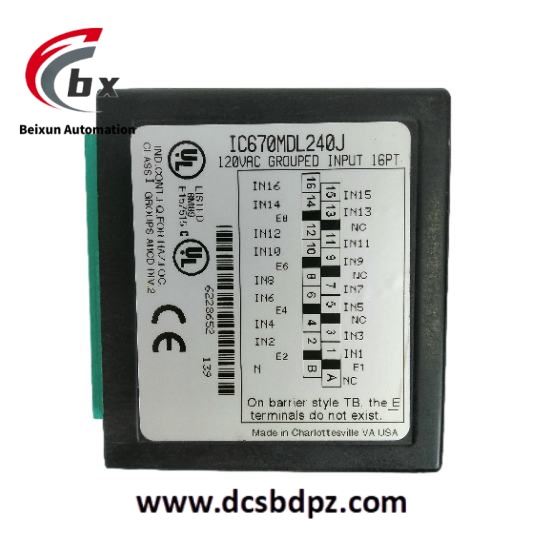

The GE IC670MDL240J is a 16 - channel grouped input module specifically designed by General Electric (GE) for industrial automation control systems and belongs to the GE Fanuc field control series. This module is mainly used to connect signal devices with two states (binary), such as push buttons, limit switches, auxiliary contacts, proximity sensors, etc. It can convert the discrete input signals from these devices into digital data for processing by the programmable logic controller (PLC). In the industrial automation system architecture, it is a key link to realize the signal interaction between field devices and control systems.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
GE IC670MDL240J 16 channel grouping input module
Specific Parameters
- Number of Discrete Input Channels: 16
- Input Voltage Range: 0 – 132VAC
- Input Frequency Range: 47 – 63Hz
- Nominal Input Signal Voltage: 120VAC
- Input Current per Point: 15mA
- Current Drawn by the Module from the Bus Interface Unit (BIU) Power Supply: 77mA
- Typical Input Impedance: 8.6 kΩ
- On – State Voltage: 70VAC to 120VAC
- Off – State Voltage: 0 – 20VAC
- On – State Current: 5 – 15mA
- Off – State Current: 0mA to 2.5mA
- On – Response Time: 12ms, usually up to 20ms
- Off – Response Time: 25ms, usually up to 40ms
- Isolation Voltage between Input and Logic, Input and Frame Ground: 250VAC continuous, 1500VAC for 1 minute
- Dimensions: 90mm×30mm×25mm
- Installation Method: Installed along the Bus Interface Unit (BIU)
- Status Indication: Equipped with individual LED status indicators to display the logic 0 and logic 1 states of the input channels; there is a dedicated PWR LED indicator to show the power received from the backplane
Product Performance
- Strong Signal Adaptability: It can work normally within the voltage range of 0 – 132VAC and the frequency range of 47 – 63Hz. It can adapt to the complex and variable signal input conditions in different industrial scenarios and has good compatibility with signals from various field devices.
- Reliable Signal Conversion: It accurately converts discrete input signals into digital data and transmits them to the PLC, ensuring the accuracy of signals during conversion and transmission, providing reliable input information for the control system, and ensuring the stable operation of the industrial control process.
- Clear Status Feedback: Through individual LED status indicators, it can intuitively and real – time display the logical state (logic 0 or logic 1) of each input channel, facilitating operators to quickly understand the equipment operation status. When a fault occurs, the problem channel can be quickly located, which greatly improves the efficiency of fault diagnosis and system maintenance. At the same time, the dedicated PWR LED indicator clearly shows the power supply status from the backplane, facilitating the monitoring of the module’s power supply status.
- Good Electrical Isolation: There is an isolation voltage of 250VAC continuous and 1500VAC for 1 minute between the input and logic, and between the input and frame ground, effectively preventing electrical interference and voltage surges from affecting the module and the entire control system, enhancing the stability and reliability of the module in complex electromagnetic environments.
