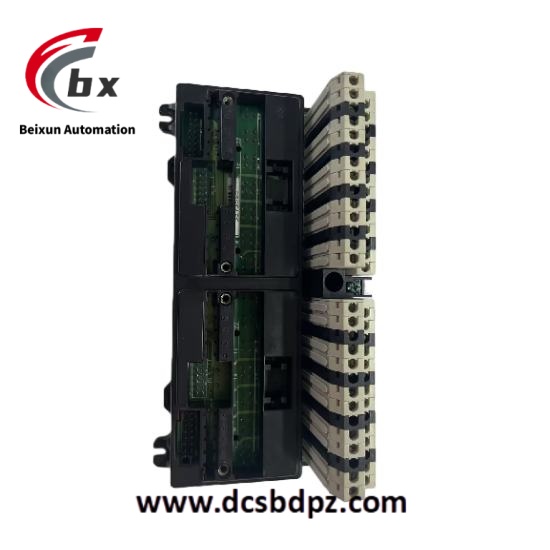

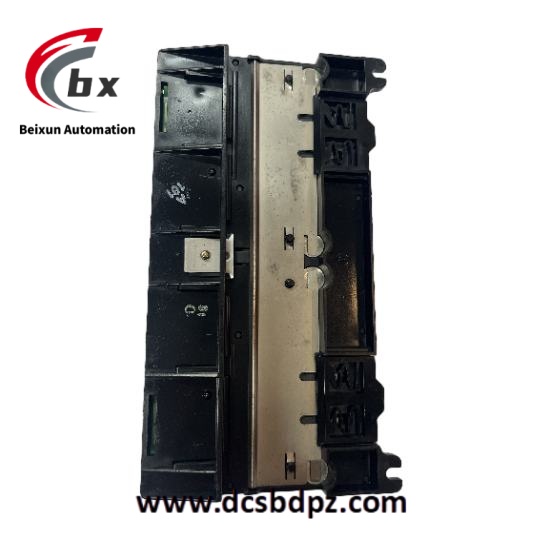

GE IC670CHS002 I/O wiring terminal module

GE IC670CHS002 I/O wiring terminal module

Specific Parameters​

• Number of Terminals: 37​
• Operating Voltage: 24V DC​
• Input Current: Each terminal can carry a maximum current of 10A​
• Output Current: Each terminal can carry a maximum current of 10A​
• Operating Temperature Range: -20°C to +60°C​
• Storage Temperature Range: No clear official data, presumably within a reasonable storage temperature range for industrial equipment​
• Protection Level: IP20​
• Dimensions: 105mm x 45mm x 25mm​
• Weight: Approximately 200 grams​
• Installation Method: Supports DIN rail installation, facilitating quick installation and subsequent maintenance​
• Connection Method: Connects various I/O modules through terminals, with a stable and reliable connection method​
• Compatibility: Compatible with the GE Fanuc Series 90/30 PLC system, allowing seamless integration into relevant control systems​
• Communication Interface: Equipped with an RS – 485 communication interface to enable efficient data transmission and interaction​

Product Performance​

1. High – Reliability Connection: With 37 terminals, it can provide sufficient connection points to ensure the access of a variety of devices. Each terminal can withstand a current of up to 10A, making it suitable for industrial applications with extremely high reliability requirements. It can also ensure stable signal transmission and power supply in complex electrical environments.​
2. Good Environmental Adaptability: The operating temperature range is -20°C to +60°C, enabling it to operate normally under relatively harsh industrial environment temperature conditions and adapt to industrial sites in different regions and working conditions. With a protection level of IP20, it can prevent dust and a certain degree of water splashing from entering, protecting the internal circuit from interference by external environmental factors and extending the service life of the module.​
3. Convenient Installation and Maintenance: Adopting the DIN rail installation method, the installation process is simple and fast. Maintenance personnel can remove and insert the module without removing the existing wiring, greatly reducing the maintenance difficulty and time cost and facilitating system upgrade and daily maintenance work.​
4. Efficient Data Transmission: Equipped with an RS – 485 communication interface, it follows relevant industrial communication standards to ensure fast and accurate data transmission between devices, providing timely feedback of field device status information to the automation control system and ensuring that control commands can be quickly issued and executed.​
5. Flexible System Integration: It has strong compatibility with the GE Fanuc Series 90/30 PLC system and can be easily integrated into the existing automation system architecture to work in coordination with other devices, giving full play to the overall system efficiency and meeting the needs of industrial automation projects of different scales and complexities.
