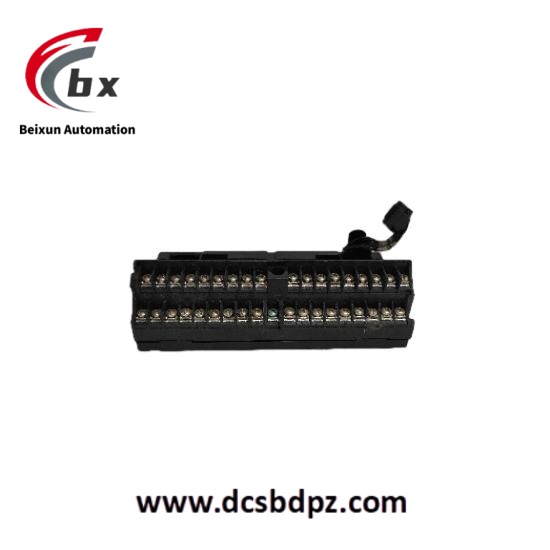

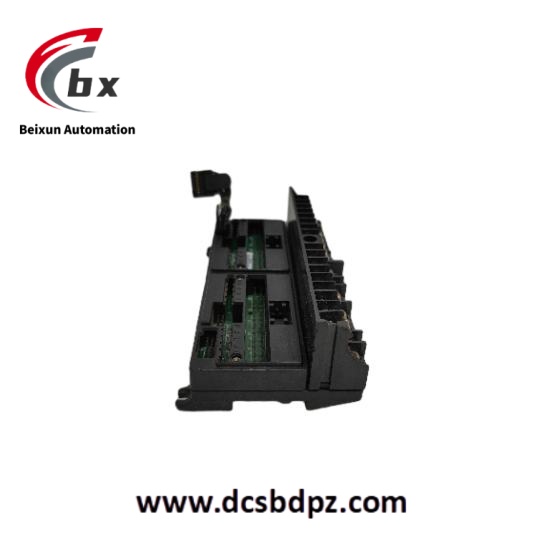

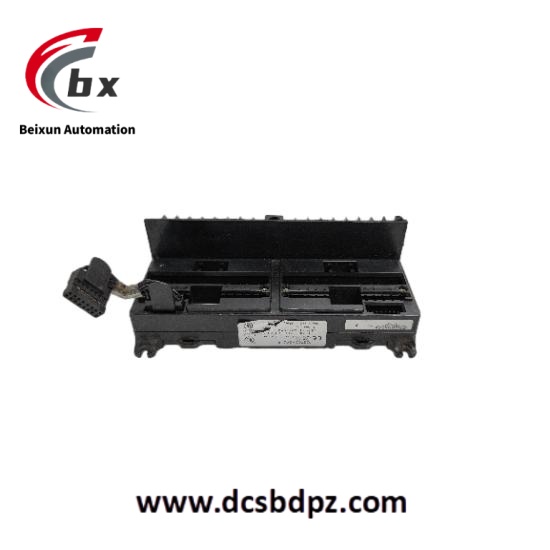

GE IC670CHS001E I/O wiring terminal module

GE IC670CHS001E I/O wiring terminal module

Specific Parameters

• Number of Terminals: 37
• Operating Voltage: 18 – 32VDC
• Power Input: 24V DC
• Operating Temperature Range: -40°C to +70°C
• Storage Temperature Range: -40°C to +85°C
• Rated Current: 2A per terminal
• Communication Interfaces: RS485, Ethernet
• Protection Level: IP20
• Dimensions: 100mm x 80mm x 40mm
• Number of Slots: 5
• Power Requirements: 120/240 VAC or 125VDC
• Weight: Approximately 0.2kg
• Installation Method: Supports horizontal DIN rail or panel mounting
• Compatibility: Suitable for GE Fanuc Series 90 – 30 PLC systems
• Connector Type: AWG#14 to AWG#22

Product Performance

1. High Reliability: It can operate stably within the operating temperature range of -40°C to +70°C, is suitable for harsh industrial environments, has high noise suppression capabilities, ensures stable signal transmission, and reduces the impact of interference on the system.
2. Flexible Connection Capability: It has 37 terminals that can connect to a variety of devices. Each terminal can accommodate wires within a specific size range. It supports modular connection, allowing the removal and insertion of hosted I/O modules without removing existing wiring, facilitating system expansion and maintenance.
3. Good Compatibility: It is compatible with the GE Fanuc Series 90 – 30 PLC system and can be seamlessly integrated into relevant control systems to ensure coordinated work with other devices and exert the overall system efficiency.
4. Protection Performance: With a protection level of IP20, it can prevent dust and a certain degree of water from entering, protect the internal circuit, and extend the service life of the module.
