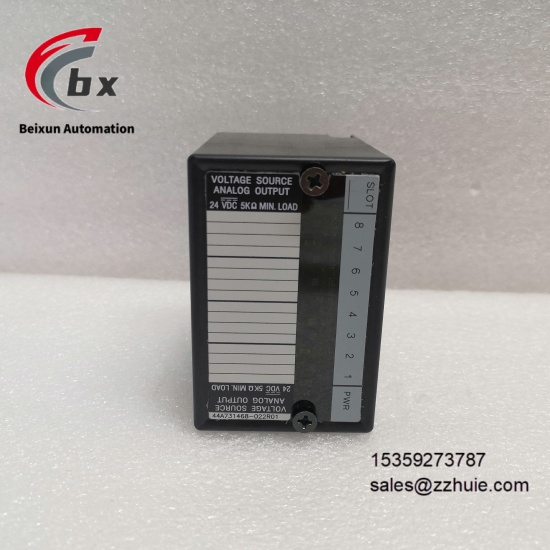

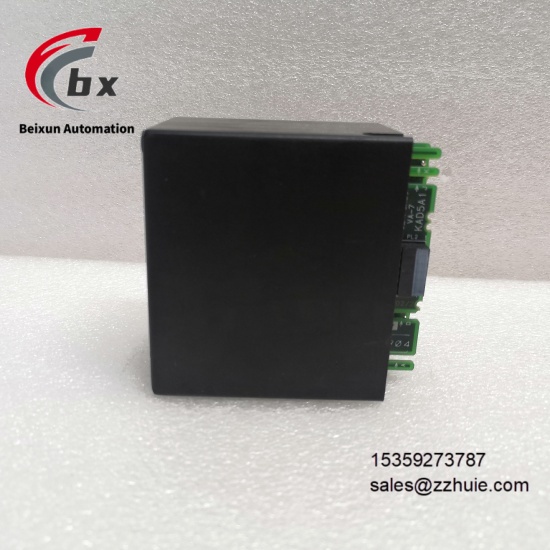

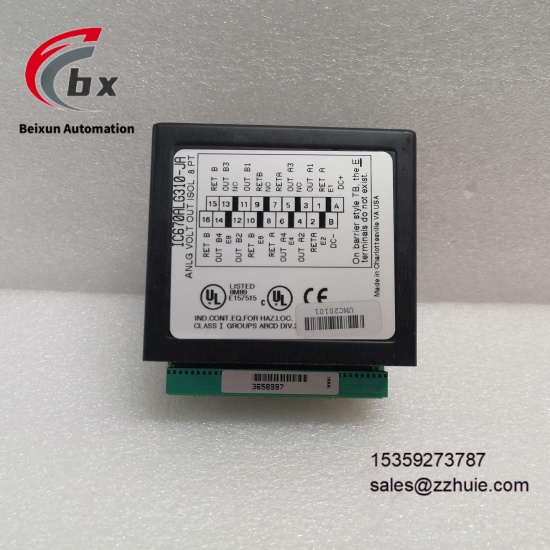

GE IC670ALG310-JA Analog input module

GE IC670ALG310-JA Analog input module

SPECIFIC PARAMETERS​

Brand GE​

Product Series VersaMax Series​

Product Type High-precision Multi-channel Analog Input Module​

Model IC670ALG310-JA​

Working Voltage 24VDC Wide Range Adaptation 19.2-28.8VDC​

Working Temperature 0℃ to 60℃​

Storage Temperature -40℃ to 85℃​

Relative Humidity 5% to 95% Non-condensing​

Protection Level IP20 (In-cabinet Installation)​

Installation Method DIN Rail Installation​

Number of Input Channels 8 Independent Analog Input Channels​

Input Signal Types 4-20mA 0-10V 1-5V Thermocouple (J/K/T/E/R/S/B/N) RTD (PT100/PT1000)​

Measurement Accuracy ±0.1% of Full Scale (Voltage Signals) ±0.2% of Full Scale (Current Signals)​

Isolation Feature Electrical Isolation Between Channels/Channels and Power Supply Isolation Voltage 250VAC​

Sampling Rate 10Hz per Channel (Configurable)​

Communication Protocols Modbus RTU EtherNet/IP Profinet​

Communication Interface Compatible with VersaMax Backplane Bus Supports High-speed Interconnection with Controllers​

Current Consumption Typical 180mA Maximum 250mA​

Size 120mm×75mm×40mm (Standard 3U Module Size)​

Weight 0.4kg​

Power Consumption Typical 6W Maximum 9W​

Certification Qualification CE UL CSA IEC 61131-3 IEC 61010-1​

Compatible System GE VersaMax Series Controllers PACSystems RX3i Platform Industrial Automation Control Platforms​

Filter Function Built-in Hardware Filter Filter Time Constant Configurable​

Diagnostic Function Support Channel Fault Signal Overflow Power Supply Abnormality Detection​

PRODUCT PERFORMANCE​

Supports 8 independent analog input channels, compatible with multiple signal types such as current, voltage, thermocouple and RTD, adapting to multi-parameter synchronous acquisition scenarios​

Measurement accuracy up to ±0.1% of full scale (voltage signals), combined with hardware filter design, ensuring the accuracy and stability of wide-range signal acquisition​

Supports single-ended/differential input mode switching, which can be flexibly configured according to on-site environment to improve signal anti-interference ability​

250VAC electrical isolation between channels, effectively blocking electromagnetic interference and signal crosstalk in industrial sites, ensuring signal transmission integrity​

24VDC wide-range power supply design, resisting power grid fluctuations and voltage sags, ensuring continuous operation of the module in complex industrial environments​

Industrial-grade environmental tolerance design, can operate stably in the temperature range of 0℃ to 60℃ and non-condensing humidity environment of 5%-95%​

Sampling rate of 10Hz per channel, supporting configurable filter time constant, adapting to control loops with different dynamic response requirements​

Modular design with DIN rail installation, easy to install and maintain, can be flexibly combined and expanded with VersaMax series modules​

Uses high-quality operational amplifiers and A/D conversion chips, long-term operation drift ≤±0.02% of full scale/year, ensuring measurement stability​

Compatible with GE VersaMax controllers and PACSystems RX3i platform, supporting seamless integration and remote parameter configuration, reducing system integration costs​

Built-in comprehensive fault diagnosis function, real-time feedback of channel status and abnormal information, realizing rapid fault location and troubleshooting
