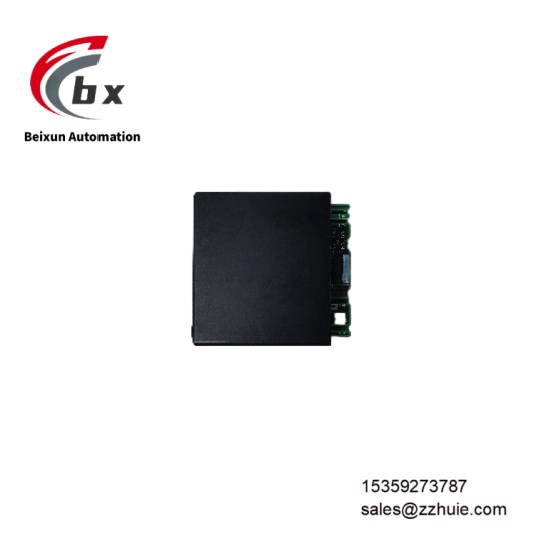

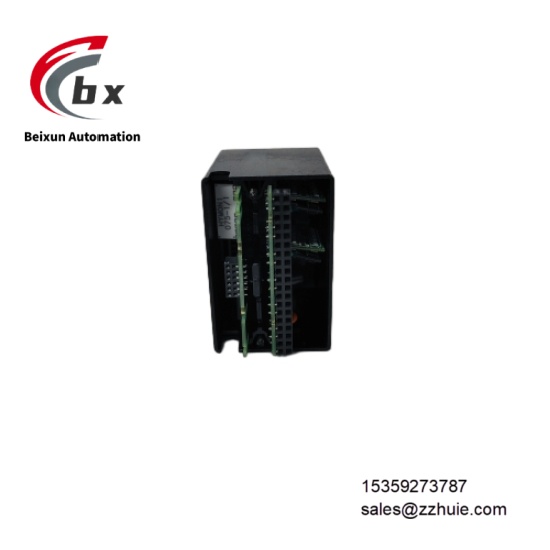

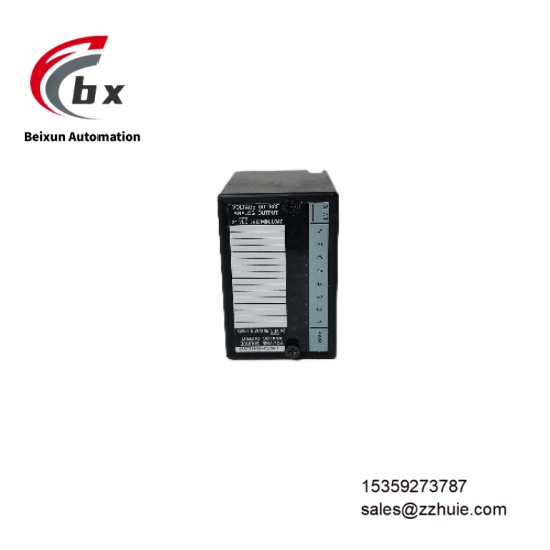

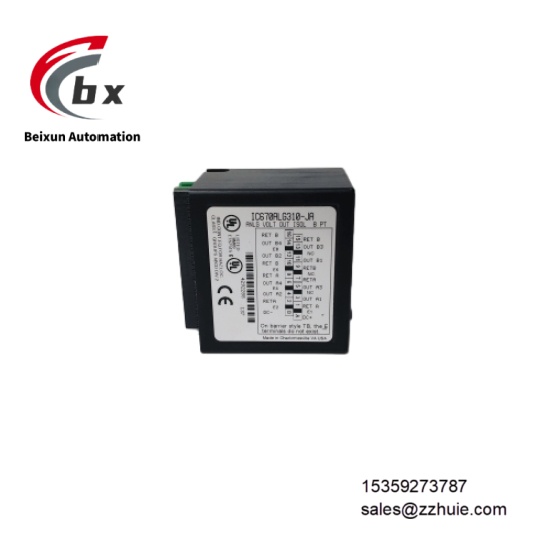

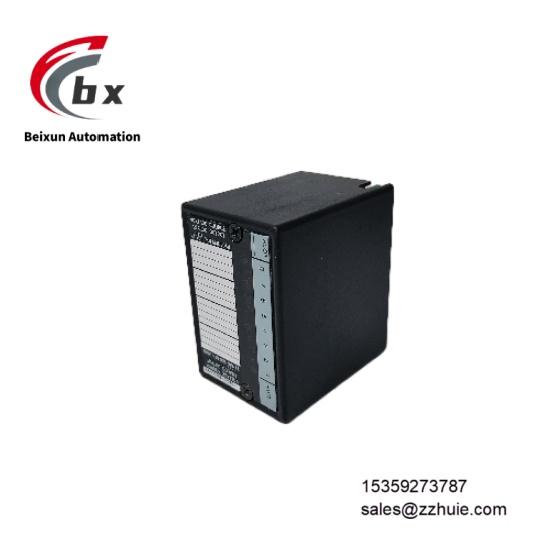

GE IC670ALG310 Analog output module
Specific Parameters
Electrical Parameters
Power Supply Voltage: 24V DC, compatible with 18-30V DC input range
Power Consumption: Draws 170mA current from the bus interface unit
Output Channels: 8 independent analog voltage output channels, divided into two isolated groups (4 channels per group)
Output Range: -10V to +10V, overrange output up to 10.25V
Resolution: 14-bit
Measurement Accuracy: ±0.1% FS
Response Time: 1.5ms
Isolation Level: Electrical isolation between channels, power supply and ground
Diagnostic Functions: Supports overrange/underrange detection, power failure alarm, uncalibrated module identification, providing channel and module status feedback
Data Exchange: Supports 0-8 words of analog output data, 0-3 bytes of status input data, 0-2 bytes of alarm clearing output data
Compliant Standards: UL certified, conforming to general specifications for industrial analog output modules
Environmental Parameters
Operating Temperature: 0°C to 55°C (non-condensing environment)
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing)
Protection Rating: IP20 (module itself, requiring system chassis for overall protection)
Anti-interference Performance: Isolation design enhances noise immunity, compliant with IEC 61326-1 EMC standard
Mechanical Parameters
Overall Dimensions: 153mm×66mm×30mm (L×W×H)
Housing Material: Flame-retardant engineering plastic (UL94 V-0 grade)
Weight: Approximately 1.47kg
Mounting Method: Standard DIN rail mounting
Wiring Method: Front terminal block, supporting wire diameter 0.5-2.5mm²
Status Indication: LED indicators (module operation, fault, power status)
Product Performance
It has strong system compatibility, directly adapting to GE PAC Systems RX7i series controllers and Genius I/O bus systems. It can be seamlessly connected with bus interface units, enabling integration without additional adaptation components.
Signal output accuracy is high: 14-bit resolution and ±0.1% FS measurement accuracy ensure signal fineness, and 1.5ms fast response time can track control commands in real time, meeting high-precision process regulation needs.
Diagnostic and alarm functions are comprehensive: it can actively identify multiple fault types such as overrange and power failure, and realize early fault warning and accurate positioning through status data feedback and alarm triggering mechanisms.
Maintenance is convenient: it supports on-site calibration and reset to factory settings, with calibration data stored in flash memory to prevent loss. The modular structure and clear LED indicators simplify replacement procedures, enabling status checking without equipment disassembly.
Operation stability is excellent: inter-channel isolation design effectively suppresses electromagnetic interference in industrial environments, and wide voltage input range adapts to different power supply scenarios, ensuring continuous and stable signal output under complex working conditions.
