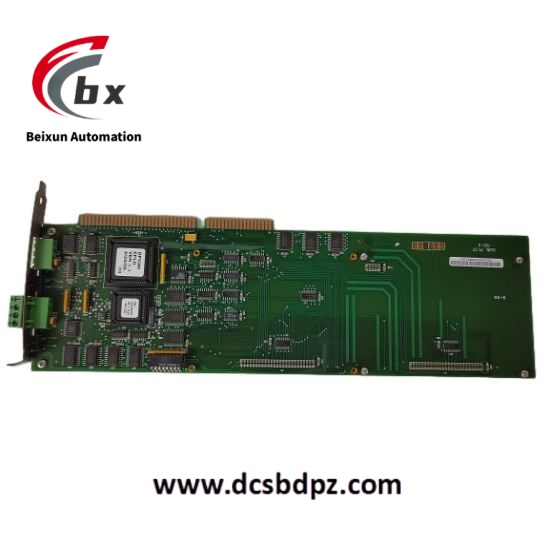

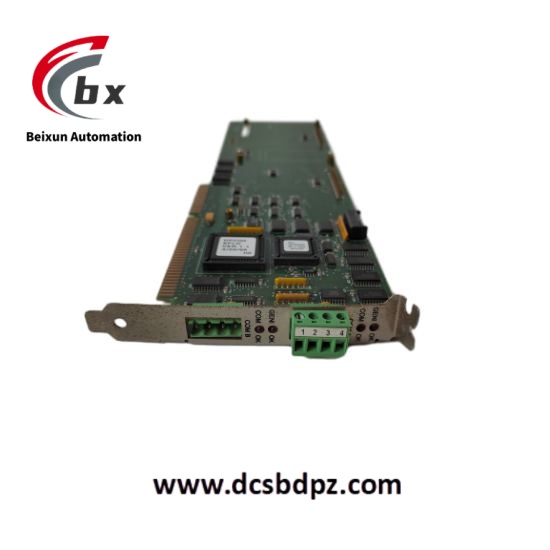

GE IC660ELB921M Single channel Genius I/O PC Interface Module (PCIM)
Specific parameters
Power requirements: 5V DC, 400mA current, voltage fluctuation range of+/-10%.
Memory requirements: 4 bytes for motherboard and 16KB for motherboard.
Bus load and driving capability: Bus load with 1 LSTTL load per input, bus driving capability with 10 LSTTL loads per output.
Communication speed: 38.4K, 76.8K, 153.6K standard or 153.6K extended baud rate.
Working and storage temperature: Working temperature 0-60 degrees Celsius (32-140 degrees Fahrenheit), storage temperature -40~+70 degrees Celsius (-40-158 degrees Fahrenheit).
Relative humidity: 5-95% (non condensing).
Operating altitude, vibration and impact: Operating altitude of 40000 feet, operating vibration displacement of 0.2 inches, operating impact of 5G, duration of 10 milliseconds.
Product Performance
Compatibility: Compatible with different Genius communication protocols and communication timing, fully compatible with handheld displays, and compatible with any GE Fanuc Genius bus controller.
Independent configuration: The configuration software provided by the module can configure the daughter board independently of the motherboard, and the daughter board can be separately connected to Genius bus devices, acting as a universal I/O controller for the I/O system.
Signal buffering and monitoring: The motherboard can buffer all signals required for communication with the system host bus, and also provides sub board control and monitoring facilities such as ISA compatible backplane, low power supply voltage level detection, address decoding and signal sorting through memory mapping.
