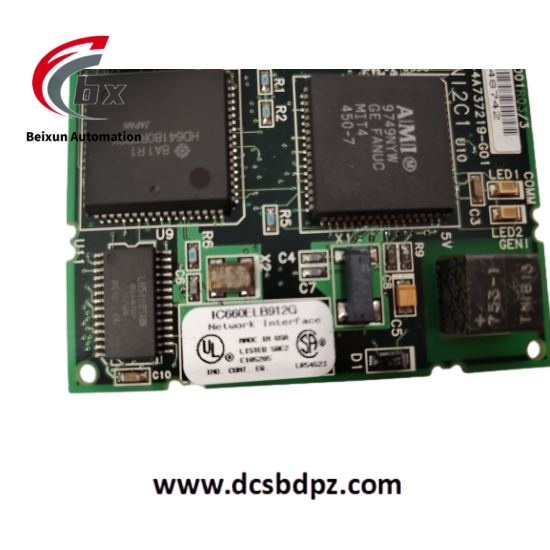

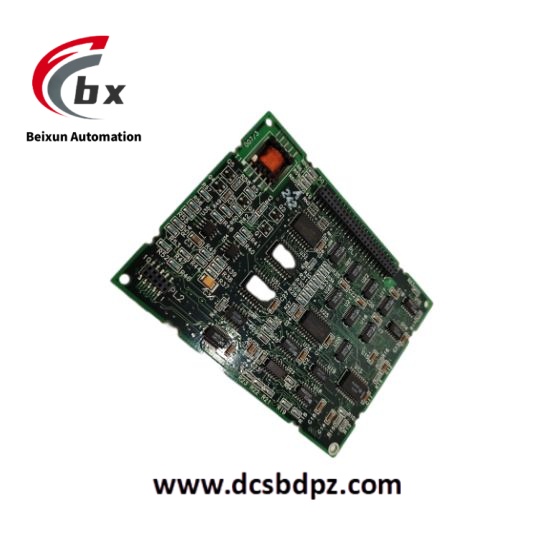

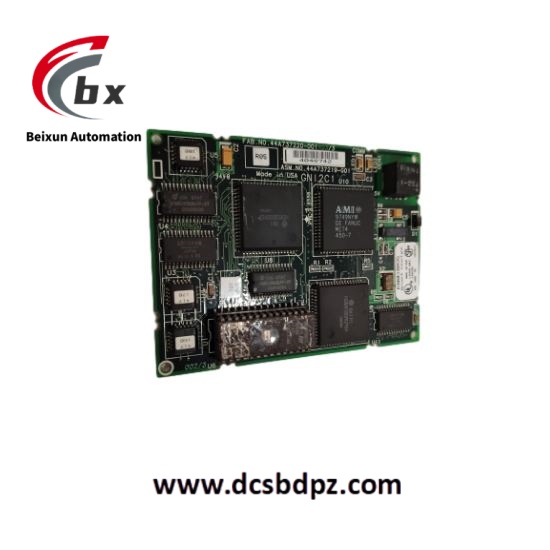

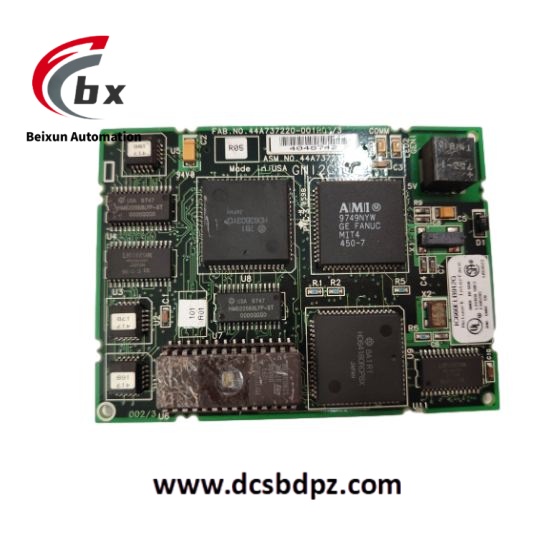

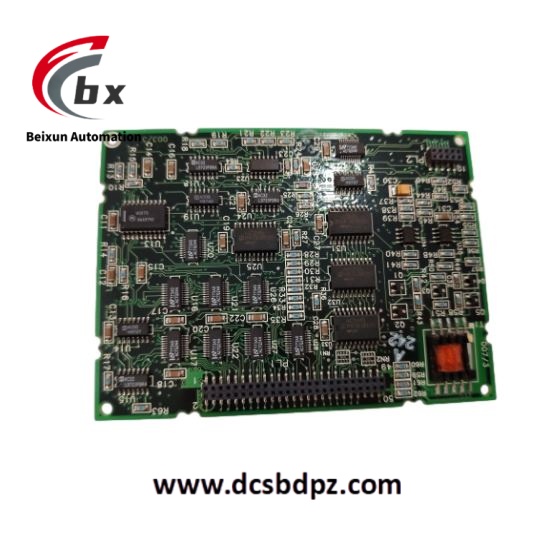

GE IC660ELB912G Genius network interface module

Specific parameters
Electrical parameters: Working voltage is DC 24V ± 10%; The power requirement is 5V DC, 400mA.
Communication parameters: Supports communication baud rates of 38.4K, 76.8K, 153.6K (standard) or 153.6K (extended), and can control up to 30 bus devices.
Interface type: Genius bus interface, some models can be optionally equipped with protocol interfaces such as Profibus and EtherNet/IP.
Environmental parameters: The working temperature ranges from -40 ° C to+70 ° C, and the protection level is IP20 (requiring cabinet protection).
Physical dimensions: 100mm x 100mm x 50mm (DIN rail installation).

Product Performance
Communication Capability: Optimized specifically for GE Genius bus, supporting plug and play access, capable of point-to-point or multi node communication, supporting 5Mbps transmission rate (Genius standard), ensuring low latency response of control instructions and feedback signals. It can also achieve real-time conversion between Genius and other protocols (such as Modbus), expanding the access capability of non Genius devices.
Reliability design: Supports network redundancy configuration (such as dual bus hot standby) to ensure seamless switching in case of communication link failure. Built in anti vibration/electromagnetic interference (EMC/EMI) design, in compliance with IEC 61131-2 industrial standard, with built-in error checking and timer functions to prevent data transmission interruption, in compliance with IEC 61508 SIL 2 safety standard, suitable for high-risk scenarios.
Convenient diagnosis and maintenance: Real time display of communication status (such as GENI OK, COMMS OK) through LED status indicators, quick fault location, support for remote monitoring and firmware upgrades, and reduce maintenance costs.
